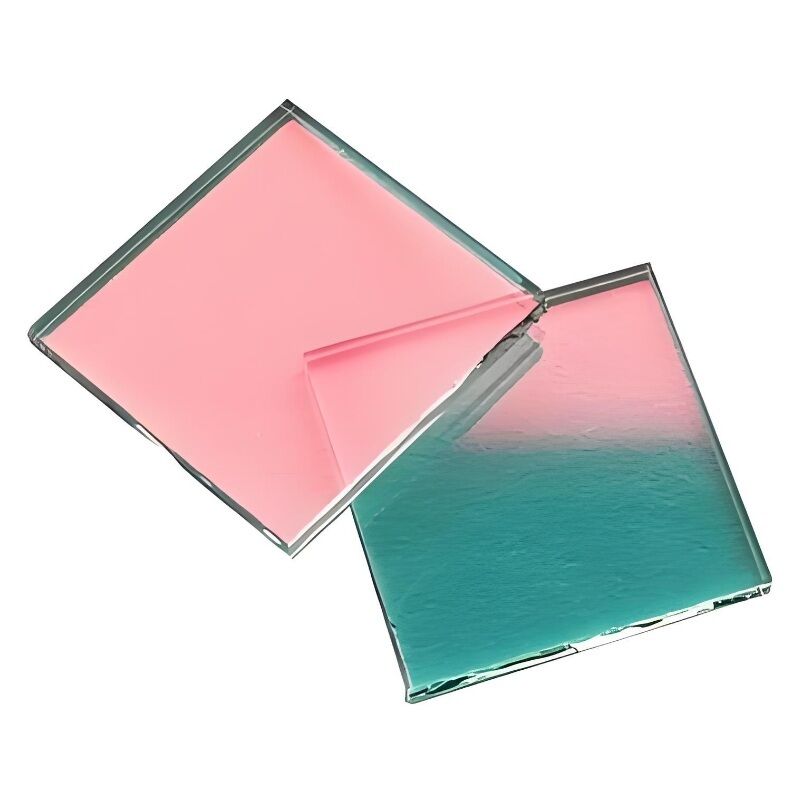

650nm Optical Filter Features Infrared Suppression For RGB Color Image Sensors

650nm Optical Filter Features Infrared Suppression For RGB Color Image Sensors

650nm Optical Filter

Infrared Suppression Optical Filter

RGB Color Image Sensors Optical Filter

Brand Name:

Chippack

Chat Now
Request A Quote
Product Details
Type:
Filter
Band:
650±10nm
Thickness Size:
0.21mm/0.5mm/1mm
Size:
Supports Rapid Sample Customization
Highlight:

650nm Optical Filter

,

Infrared Suppression Optical Filter

,

RGB Color Image Sensors Optical Filter

Payment & Shipping Terms
RELATED PRODUCTS
CONTACT US
Product Description

The 650nm optical filter features strong infrared suppression and is compatible with RGB color image sensors .



I. Core Basic Introduction:



1. Definition: Based on optical coating technology, a multi-layer dielectric film is formed on an optical substrate to achieve a steep cutoff at 650nm wavelength, separating the target wavelength band from the interference wavelength band, and eliminating the "narrow passband" characteristic of narrowband filters;



2. Substrate and Process: The mainstream substrates are optical glass (cost-effective), quartz (high stability), and sapphire (wear-resistant); vacuum magnetron sputtering coating is used, resulting in a dense film layer and stable performance;



3. Core Applications:

  • Short-wavelength 650nm cutoff: Suppresses near-infrared stray light, adapting to visible light imaging (such as outdoor QR code scanning, avoiding interference from 700nm+ infrared light sensors);
  • Long-wavelength 650nm cutoff: Retains near-infrared/red light, used for NIR imaging, laser ranging, and bio-detection (such as in QR code scanning scenarios with 650nm+ laser light sources);
  • Application scenarios: vehicle-mounted imaging equipment, digital imaging products, security cameras, access control and face recognition devices, code-scanning vision and barcode reading cameras, etc.

4. Size Adaptation: Standard sizes include 4mm×4mm, 8mm×8mm, etc., and can be customized to fit the optical path and structural space of camera modules.



II. Customized Services (Meeting Customer Needs for Different Wavelengths and Specifications):



1. Wavelength Customization:

  • In addition to 650nm, short-pass/long-pass filters with any cutoff wavelength, such as 850nm and 940nm, can be customized.
  • Composite cutoff solutions" can be customized (e.g., simultaneously cutting off 650nm+ and 400nm-, retaining the intermediate visible light region).

2. Specification Customization:

       · Size and Shape: Round, square, minimum size 1mm×1mm, thickness can be adjusted as needed (e.g., 0.21mm, 0.5mm, 1mm);

  • Base Material: Optical glass (cost priority), quartz (high stability), sapphire (wear-resistant);
  • Mounting Adaptation: Added adhesive steps, anti-reflective coating, suitable for snap-on and adhesive-bonded camera module installation.

3. Customized Special Functions:

  • UV-cut composite coating, anti-glare treatment, waterproof and anti-fog coating;
  • film reinforcement solutions adapted to extreme environments (such as high temperature, high humidity, strong vibration).
