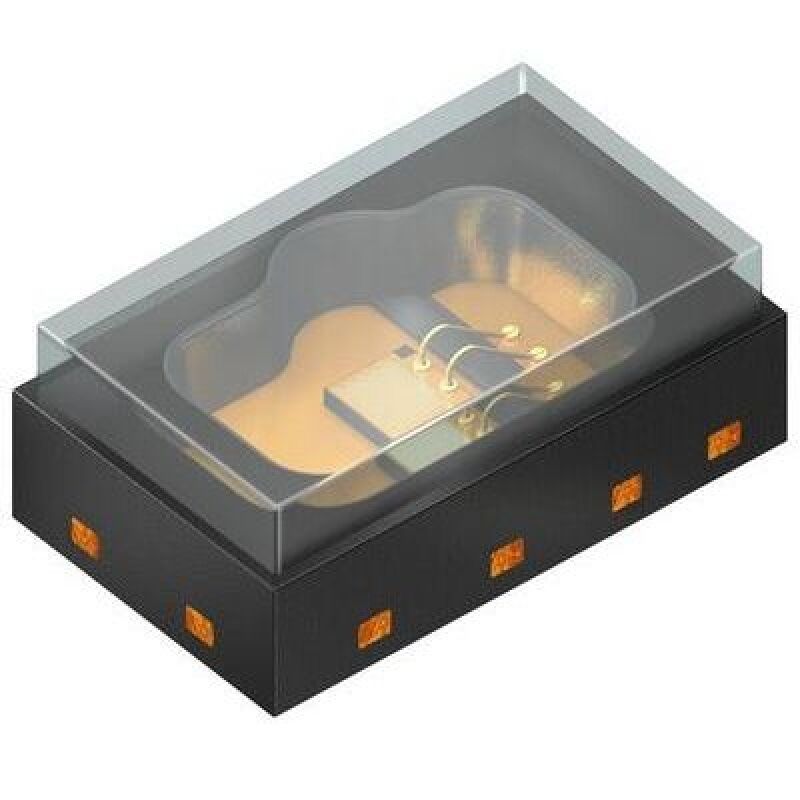

Custom MEMS Sensors Packaging For Consumer Electronics / Industrial Inspection

Packaging of MEMS sensors , applied in consumer electronics , industrial inspection and other fields .

- Optical and optoelectronic MEMS sensors, with their advantages of miniaturization and integration, are widely used in consumer electronics, autonomous driving, industrial inspection, medical imaging, and other fields. The core performance of these sensors is directly related to optical signal transmission and optical path stability. Different types of products have significantly different optical characteristics and operating environments, making standardized packaging insufficient to meet individual needs. Therefore, customized packaging is crucial to ensuring their performance.

- The core principle of customized packaging for optical and optoelectronic MEMS sensors is "adapting optical characteristics + matching application scenarios." This means designing the packaging structure, selecting transparent materials, and choosing sealing processes specifically based on the sensor's light receiving/emitting requirements, operating wavelength, and environmental tolerance requirements. The following are typical customization directions for different types of products:

1. MEMS Micromirrors (used in LiDAR, micro projectors): The core requirements are "precise optical path + structural stability." Custom packaging must ensure the deflection freedom of the micromirror while strictly controlling the optical coaxiality within the package. Metal or ceramic packages with high-transmittance windows can be used, with the window material selected to match the operating wavelength (e.g., infrared, visible light) to reduce light loss. Vacuum packaging technology reduces the impact of air resistance on the high-speed deflection of the micromirror, improving scanning accuracy and response speed.

2. MEMS Spectral Sensors: The focus is on "narrow-band transmission + low interference." Depending on the sensor's detection wavelength range (e.g., ultraviolet, visible, near-infrared), the transmission window of the custom package can be coated with a special filter film to achieve high transmission and stray light cutoff for specific wavelengths. Sealed ceramic LGA packaging avoids interference from external dust and moisture on the optical detection path, while precise wire bonding design reduces the impact of circuit noise on the photoelectric signal.

3. MEMS Photodetectors (e.g., miniature photodiode arrays): The core requirements are "high transmittance + efficient heat dissipation." Custom packaging can utilize high-transmittance sapphire or optical glass as the window material to ensure efficient light signal incidence. For high-power operating scenarios, metal substrate packaging enhances heat dissipation, preventing temperature rise from affecting photoelectric conversion efficiency. Simultaneously, a lightweight structure is designed to adapt to miniaturized applications such as wearable devices and micro-detection instruments.

- In summary, the customized packaging of optical and optoelectronic MEMS sensors must be closely integrated with the product's optical characteristics and application scenarios. Through customized design, including selection of transparent materials, optimization of optical paths, and adaptation of sealing processes, the optical performance can be maximized, facilitating the implementation of various high-precision optical applications.
