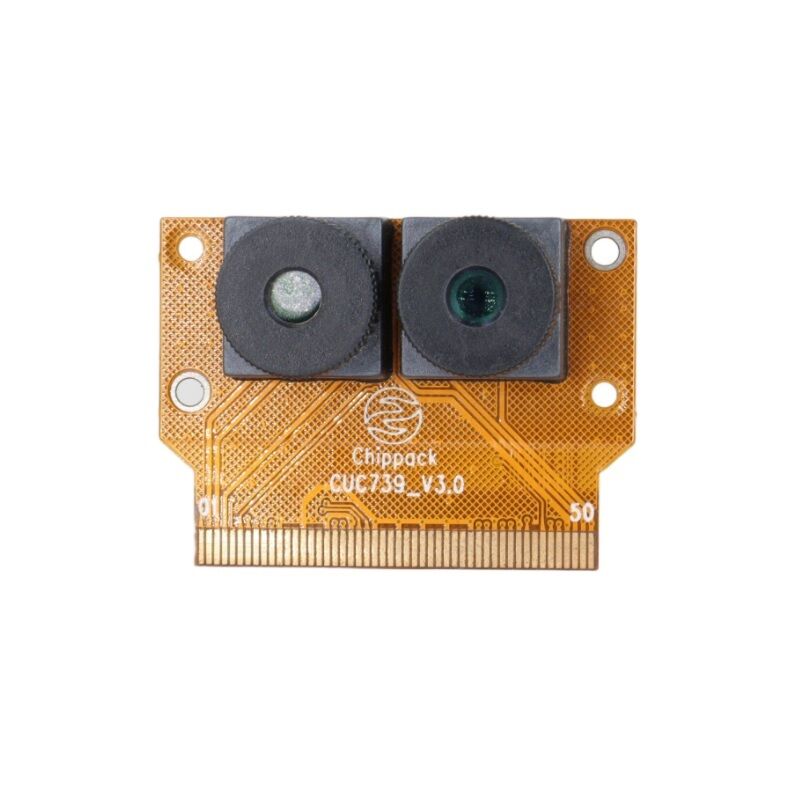

73 Perspective DVP Camera Module MONO IR / RGB Rolling Shutter 2 MP With OV2710 Sensor

2MP MONO - IR / RGB Rolling Shutter 73 Perspective DVP Camera Module With OV2710 Sensor , Customization Services Available .

1.Basic Parameters:

- Resolution: 1920 (H) x 1080 (V), 2 MP; supports multiple frame rate outputs; enables high-speed imaging in crop mode; dual sensors simultaneously output two HD images with zero frame delay or loss.

- Pixel dimensions: 3.0 μm (H) × 3.0 μm (V), utilizing the OmniPixel®3-HS patented imaging technology. The larger pixel size enhances light intake per pixel, significantly improving image quality in low-light conditions.

- Optical format: 1/2.7-inch, compatible with standard lens mounts; features a built-in dual-filter switching mechanism for independent optical acquisition via separate optical paths.

- Power supply voltage: The core voltage is 1.5 V, the interface voltage is 1.8 V, and the analog voltage is 3.3 V, enabling stable operation under various voltage conditions and ensuring sensor reliability.

- Temperature range: The operating temperature spans from 0°C to 60°C, providing a wide temperature range suitable for diverse operational environments.

2.Technical Features:

- Curtain shutter technology: Utilizes a line-by-line exposure curtain shutter design, delivering low imaging noise and fine detail reproduction, along with high circuit integration, optimized power consumption, and cost efficiency, making it ideal for high-definition imaging in static or low-speed scenarios. - Incorporates OmniPixel®3-HS imaging technology, significantly enhancing infrared light absorption and featuring a black sun elimination algorithm that effectively suppresses light spots and blur caused by direct strong illumination, ensuring performance in complex lighting conditions such as outdoor backlighting and headlight exposure. Equipped with an on-chip phase-locked loop (PLL) eliminating the need for external clock circuits and simplifying peripheral design; includes a disposable programmable OTP memory enabling separate calibration of white balance and exposure parameters for each sensor channel, tailored to their respective dual-infrared spectral characteristics to ensure consistent image quality across both channels.

- Utilizing integrated design saves internal installation space for equipment, simplifies the overall structural wiring, and reduces development and assembly costs.

- OV2710 Camera Module: Compatible with various lens configuration standards including 73, meeting diverse customer requirements.

3. Application Areas:

Used in biometrics, drones, smart homes, IoT devices, machine vision, barcode scanning, factory automation, and other fields.

4. Personalized Customization Service:

The modular design enables tailored production based on customer specifications, delivering customized solutions that meet specific needs.
