Automated Precision SMT Testing For Microelectronics Supporting Industries

Core technical advantages of SMT , applied in fields such as high - end microelectronics supporting industries .

SMT focuses on the core business of chip mounting processing for semiconductor chips and packaging of various sensors. Relying on a mature automated production system and self-developed process technologies, it has built core technical advantages featuring high precision, high stability and high compatibility.

I. Technical Features:

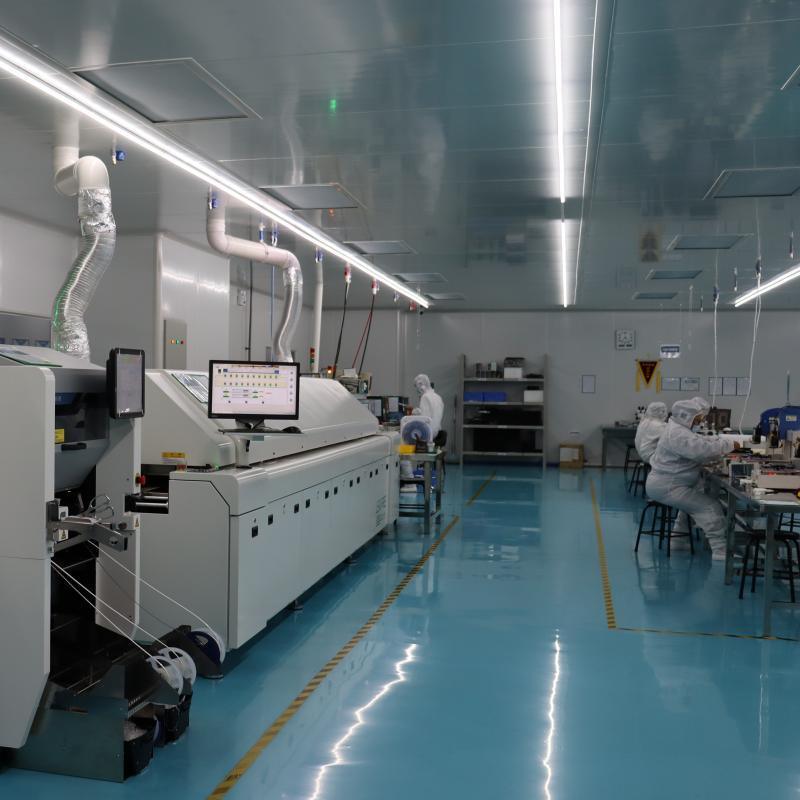

1. Automated precision production processes. The workshop is equipped with a full set of fully automatic SMT production equipment to realize accurate mounting of micro-components. It can stably process tiny components such as precision chips and sensor modules, effectively eliminating errors caused by manual operation and greatly improving mounting accuracy and production consistency. Meanwhile, full-process testing equipment including 3D SPI solder paste inspection and AOI automatic optical inspection is deployed to strictly control the product defect rate from the source of production and ensure stable quality of products across batches.

2. Self-developed core processes and accumulated technologies. Having been deeply engaged in the microelectronics industry for many years, the company holds multiple independent patented technologies covering image sensor chip packages, micro-module interconnection processes, power device chip mounting and more. It is also equipped with self-developed supporting systems such as MEMS micro-electromechanical energy consumption signal processing systems and intelligent temperature & humidity testing systems, which can tackle process challenges arising during the mounting and packaging of semiconductors and sensors in a targeted manner.

3. Fully controllable end-to-end production system. Standardized and formalized production control procedures are established in the workshop. A fully electric feeder feeding system is adopted to ensure smooth transportation of various precision components and reduce component loss, meeting the requirements of mass continuous production. In addition, a complete material traceability and production early warning mechanism is established. The equipment monitors operating status in real time, predicts production abnormalities in advance, and avoids issues such as material waste and production stagnation. The entire production process is fully visual and traceable, balancing production efficiency and quality control, and effectively cutting production costs and rework rates.

4. Professional reliability testing capability. The workshop is furnished with complete reliability testing equipment capable of conducting various reliability examinations including temperature and humidity testing and stability aging testing. The production processes are optimized to adapt to complex service scenarios of microelectronic devices, enhancing products’ resistance to high temperature, corrosion and interference. The finished mounting and packaging products can adapt to various harsh working conditions and meet the quality standards for high-end electronic components.

II. Application Fields:

The products are applied in sensing detection, consumer electronics, industrial control, the Internet of Things, high-end microelectronics supporting sectors and other fields.

III. Customized Services:

Upholding the philosophy of customized and one-stop services, we provide full-process personalized customized services to meet differentiated demands of various customers and scenarios. We support prototype trial production, small-batch customization, mass production and other requirements, flexibly accommodating customers’ diversified order scenarios.
