Brand Name:
Chippack
Model Number:
OV5640

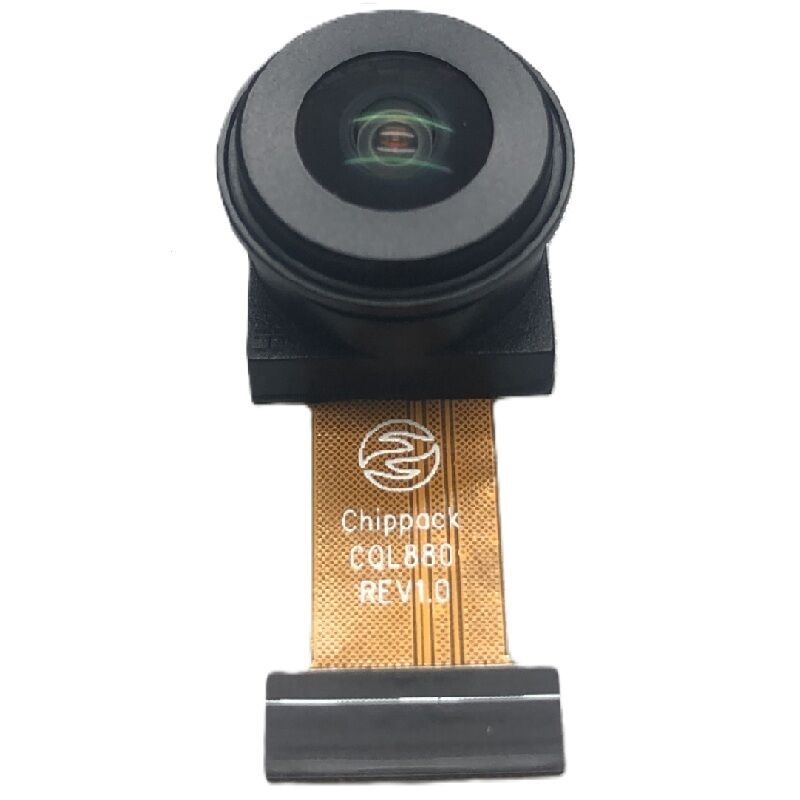

OV OV5640 RGB Rolling Shutter Camera Module , Machine Vision , Biometrics , QR Code , Customization Services Available .
1. Basic Parameters:
The OVT OV5640 is a 1/4-inch 5-megapixel CMOS image sensor from OmniVision. Its core advantages include high cost-effectiveness, integrated design, flexible interfaces, and low power consumption. It is suitable for mobile devices, embedded development, and security applications, representing a mature, low-cost imaging solution at the 5MP level. Its core features are as follows:
2. Technical Features:
Core Imaging and Pixel Design
• Pixels and Resolution: 5 million effective pixels (2592×1944), 1.4μm×1.4μm pixel size, 1/4-inch optical specifications, balancing resolution and light sensitivity.
• Back-illuminated Technology: Utilizes OmniBSI back-illuminated architecture to improve light collection capabilities, reduce crosstalk and noise, and enhance low-light imaging performance.
• Color and Image Quality: Equipped with an RGB primary color mosaic filter for natural color reproduction; built-in defect pixel correction, noise reduction, and anti-ghosting enhance image purity.
Frame Rate and Image Processing
• Flexible Frame Rates: 15fps at full resolution (2592×1944), 30fps at 1080p, 60fps at 720p, and 120fps at QVGA, adaptable to both static and dynamic scenes.
• Integrated ISP Functionality: Built-in JPEG compression engine reduces bandwidth; supports 8/10-bit RAW, RGB, YUV, and other formats; SCCB (I2C compatible) programming controls auto exposure (AEC), auto white balance (AWB), gamma correction, etc., simplifying development.
• Low-Light Enhancement: Supports 2×2 pixel binning for improved low-light sensitivity; dynamic range up to 68dB, signal-to-noise ratio 36–46dB, adaptable to complex lighting environments.
Interfaces and Power Consumption
• Dual Interface Support: DVP parallel and dual-channel MIPI CSI-2, adaptable to different main controllers and bandwidth requirements, compatible with embedded development boards and mobile platforms.
• Low-power architecture: Operating voltage 2.7V–3.6V, supports multiple energy-saving modes, suitable for battery-powered devices such as drones and smart glasses.
• Miniaturized packaging: 1/4-inch optical specifications facilitate a thin and light module design, simplifying peripheral circuitry and reducing design complexity and cost.
Focusing and design advantages
• Flexible focusing solutions: Supports autofocus (AF) and fixed focus, adapting to different precision requirements, such as face recognition and industrial inspection.
• Stability and durability: Built-in image stabilization engine improves video stability; SMT+AA precision manufacturing process ensures batch consistency, and steel-reinforced FPC enhances durability.
• Cost-controllable: High integration simplifies peripheral circuitry, and a mature supply chain reduces bulk procurement costs, suitable for consumer electronics and embedded mass production projects.
3. Application areas:
Video doorbells, smart door locks, baby monitors, smart home cameras, home security monitoring, etc.
4. Personalized customization services:
Customized modules can be produced according to customer needs, tailoring products to meet specific requirements.
