SONY IMX335 USB Camera Module RGB Rolling Shutter 2592x1944 For Machine Vision

SONY IMX335 USB Camera Module RGB Rolling Shutter 2592x1944 For Machine Vision

SONY IMX335 Camera Module

RGB Camera Module 2592x1944

Machine Vision USB Camera Module

Brand Name:

Chippack

Model Number:

IMX335

Chat Now
Request A Quote
Product Details
Sensor Type:
IMX335
Sensor Brand:
Sony
Active Array Size:
2592*1944
Pixel Size:
2.0um*2.0um
Optical Format:
1/2.8″
Power:
5V
Shutter:
Roller Shutter
Color:
RGB
Focus Mode:
Fixed Focus Or Auto Focus
Max Frame Rates:
30fps
Data Interface:
USB 2.0
Camera Size:
Supports Rapid Sample Customization
FOV:
DFOV:20°-180°(Optional Or Customized)
IR Filter:
Clear/650nm/850nm/940nm(Optional Or Customized)
Highlight:

SONY IMX335 Camera Module

,

RGB Camera Module 2592x1944

,

Machine Vision USB Camera Module

Payment & Shipping Terms
Product Description

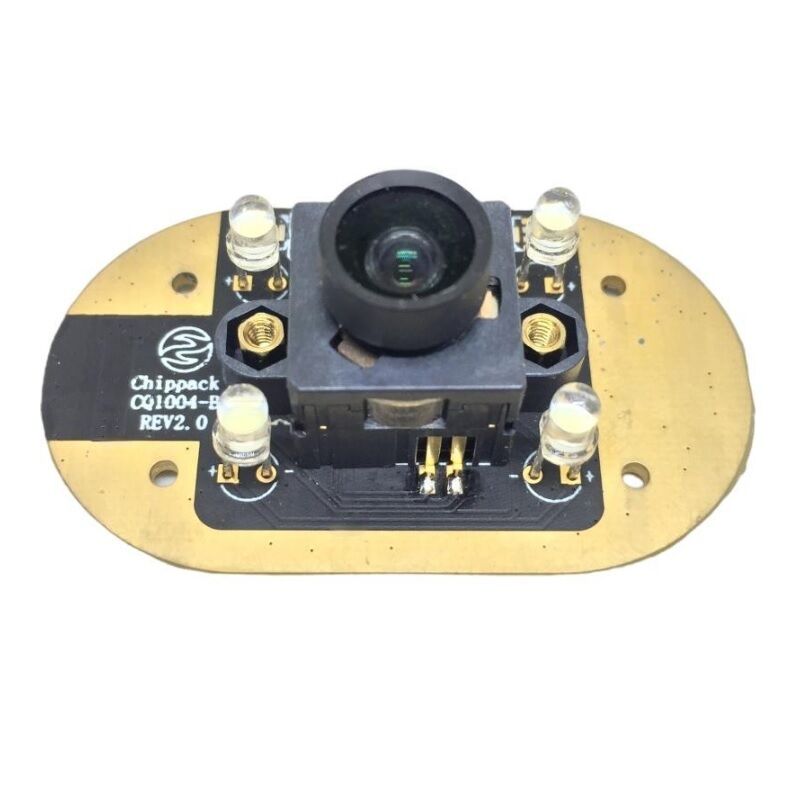

        The IMX335 USB 2.0 camera module is a camera product based on the Sony IMX335 image sensor. Below is its basic introduction and features:



Basic Introduction:

  • Image Sensor: Utilizes the high-performance Sony IMX335 CMOS image sensor, featuring 5 megapixels and a resolution of 2592×1944.
  • Interface Type: Equipped with a USB 2.0 interface, supporting the UVC (USB Video Class) standard, enabling plug-and-play functionality and compatibility with multiple operating systems including Windows, Linux, Mac OS, and Android. It also uses an I²C interface for register communication.
  • Lens Parameters: Different types of lenses can be configured according to customer needs.
  • Size: Compact design for easy integration into various devices.
  • Operating Voltage and Temperature: Operating voltage is typically 5V±5%, and the operating temperature range is -10°C to 60°C.

Features:

  • High Resolution: 5-megapixel resolution enables the capture of clear and detailed images and videos, suitable for scenarios with high image quality requirements, such as industrial inspection and security monitoring.
  • Wide Dynamic Range: Supports Wide Dynamic Range (WDR) technology, maintaining image detail and quality in high-contrast scenes, such as environments with both strong light and shadow, clearly capturing object details.
  • Excellent Low-Light Performance: Utilizes Sony's STARVIS technology, featuring high sensitivity, capturing clear images even in low-light environments without the need for additional strong light sources.
  • Wide-Angle Photography: Some modules are equipped with wide-angle lenses, offering a field of view of up to 175°, covering a large area and reducing blind spots, suitable for scenarios requiring large-area monitoring.
  • Driver-Free Design: Supporting the UVC standard, this camera module requires no additional drivers; simply connect it to a device via USB cable for easy operation and a lower barrier to entry. - **Strong compatibility**: Compatible with motherboards such as Raspberry Pi and Jetson series, as well as various operating systems, and widely used in industrial vision, security monitoring, smart home, and advertising all-in-one machines.
