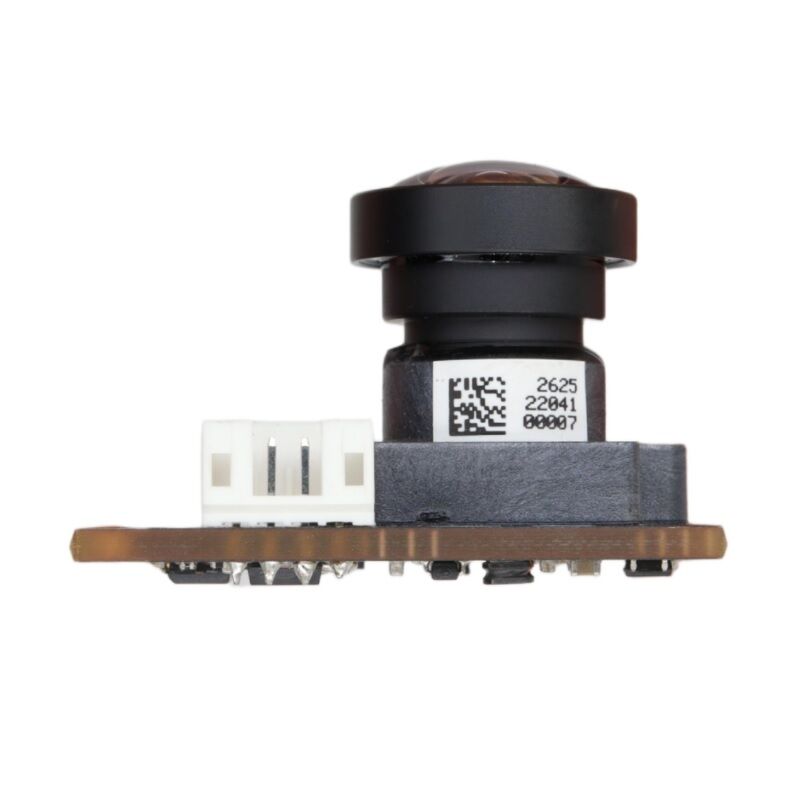

RGB Rolling Shutter 103 Degree View Camera Module IMX415 Sensor 8.29 MP Customized

8.29 MP RGB Rolling Shutter 103 - degree view Camera Module IMX415 Sensor For Machine Vision , Customization Services Available .

1.Basic Parameters:

- Resolution: 3840 (H) × 2160 (V), 8.29 MP; natively supports 4K UHD ultra-high-definition video output while being compatible with multiple resolutions including 1080P and 720P, meeting diverse imaging requirements across various scenarios.

- Pixel dimensions: 1.45 μm (H) × 1.45 μm (V). The optimized pixel aperture ratio enhances individual pixel sensitivity while reducing image noise and color distortion.

- Optical format: 1/2.8-inch optical specifications with a sensor diagonal size of 6.43 mm, compatible with mainstream M12 and M8 lenses on the market. The compact module facilitates integration into various miniaturized vision devices.

- Power supply voltage: The operating voltage is 5V, ensuring stable performance under appropriate voltage conditions and guaranteeing sensor reliability.

- Temperature range: The operating temperature spans from-10°C to 60°C, offering a wide temperature range that accommodates various working environments.

2.Technical Features:

- Curtain shutter technology: Featuring a line-by-line exposure curtain shutter design, it delivers low imaging noise and fine detail reproduction, with high circuit integration, optimized power consumption, and cost efficiency, making it ideal for high-definition imaging in static or low-speed scenarios.

- Utilizing Exmor R back-illuminated and STARVIS星光夜视 technologies—Sony's proprietary back-illuminated CMOS sensor architecture—which significantly enhance light intake, enabling clear, blur-free images even under extremely low illumination conditions (0.1 lux) without requiring additional lighting. The nighttime infrared imaging performance is exceptional, completely resolving issues of image darkening and blurring in low-light environments.

- Optimized pixel circuit manufacturing process significantly reduces sensor dark current, preventing image noise accumulation during prolonged recording. The integrated 10-bit high-precision ADC delivers enhanced color sampling depth, preserving full tonal details—no overexposure in bright areas and rich depth in shadows—with precise color reproduction. High-quality raw image data is output without requiring additional external image processing chips.

- IMX415 Camera Module: Compatible with various lens configuration standards including 103, meeting diverse customer requirements.

3. Application Fields:

Used in biometrics, drones, smart homes, IoT devices, machine vision, barcode scanning, factory automation, and other applications.

4. Personalized Customization Services:

The modular design enables tailored production based on client specifications, delivering customized solutions that precisely meet individual needs.
