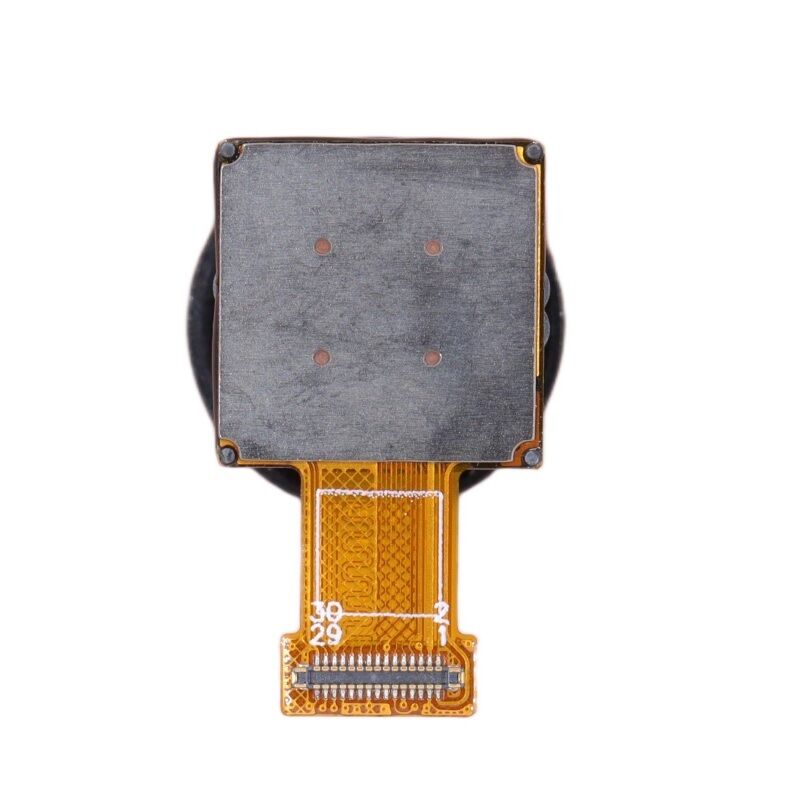

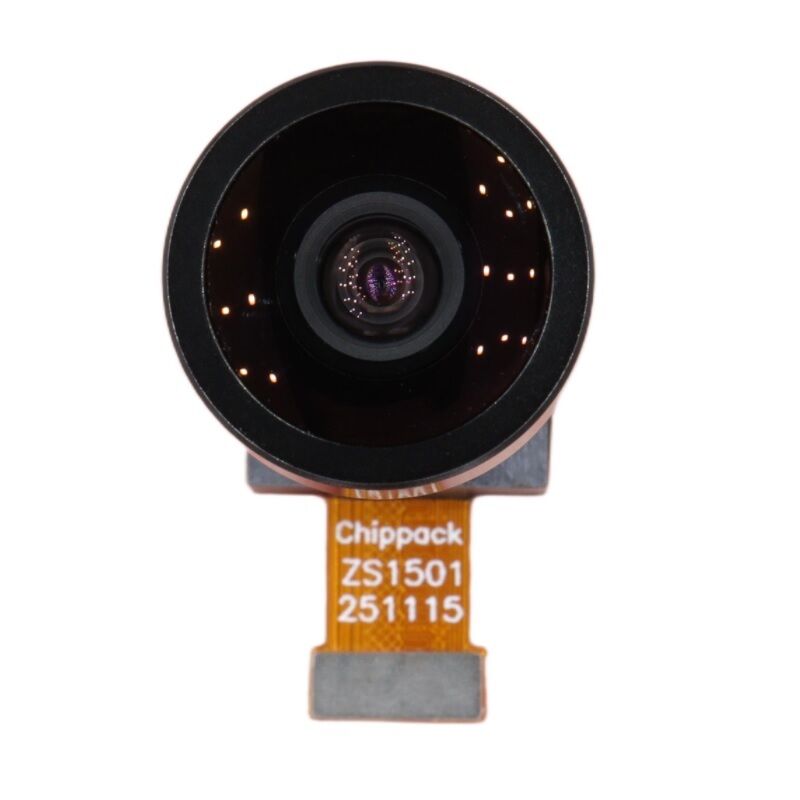

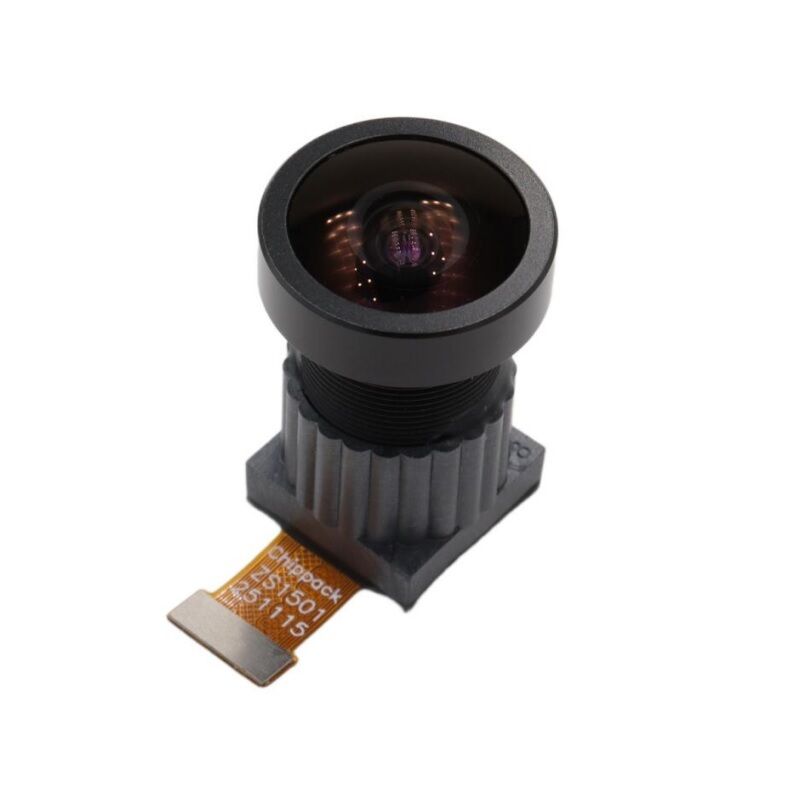

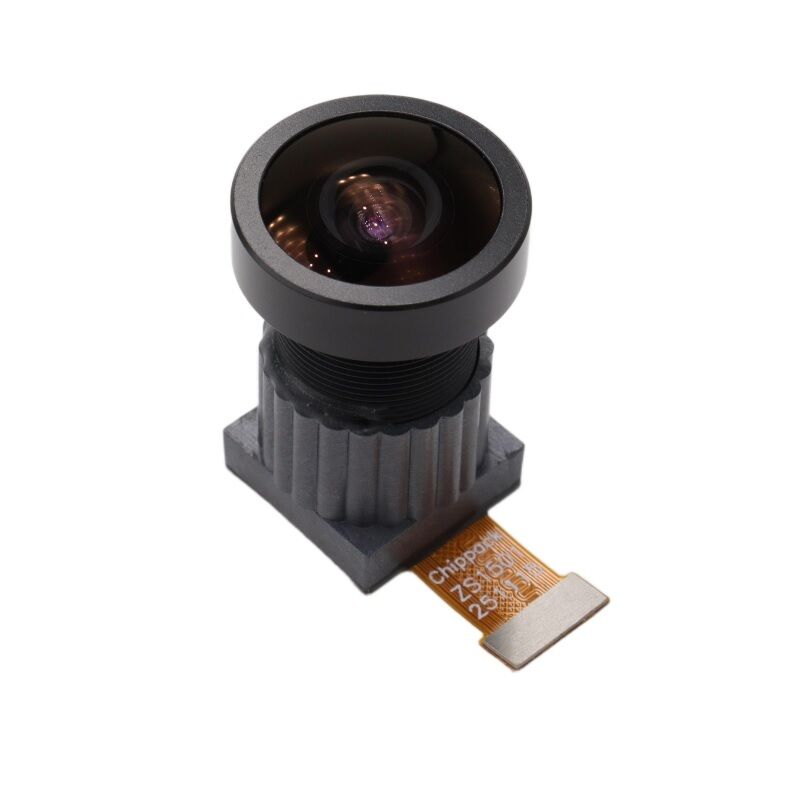

5.08 MP MONO Global Shutter 155 Perspective MIPI Camera Module With VD5943 Sensor

5.08 MP MONO Global Shutter 155 Perspective MIPI Camera Module With VD5943 Sensor

1. Basic Parameters:

‑ Resolution: 2560 (H) x 1984 (V), 5.08MP, native high‑definition imaging resolution with excellent imaging capability, meeting the imaging requirements of mid‑to‑high‑end machine vision applications.

‑ Pixel Size: 2.25μm (H) x 2.25μm (V). Combined with an advanced pixel architecture, it supports imaging under low‑light and complex‑lighting conditions.

‑ Optical Format: 1/2.5‑inch, a standard industrial optical imaging format. It is compatible with conventional industrial lenses and optical path designs of vision modules, supports imaging in visible‑light and near‑infrared bands, and works with various types of equipment.

‑ Supply Voltage: Core voltage 1.15V, interface voltage 1.8V, analog voltage 2.8V. It can operate stably under diverse voltage conditions to ensure sensor reliability.

‑ Temperature Range: Operating temperature ranges from ‑30℃ to 85℃. Its wide operating temperature range enables adaptation to various working environments.

2. Technical Features:

‑ Global Shutter Technology: Innovatively integrates dual‑mode global shutter and rolling shutter, enabling intelligent imaging‑mode switching according to application scenarios. The global shutter mode delivers full‑frame synchronous exposure, completely eliminating motion blur and distortion when capturing fast‑moving objects, and is suitable for high‑speed snapshot and dynamic‑scanning scenarios. The rolling shutter mode reduces device power consumption for static‑scene and low‑power‑consumption battery‑life scenarios, balancing imaging performance and energy‑saving requirements.

‑ The chip integrates multiple practical functions, including image cropping, subsampling, pixel binning, multi‑exposure, and image data statistics. It features 4 built‑in GPIO channels that support multi‑mode triggering, scenario management and brightness‑control output, enabling precise synchronous linkage of multiple devices. Built on low‑power‑consumption process technology and equipped with a near‑infrared‑light‑source‑adapted low‑power imaging mode, it greatly reduces system power consumption compared with similar products, and is applicable to battery‑powered portable devices and embedded terminals.

‑ VD5943CE Camera Module: Compatible with standard modules with diverse lens configurations such as 155°, to satisfy varied customer requirements.

3. Application Fields:

Applicable to virtual reality / augmented reality, biometric identification, drones, smart home, IoT devices, 3D imaging, machine vision, barcode scanning, factory automation and other industries.

4. Personalized Customization Service:

Custom modules can be produced per customer requirements to deliver tailor‑made products matching customer‑specific needs.
