VD65G4 RGB ST Sensor Global Shutter I3C SPI Camera Module for Machine Vision

ST VD65G4 RGB Global Shutter I3C SPI Camera Module , Machine Vision , AR / VR , QR Code , Customization Services Available .

1. Basic Parameters:

- Resolution: 804 (H) x 704 (V), 0.56MP. The VD65G4 integrates STMicroelectronics' industry-leading pixel technology, ultra-low power consumption, and advanced processing capabilities, making it an ideal sensor choice for next-generation embedded vision systems and smart devices.

- This device is the world's first sensor to utilize 2.16 µm global shutter pixel technology, offering exceptional compactness.

- Optical Format: 1/9 inch. With a sensor size of only 2.73 x 2.16 mm², it is suitable for devices with size constraints, such as AR/VR glasses or personal electronics.

- Supply Voltage: Core voltage 1.15V, interface voltage 1.8V, analog voltage 2.8V, enabling stable operation under various voltage conditions and ensuring sensor reliability.

- Temperature Range: Operating temperature range of -30℃ to 85℃, providing a wide operating temperature range to adapt to different working environments.

2. Technical Features:

- Global Shutter Technology: The global shutter design effectively eliminates motion blur and illumination artifacts while reducing illumination power consumption.

- This Ultra-Low Power Solution: Features intelligent automatic wake-up, supports ultra-low power sleep mode, and intelligently wakes up upon event detection; power consumption is less than 2 mW in automatic wake-up mode; power consumption can be adjusted according to function, frame rate, and software standby state.

- The VD65G4 boasts advanced functions and features. For example, it supports high dynamic range (HDR) image capture, simultaneously capturing details in both bright and dark areas in high-contrast scenes. The sensor also supports various image processing functions such as automatic white balance, autofocus, and image noise reduction. These functions provide richer, more realistic image effects, enabling users to capture higher-quality photos and videos.

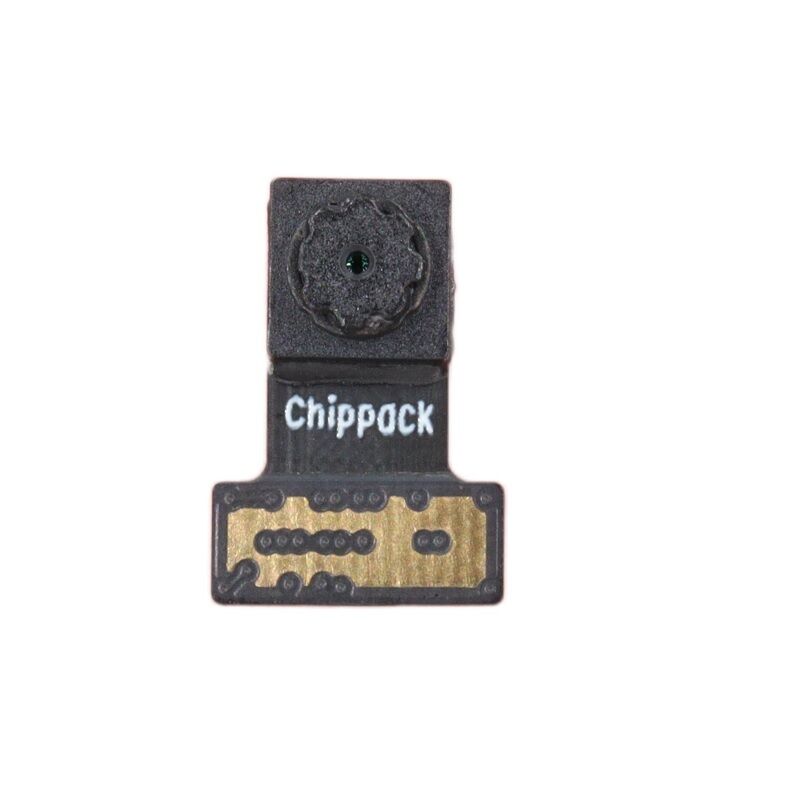

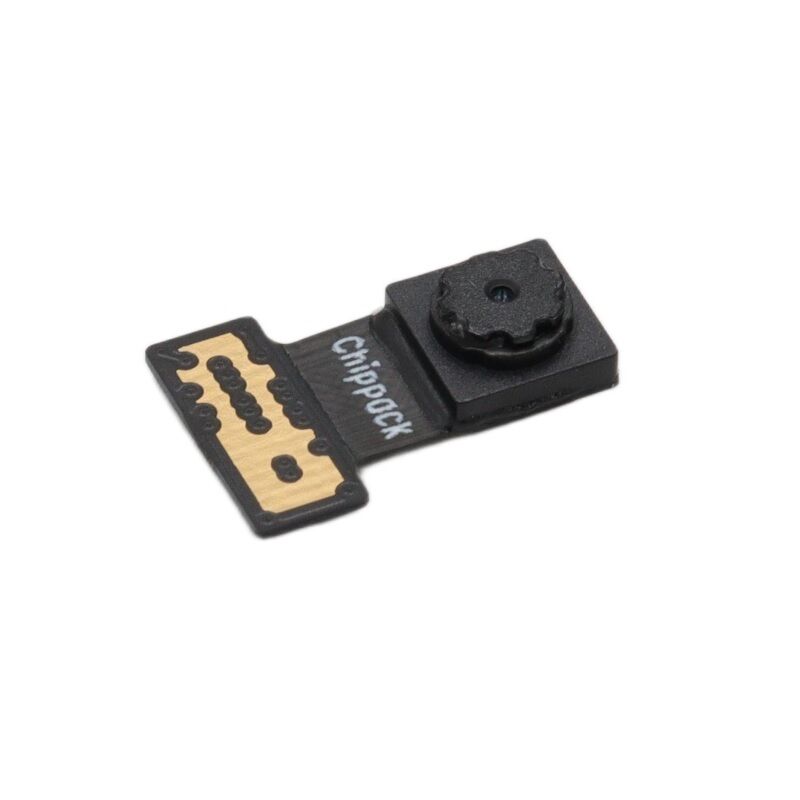

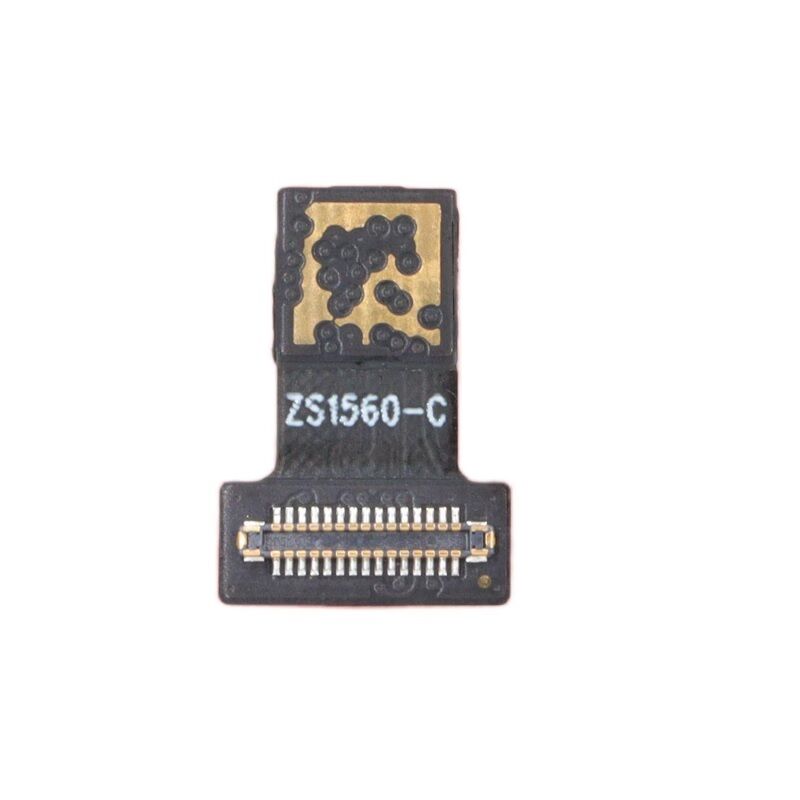

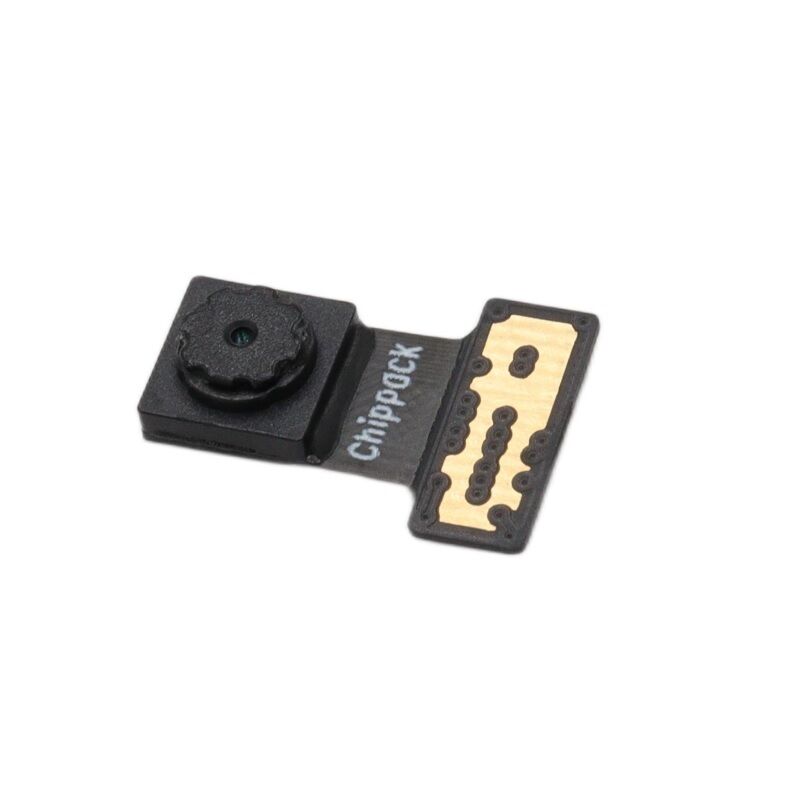

- VD65G4 RGB Camera Module: A standard module compatible with different lens configurations such as 179°, 160°, and 81°, meeting the needs of different customers.

3. Application Areas:

Applied to virtual reality/augmented reality, biometrics, drones, smart homes, IoT devices, 3D imaging, machine vision, barcode scanning, factory automation, and other fields.

4. Personalized Customization Services:

Custom modules can be produced to meet specific customer needs, creating products tailored to their individual requirements.
