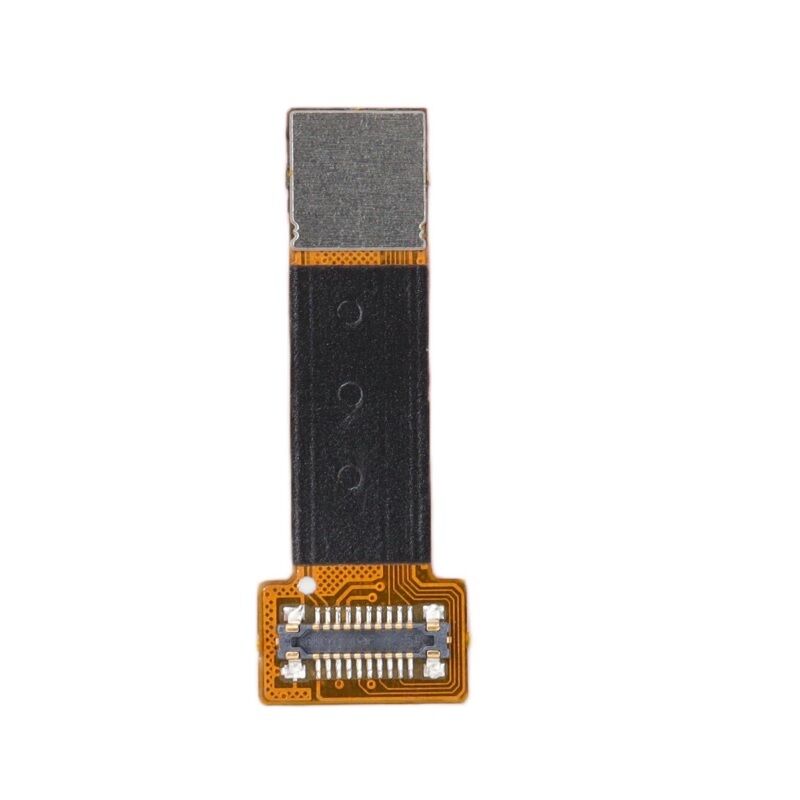

VD55G0 ST Sensor MONO Global Shutter Camera Module 644x604 for Machine Vision

ST VD55G0 MONO Global Shutter Camera Module , Machine Vision , AR / VR , QR Code , Customization Services Available .

1. Basic parameters:

- Resolution: 644 (H) x 604 (V), 0.38MP The device uses a three-dimensional stacked sensor, and the pixel structure minimizes crosstalk while achieving high quantum efficiency (QE) in the near-infrared spectrum.

- It uses 40 nm/65 nm technology, has 2.61 µm x 2.61 µm BSI pixels and full CDTI (capacitive deep trench), which is an excellent choice for high-performance imaging applications. .

- Optical format: 1/9 inch, the sensor measures only 1.67 x 1.57 mm², suitable for devices with large size restrictions such as AR/VR glasses or personal electronics.

- Supply voltage: The core voltage is 1.15V, the interface voltage is 1.8V, and the analog voltage is 2.8V. It can work stably under different voltage conditions, ensuring the reliability of the sensor.

- Temperature range: The operating temperature is -30℃ to 85℃, with a wide temperature operating range, which can adapt to different working environments.

2. Technical features:

- Global shutter technology: The global shutter design effectively eliminates motion blur and lighting artifacts, while reducing lighting power consumption requirements.

- VD55G0 supports automatic dark calibration, dynamic defect correction and mirror/flip readout functions, integrates temperature sensors, supports analog binning, 2x/4x binning and subsampling functions.

- VD55G0 adopts the third-generation advanced pixel technology, unique back-illuminated global shutter pixels, and uses STMicroelectronics chip stacking technology, which significantly improves product performance, size and system integration.

- Built-in programmable 4-frame context sequence control function, supporting intelligent algorithms such as automatic dark field calibration. It can correct imaging errors in real time, effectively avoid imaging defects caused by the environment and equipment wear, deliver highly consistent images during long-term operation, greatly reduce post-image processing costs, and feature high fault tolerance for equipment operation.

- VD55G0 camera module: compatible with standard modules with different lens configurations such as 158° and 79°; meet different customer needs.

3. Application areas:

Applied in virtual reality/augmented reality, biometrics, drones, smart homes, IoT devices, 3D imaging, machine vision, barcode scanning, factory automation and other fields.

4. Personalized customization service:

Customized modules can be customized according to customer needs to tailor products to meet customers' needs.
