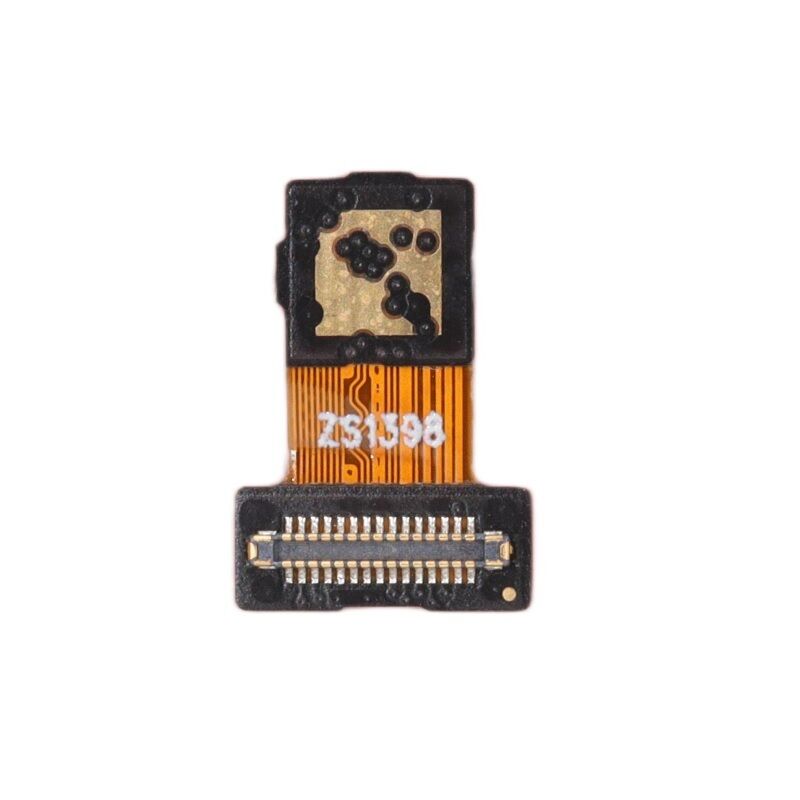

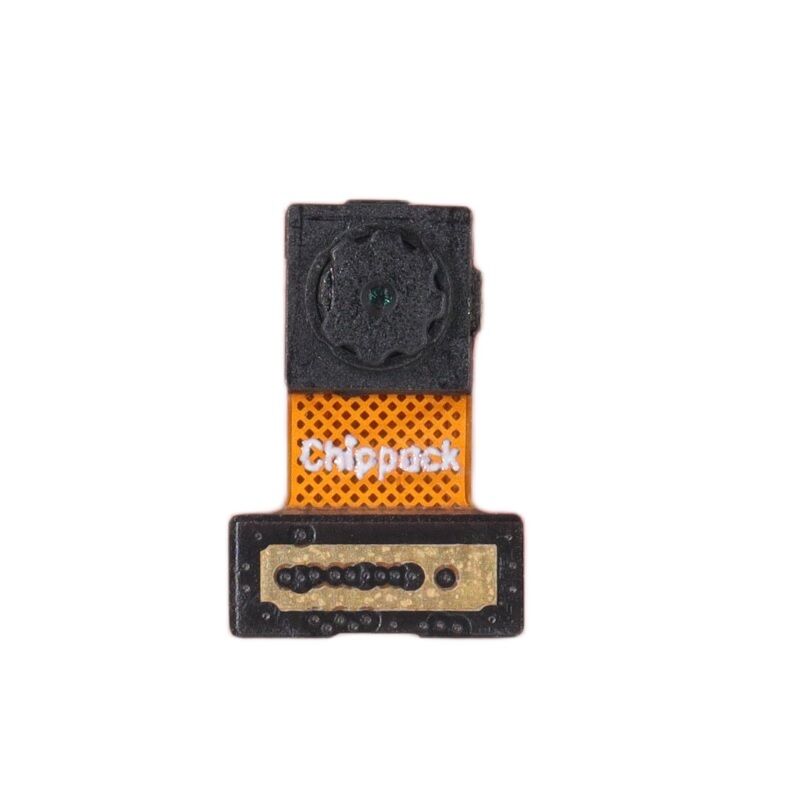

0.38 MP MONO Global 79.8 - Degree View Shutter Camera Module VD55G0 Sensor For Machine Vision

0.38 MP MONO Global 79.8 - Degree View Shutter Camera Module VD55G0 Sensor For Machine Vision

1. Basic Parameters:

‑ Resolution: 644(H)×604(V), 0.38MP. It delivers balanced and full‑bodied imaging, meeting high‑precision visual acquisition requirements for small‑to‑medium fields of view and fitting most lightweight vision application scenarios.

‑ Pixel Size: 2.61μm(H)×2.61μm(V). Equipped with a back‑illuminated photosensitive structure and deep trench isolation technology, it achieves high pixel photosensitivity and excellent noise control, effectively improving overall imaging sharpness and dynamic performance.

‑ Optical Format: 1/9‑inch. It supports optional wide‑angle and standard lenses, is compatible with various optical path designs, and offers flexible field‑of‑view adaptation to satisfy framing and mounting requirements of different devices.

‑ Supply Voltage: Core voltage 1.15V, interface voltage 1.8V, analog voltage 2.8V. It operates stably under various voltage conditions to guarantee sensor reliability.

‑ Temperature Range: Operating temperature ranges from ‑30℃ to 85℃. Its wide operating temperature range enables adaptation to diverse working environments.

2. Technical Features:

‑ Global Shutter Technology: The global‑shutter design effectively eliminates motion blur and illumination artifacts while lowering lighting power consumption requirements.

‑ Built‑in ultra‑low‑power detection and wake‑up architecture delivers outstanding power consumption performance, making it suitable for battery‑powered portable devices. It integrates on‑chip image processing functions including auto‑exposure, noise reduction, defect correction and pixel binning to optimize image quality without additional external chips. It supports high‑speed single‑lane MIPI CSI‑2 output as well as dual I²C/I3C control interfaces for fast connection with various embedded main controllers and MCUs, featuring strong compatibility.

‑ Optimized near‑infrared photosensitivity brings excellent quantum efficiency. It produces clear low‑light images with low noise, and supports high‑quality daytime imaging as well as low‑light and infrared‑aided imaging for strong environmental adaptability.

‑ VD55G0 MONO Camera Module: Standard modules compatible with lens configurations such as 79.8° are available to meet diverse customer requirements.

3. Application Fields:

Applied in virtual reality / augmented reality, biometric identification, drones, smart home, IoT devices, 3D imaging, machine vision, barcode scanning, factory automation and other fields.

4. Customization Services:

Custom modules can be produced according to customer requirements to deliver tailor‑made products matching specific demands.
