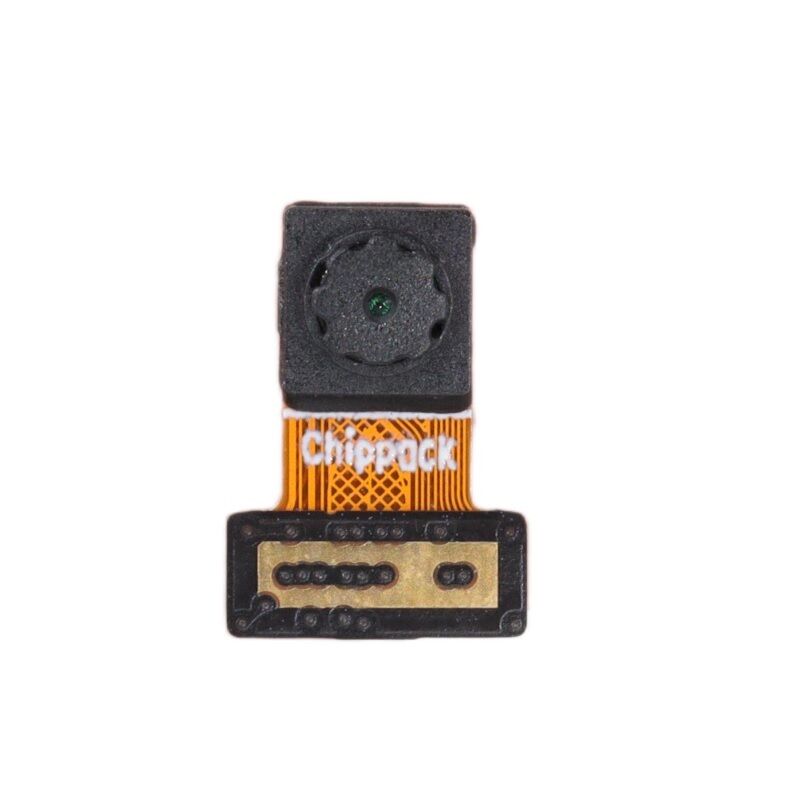

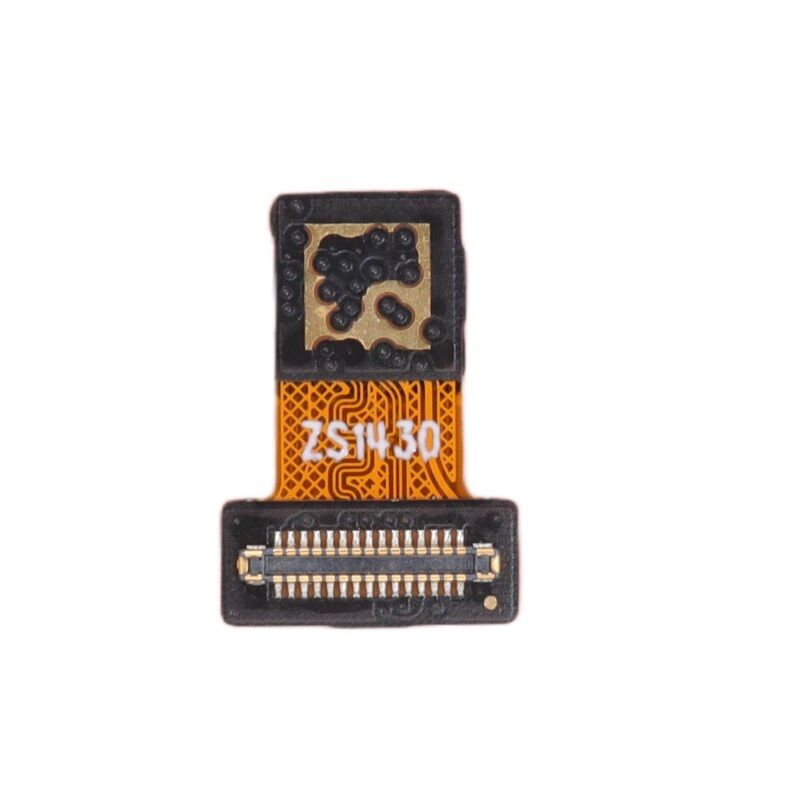

0.56 MP MONO Global Shutter 81 Perspective MIPI Camera Module With VD55G1 Sensor

0.56 MP MONO Global Shutter 81 Perspective MIPI Camera Module With VD55G1 Sensor

1. Basic Parameters:

‑ Resolution: 800(H)×700(V), 0.56MP. It delivers high imaging precision and excellent restoration of image details, meeting the demand for lightweight and high‑precision visual acquisition.

‑ Pixel Size: 2.16μm(H)×2.16μm(V). Featuring large‑size Back‑Side Illuminated (BSI) deep‑CDTI pixels combined with advanced 40nm/65nm process technology, it offers outstanding pixel photosensitivity, greatly improved imaging contrast and sharpness, as well as stronger anti‑interference capability.

‑ Optical Format: 1/9‑inch. The ultra‑compact overall size fits the installation space constraints of various miniaturized and compact devices.

‑ Supply Voltage: Core voltage 1.15V, interface voltage 1.8V, analog voltage 2.8V. It can operate stably under various voltage conditions to ensure sensor reliability.

‑ Temperature Range: Operating temperature ranges from ‑30℃ to 85℃. Its wide operating temperature range enables adaptation to diverse working environments.

2. Technical Features:

‑ Global Shutter Technology: The global‑shutter design effectively eliminates motion blur and illumination artifacts while reducing power consumption requirements for lighting.

‑ Equipped with STMicroelectronics‑exclusive ultra‑low‑power detection and wake‑up architecture. Power consumption ≤2mW under auto‑wake‑up mode. It supports intelligent event wake‑up and ultra‑low‑power sleep mode. It automatically enters low‑power standby when no visual detection task is ongoing, and rapidly starts imaging upon detecting target events. Power consumption can be adaptively adjusted according to frame rate and function configurations, significantly cutting overall device power consumption for battery‑powered portable devices.

‑ Integrated dual high‑speed output interfaces: MIPI CSI‑2 and I3C. It satisfies both high‑speed image transmission and lightweight data interaction requirements, and is compatible with various mainstream MCUs and economical System‑on‑Chips (SoCs). It provides broad interface compatibility and stable transmission, simplifying hardware adaptation design and lowering development costs.

‑ VD55G1 MONO Camera Module: Compatible with standard modules fitted with different lenses such as the 81° lens to satisfy diverse customer requirements.

3. Application Fields:

Applied in virtual reality / augmented reality, biometric identification, drones, smart home, IoT devices, 3D imaging, machine vision, barcode scanning, factory automation and other fields.

4. Customization Services:

Custom modules can be produced according to customer requirements to deliver tailor‑made products matching customers’ specific needs.
