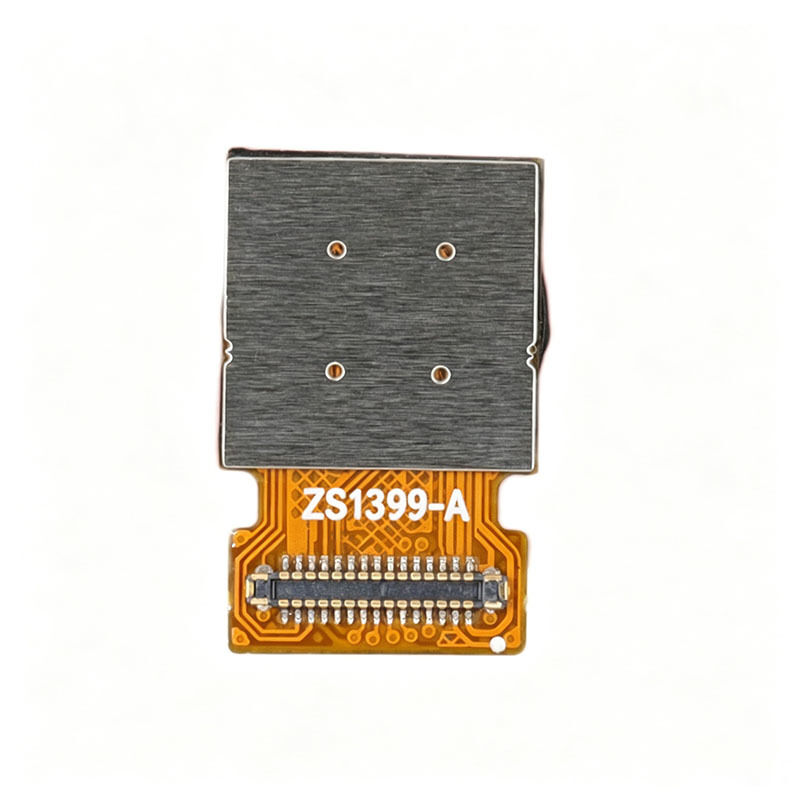

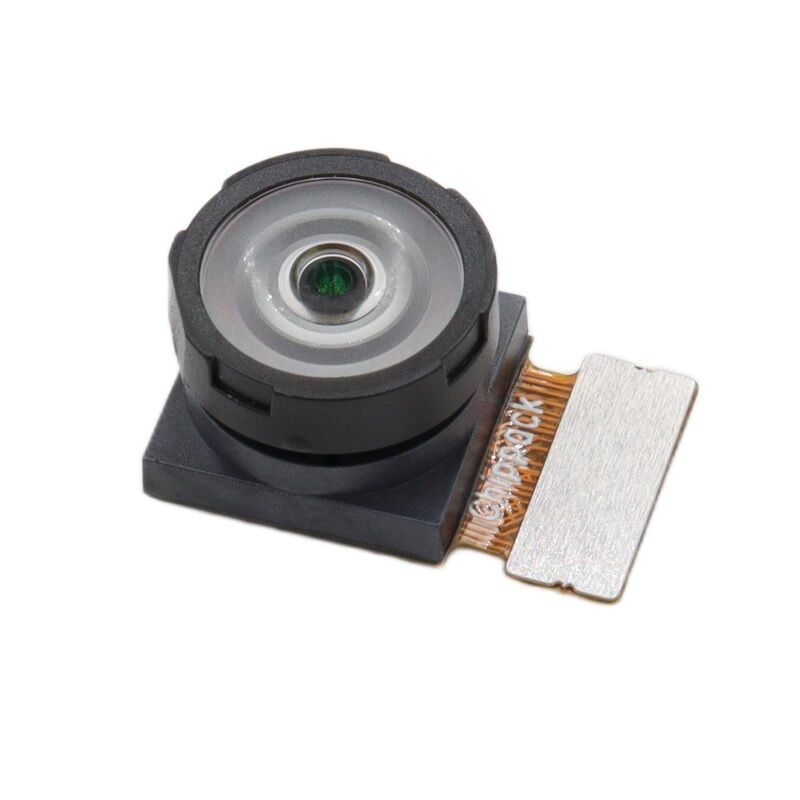

1.53 MP MONO Global 152.9 - Degree View Shutter Camera Module VD56G3 Sensor For Machine Vision

1.53 MP MONO Global 152.9 - Degree View Shutter Camera Module VD56G3 Sensor For Machine Vision

1. Basic Parameters:

‑ Resolution: 1124 (H) x 1346 (V), 1.53MP. It delivers high‑definition imaging to capture scene details precisely, meeting imaging requirements for high‑precision visual inspection, positioning tracking and other scenarios.

‑ Pixel Size: 2.61μm (H) × 2.61μm (V). Adopting large‑pixel‑pitch technology combined with back‑side‑illuminated architecture, it greatly boosts photosensitive area and light utilization efficiency, balancing image quality and sensor miniaturization design.

‑ Optical Format: 1/4‑inch. It features compact overall dimensions, offering excellent compatibility with various miniaturized module devices.

‑ Supply Voltage: Core voltage of 1.15V, interface voltage of 1.8V, analog voltage of 2.8V. It can operate stably under various voltage conditions to ensure sensor reliability.

‑ Temperature Range: Operating temperature ranges from ‑30℃ to 85℃. Its wide operating temperature range enables adaptation to diverse working environments.

2. Technical Features:

‑ Global Shutter Technology: The global‑shutter design effectively eliminates motion blur and illumination artifacts while lowering power consumption requirements for lighting.

‑ It adopts core technologies including BSI (Back‑Side‑Illuminated) and CDTI (Continuous Digital Time Integration). It achieves outstanding photosensitivity in both visible‑light and near‑infrared bands (850nm, 940nm), with excellent quantum efficiency and modulation transfer function performance. It can output sharp, high‑clarity and pure images with superior detail restoration even under low‑light conditions.

‑ Built‑in intelligent functions such as auto‑exposure, defect correction and multi‑scene parameter self‑adaptation. It supports 4‑group fast scene switching and flexible multi‑channel stroboscopic control to satisfy imaging demands under varied lighting and working conditions. It supports optical‑flow algorithm computation, with a maximum output of 2000 optical‑flow vectors per frame, greatly improving the accuracy of motion tracking and target detection.

‑ VD56G3 Camera Module: Compatible with standard modules with different lens configurations including 152.9° to meet diverse customer requirements.

3. Application Fields:

Applied in virtual reality / augmented reality, biometric identification, drones, smart home, IoT devices, 3D imaging, machine vision, barcode scanning, factory automation and other fields.

4. Customization Services:

Custom modules can be produced according to customer requirements to deliver tailor‑made products matching clients’ specific needs.
