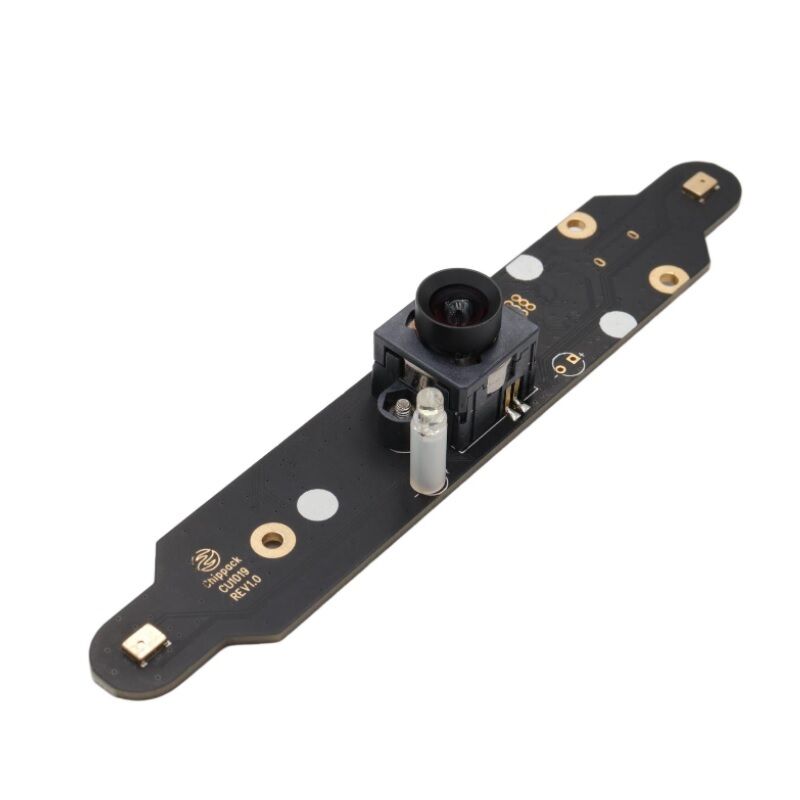

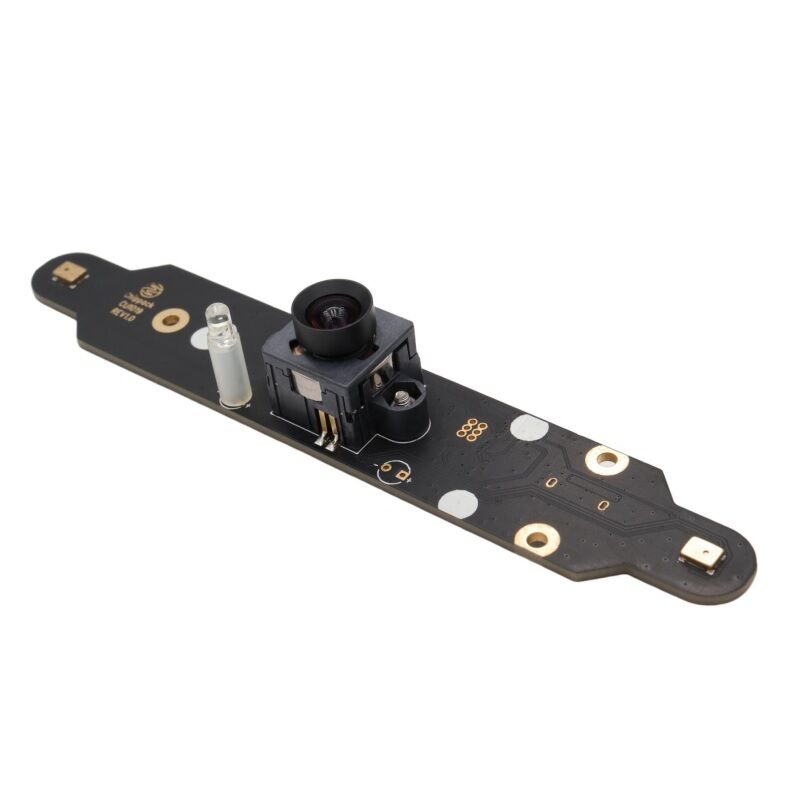

SOI JX - F23 Rolling Shutter RGB Camera Module 1920x1080 For Barcode Scanning

SOI JX-F23 RGB Rolling Shutter Camera Module , Machine Vision , Biometrics , QR Code , Customization Services Available .

1. Basic Parameters:

- Resolution: 1920(H)×1080(V), 2MP. Supports multiple resolution modes that can be flexibly switched according to actual application scenarios to meet different image quality requirements.

- Pixel Size: 2.8μm(H)×2.8μm(V). The relatively large pixel size can capture more light, effectively improve imaging performance in low-light environments, reduce noise, and ensure image clarity.

- Optical Format: 1/2.9 inch. Equipped with a matching lens structure, it can achieve a wide field of view angle with optical distortion ≤0.5%, delivering regular imaging frames without obvious distortion and adapting to diverse lens selection requirements.

- Supply Voltage: The operating voltage is 5V. It can work stably under appropriate voltage conditions, ensuring the reliability of the sensor.

- Temperature Range: Operating temperature from -30℃ to 85℃. It features a wide operating temperature range and can adapt to various working environments.

2. Technical Features:

- Rolling Shutter Technology: Adopts a progressive-exposure rolling shutter design, featuring low imaging noise, delicate detail restoration, high circuit integration, and optimized power consumption and cost. It is suitable for high-definition imaging in static and low-speed scenarios.

- Excellent low-light performance. Relying on the 2.8μm×2.8μm pixel design, the minimum illumination can reach ≥0.01LUX (F1.2, without LED assistance). It can still capture clear and delicate images in weak light environments, meeting low-light imaging needs without additional lighting equipment.

- Outstanding image processing capability. Integrated with on-chip 10-bit ADC, programmable gain amplifier (PGA) and correlated double sampling (CDS) technologies, it can effectively suppress noise, improve image stability and purity. It also supports functions such as AEC, AEB and AGC, enabling automatic adaptation to different lighting environments and optimized imaging effects. With a low-power design, the maximum power consumption is only 500mW without LED assistance, delivering remarkable energy-saving effects, effectively extending device battery life, and adapting to portable and low-power terminal equipment. It also features high operational stability and can work continuously for a long time without performance degradation.

- JX-F23 Camera Module: Compatible with standard modules configured with lenses of different angles such as 84° to meet diverse customer needs.

3. Application Fields:

Applied in biometric identification, unmanned aerial vehicles, smart home, IoT devices, machine vision, barcode scanning, factory automation and other fields.

4. Personalized Customization Services:

Custom modules can be produced in accordance with customer requirements, providing tailor-made products that meet their specific needs.
