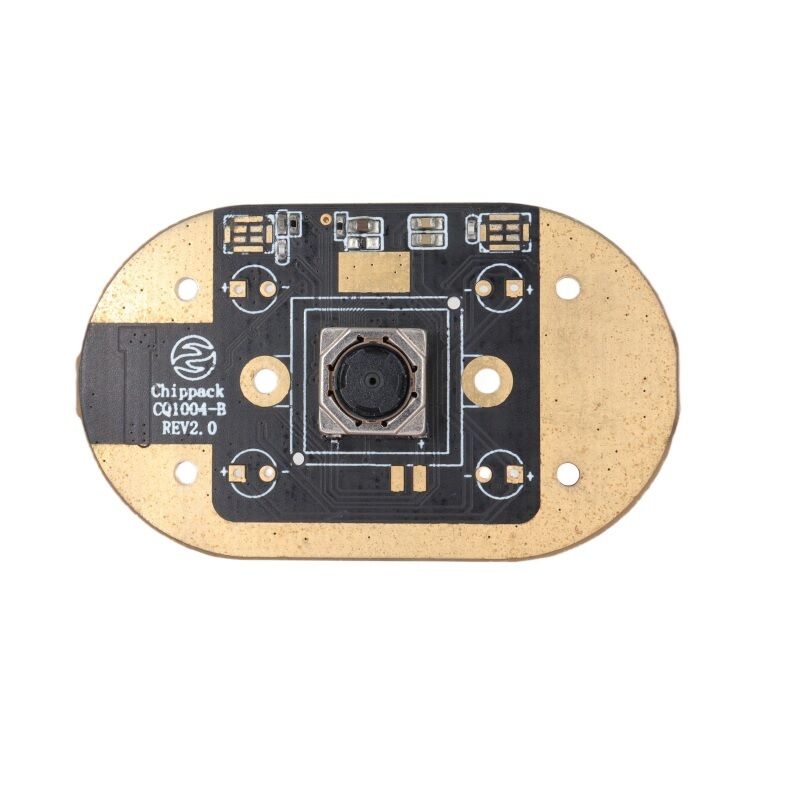

RGB Rolling Shutter 2.0 USB Camera Module 70 Perspective 5 MP With OV5648 Sensor

5MP RGB Rolling Shutter 70 Perspective USB 2.0 Camera Module With OV5648 Sensor , Customization Services Available .

1.Basic Parameters:

- Resolution: 2592 (H) × 1944 (V), 5 MP; maximum frame rate reaches 15 fps at full resolution, accommodating varying frame rate and image quality requirements across devices.
- Pixel dimensions: 1.4 µm (H) × 1.4 µm (V). The small-pixel configuration reduces the sensor volume, meeting miniaturization module requirements.
- Optical format: 1/4 inch, featuring a compact chip size that accommodates ultra-thin module designs and is compatible with mainstream lenses, meeting the structural installation requirements of miniaturized electronic devices.
- Power supply voltage: The operating voltage is 5V, ensuring stable performance under appropriate voltage conditions and guaranteeing sensor reliability.

- Temperature range: The operating temperature spans from 0°C to 50°C, offering a wide temperature range that accommodates various operating environments.

2.Technical Features:

- Curtain shutter technology: Featuring a line-by-line exposure curtain shutter design, it delivers low imaging noise and fine detail reproduction, with high circuit integration, optimized power consumption and cost efficiency, making it ideal for high-definition imaging in static or low-speed scenarios.
- Equipped with a back-illuminated imaging sensor technology, it achieves a minimum illuminance of just 0.1 lux, delivering clear images in low-light environments without requiring additional lighting. The built-in hardware HDR wide dynamic range algorithm delivers a dynamic range of up to 68 dB, effectively balancing overexposure in bright conditions and complete darkness in dim environments. This ensures superior image depth and detail even under complex lighting scenarios such as backlighting or high contrast lighting conditions.
- Featuring an integrated one-stop image processing algorithm that combines automatic exposure control (AEC), automatic white balance (AWB), autofocus (AF), black level calibration, and image sharpening capabilities. This eliminates the need for external DSP image processing chips to achieve basic image optimization, simplifying backend hardware circuit design and reducing overall development costs and timeframes. Additionally, it supports zero-latency shutter (ZSL) mode for instant, delay-free captures, effectively preventing motion blur in dynamic scenes.
- OV5648 Camera Module: Compatible with standard modules for various lens configurations including 70mm, meeting diverse customer requirements.

3. Application Areas:

Used in biometrics, drones, smart homes, IoT devices, machine vision, barcode scanning, factory automation, and other fields.

4. Personalized Customization Services:

The modular design enables tailored production according to client specifications, delivering customized solutions that meet specific needs.
