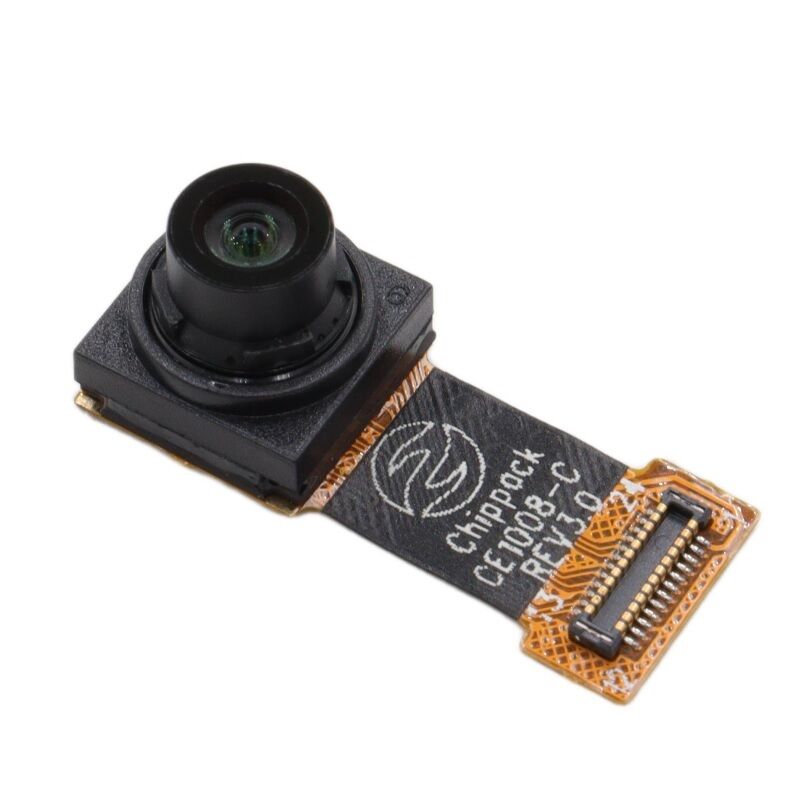

OV4689 RGB Camera Module 2688x1520 121 Degree View Rolling Shutter 4MP for QR Code Scanning

4 MP RGB Rolling 121 - Degree View Shutter Camera Module OV4689 Sensor For Machine Vision , Customization Services Available .

1.Basic Parameters:

- Resolution: 2688 (H) × 1520 (V), 4 MP, supporting full-resolution HD imaging to meet diverse visual requirements while balancing image clarity and transmission efficiency.

- Pixel dimensions: 2.0 μm (H) × 2.0 μm (V), featuring the OmniBSI™-2 back-illuminated pixel architecture that significantly increases the light-sensitive area, enhances imaging performance in low-light conditions, and reduces image noise.

- Optical format: 1/3 inch, compatible with mainstream lens module specifications, offering broad compatibility and universal module adaptability.

- Power Supply Voltage: The core voltage is 1.2 V, the interface voltage is 1.8 V, and the analog voltage is 2.8 V, ensuring stable operation under various voltage conditions and guaranteeing sensor reliability.

- Temperature Range: Operating temperature ranges from-30°C to 85°C, offering a wide operational temperature range suitable for diverse working environments.

2.Technical Features:

- Rolling shutter technology: Utilizes a rolling shutter design with sequential exposure, delivering low imaging noise and fine detail reproduction, along with high circuit integration, optimized power consumption, and cost efficiency, making it ideal for high-definition imaging in static or low-speed scenarios.

- Built upon OmniBSI™-2 back-illuminated pixel technology combined with large-size pixels, significantly enhancing light intake on the sensor and offering far superior low-light sensitivity compared to competing products of similar specifications. It consistently delivers clear, low-noise high-definition images even under low-light conditions such as nighttime, dimly lit interiors, or backlit environments. Additionally, it incorporates high-performance HDR (High Dynamic Range) technology that balances contrast between bright and dark areas, perfectly reproducing details in scenes with strong backlighting or extreme brightness contrasts while preventing overexposure in bright zones and complete blackness in dark areas.

- Utilizing advanced low-power chip manufacturing processes and a multi-voltage zoned power supply architecture to optimize energy consumption, the device maintains low power usage even under high-frame-rate and high-resolution operating conditions, significantly reducing overall energy consumption and extending battery life.

- OV4689 Camera Module: Compatible with standard modules for various lens configurations including 121mm, meeting diverse customer requirements.

3. Application Areas:

Used in biometrics, drones, smart homes, IoT devices, machine vision, barcode scanning, factory automation, and related fields.

4. Personalized Customization Service:

All customized modules can be manufactured according to specific client needs, delivering tailored solutions that meet unique requirements.
