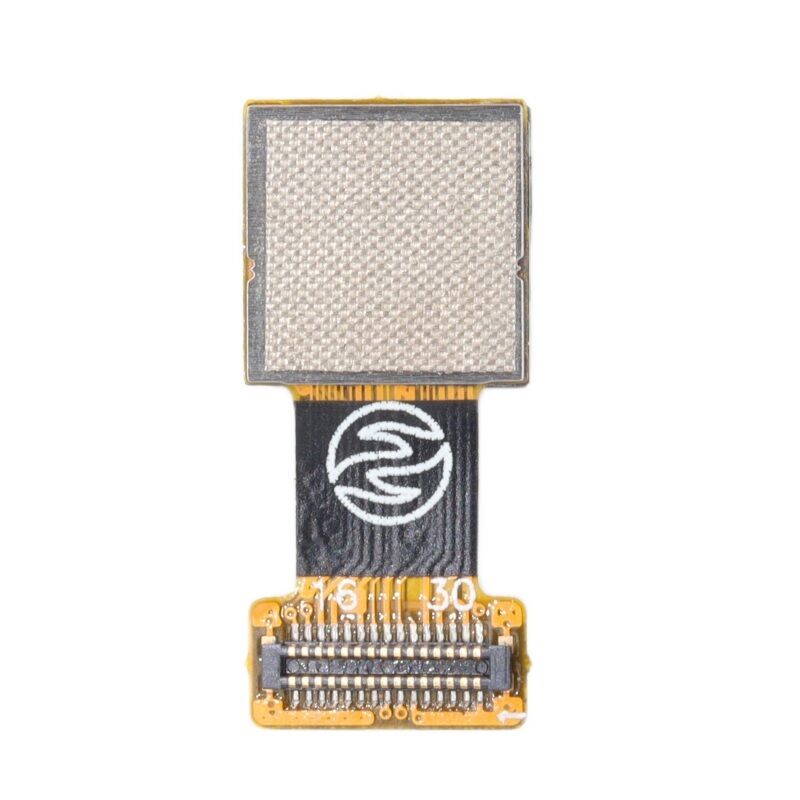

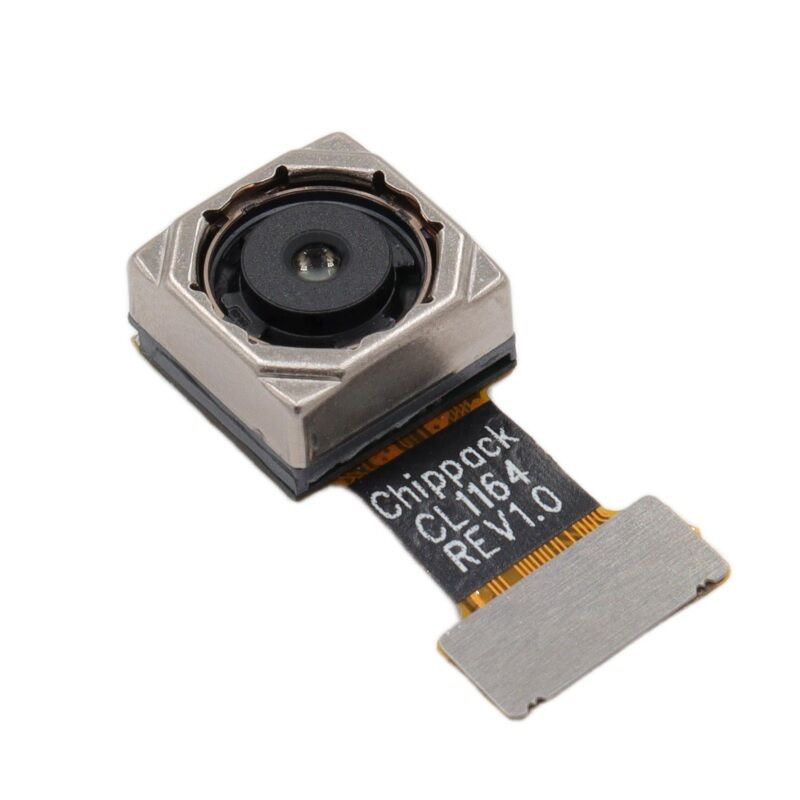

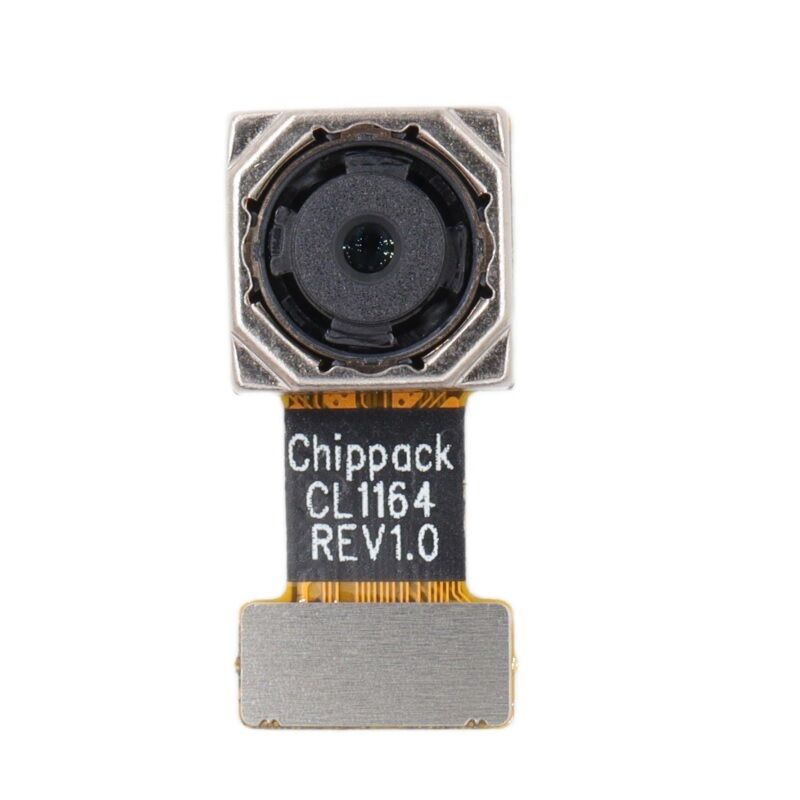

S5K3L6 RGB Camera Module 13MP 4208x3120 Rolling Shutter for Machine Vision

S5K3L6 RGB Rolling Shutter Camera Module , Machine Vision , Biometrics , QR Code , Customization Services Available .

1.Basic Parameters:

- Resolution: 4208 (H) × 3120 (V), 13 MP; delivers clear and detailed static images and smooth, stable dynamic videos, meeting high-definition imaging requirements.

- Pixel dimensions: 1.12 μm (H) × 1.12 μm (V), featuring a regular pixel arrangement that balances imaging quality with sensor miniaturization, ensuring adequate light sensitivity while optimizing both image quality and device compatibility.

- Optical format: 1/3 inch – compact, highly compatible, and easily integrable into various slim-end devices.

- Power Supply Voltage: The core voltage is 1.05 V, the interface voltage is 1.8 V, and the analog voltage is 2.8 V, ensuring stable operation under various voltage conditions and guaranteeing sensor reliability.

- Temperature Range: Operating temperature ranges from-20°C to 70°C, offering a wide operational temperature range suitable for diverse working environments.

2.Technical Features:

- Rolling shutter technology: Utilizes a rolling shutter design with sequential exposure, delivering low imaging noise and fine detail reproduction, along with high circuit integration, optimized power consumption, and cost efficiency, making it ideal for high-definition imaging in static or low-speed scenarios.

- Built on CMOS image sensor manufacturing technology, the chip features extremely high integration with an integrated 10-bit ADC array and on-chip correlation-based dual sampling circuitry, enabling complete image signal digitization without requiring external auxiliary chips. It also exhibits excellent low-power performance, featuring low operating power consumption and minimal standby power loss, effectively reducing power demands on end devices, extending battery life, and meeting the low-power design requirements of thin, portable devices.

- Leveraging on-chip dual sampling technology, it significantly suppresses fixed-pattern noise and dark current noise, effectively enhancing image purity and reducing noise and color artifacts in low-light conditions. Paired with an RGB Bayer color filter array, it delivers precise color reproduction with rich gradations and complete detail preservation across both bright and dim scenes, delivering high-quality, consistently consistent images whether in bright daylight or low-light indoor environments.

- S5K3L6 Camera Module: Compatible with standard modules for various lens configurations including 80mm, meeting diverse customer requirements.

3. Application Fields:

Used in biometrics, drones, smart homes, IoT devices, machine vision, barcode scanning, factory automation, and other applications.

4. Personalized Customization Service:

All customized modules can be manufactured according to specific client needs, delivering tailored solutions that meet individual requirements.
