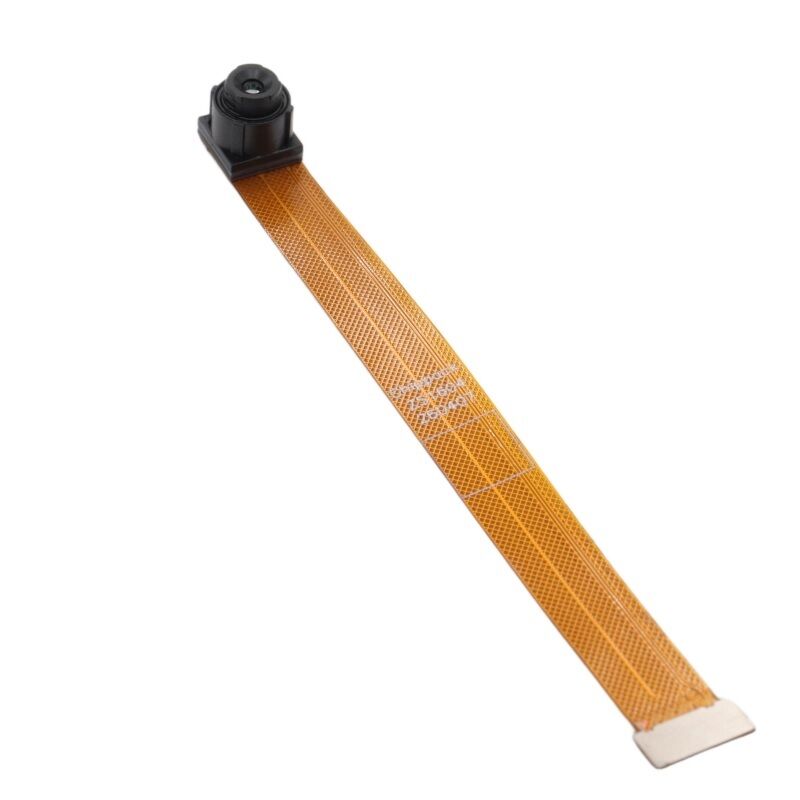

Global Shutter 49 Perspective MIPI Camera Module 1.53 MP With VD56G3CCA Sensor

1.53 MP MONO Global Shutter 49 Perspective MIPI Camera Module With VD56G3CCA Sensor , Customization Services Available .

1.Basic Parameters:

- Resolution: 1124 (H) × 1346 (V), 1.53 MP, delivering precise capture of HD image details while balancing imaging accuracy and transmission efficiency, suitable for various machine vision HD acquisition scenarios.
- Pixel dimensions: 2.61 μm (H) × 2.61 μm (V). The small-pixel design enables a compact sensor layout while maintaining excellent light sensitivity and image clarity, achieving an optimal balance between device size and imaging quality.
- Optical format: 1/4 inch, featuring compact dimensions ideal for miniaturized module designs.
- Power Supply Voltage: The core voltage is 1.15 V, the interface voltage is 1.8 V, and the analog voltage is 2.8 V, ensuring stable operation under various voltage conditions and guaranteeing sensor reliability.

- Temperature Range: Operating temperature ranges from-30°C to 85°C, offering a wide operational temperature range suitable for diverse working environments.

2.Technical Features:

- Global shutter technology: The global shutter design effectively eliminates motion blur and lighting artifacts while reducing power consumption.

- Utilizing a backlit (BSI) optical architecture combined with a global shutter imaging solution, along with 3D stacking technology and CDTI continuous digital time-integration technology, it significantly enhances light utilization efficiency, delivers excellent imaging performance in low-light conditions, and effectively reduces image noise and ghosting effects.
- Equipped with multiple built-in image optimization algorithms and data processing modules, it supports advanced image processing functions including automatic exposure adjustment, bad pixel correction, pixel merging, image cropping, and subsampling scaling. The system autonomously performs adaptive brightness adjustment and defect pixel repair, while allowing flexible customization of image size and resolution without requiring additional external image processing chips, thereby significantly reducing overall power consumption and hardware costs while enhancing imaging calibration efficiency.
- VD56G3CCA Camera Module: Compatible with standard modules for various lens configurations including 49mm, meeting diverse customer requirements.

3. Application Areas:

Used in virtual reality/augmented reality, biometrics, drones, smart homes, IoT devices, 3D imaging, machine vision, barcode scanning, factory automation, and other fields.

4. Personalized Customization Service:

All customized modules can be manufactured according to specific client needs, delivering tailored solutions that meet individual requirements.
