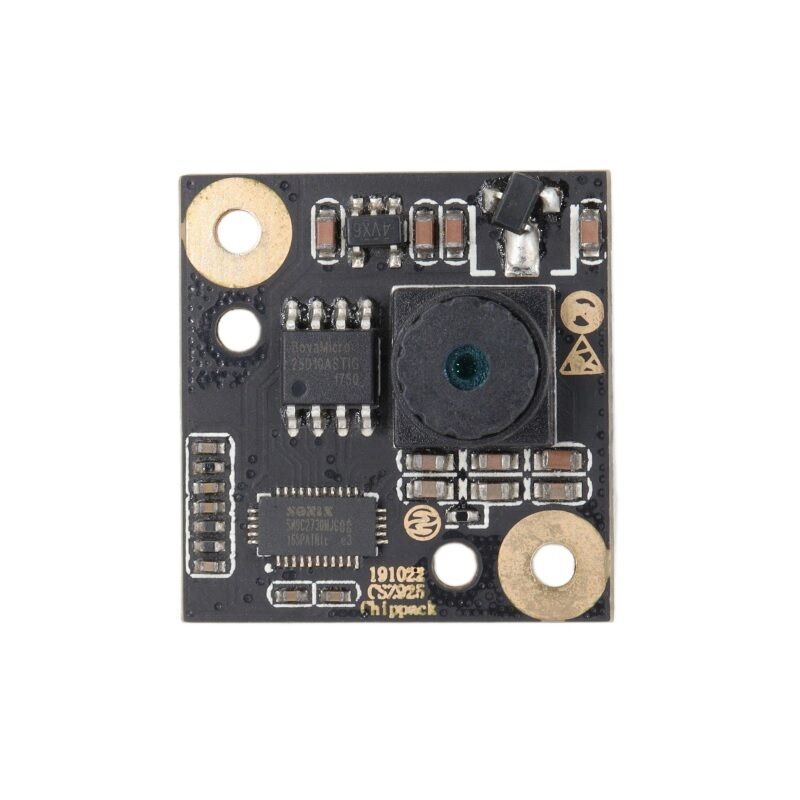

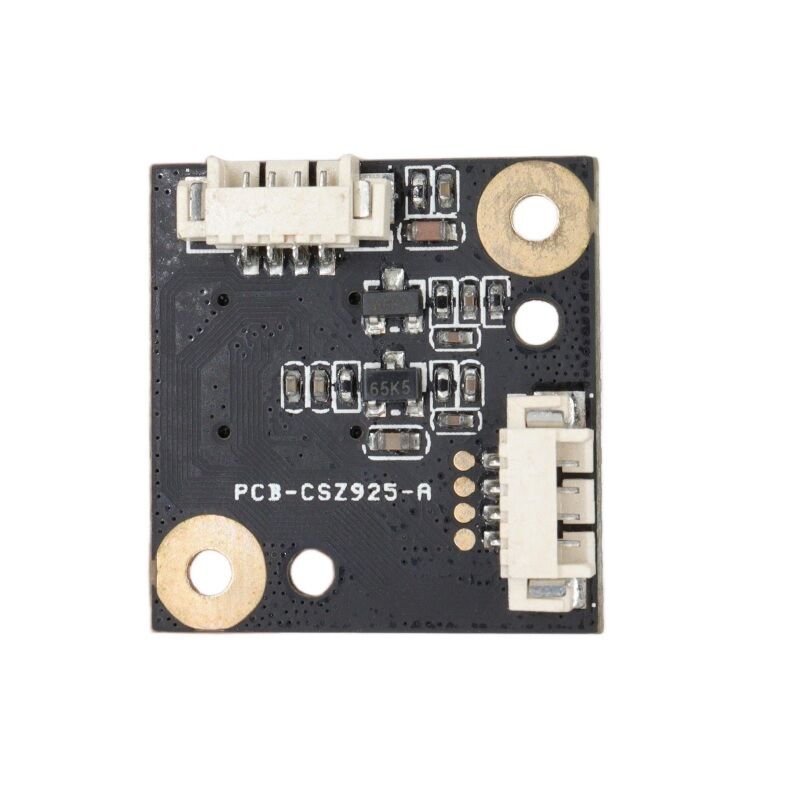

SOI JX - H62 RGB Rolling Shutter USB Camera Module For Unmanned Aerial Vehicles

SOI JX - H62 RGB Rolling Shutter Camera Module , Machine Vision , Biometrics , QR Code , Customization Services Available .

1. Basic Parameters:

- Resolution: 1280(H)×720(V), 1MP. It supports multi-level resolution output to meet image transmission requirements of various scenarios.

- Pixel Size: 3.0μm(H)×3.0μm(V). Each pixel boasts sufficient light-sensitive area, which greatly increases light intake under low-light conditions and optimizes low-light imaging performance at the hardware level.

- Optical Format: 1/4 inch. It is compatible with mainstream M8 and M12 lenses available on the market, supports matching with various lenses, and delivers excellent module compatibility.

- Supply Voltage: Operating voltage is 5V. It ensures stable operation under proper voltage conditions and guarantees sensor reliability.

- Temperature Range: Operating temperature ranges from -10℃ to 60℃. The wide operating temperature range enables it to adapt to diverse working environments.

2. Technical Features:

- Rolling Shutter Technology: It adopts a progressive exposure rolling shutter design, delivering low imaging noise and delicate detail restoration. Featuring high circuit integration, lower power consumption and cost, it is ideal for high-definition imaging in static and low-speed scenarios.

- Equipped with low dark current photosensitive technology and high photosensitivity design of 4300mV/lux-sec, it can capture clear images in low-light environments without extra supplementary lighting, free of obvious motion blur and noise accumulation in night dim scenes. It embeds Correlated Double Sampling (CDS) circuits together with a 10-bit on-chip ADC analog-to-digital converter to effectively suppress fixed pattern noise. The overall signal-to-noise ratio of the device reaches 37dB and the dynamic range hits 72dB, presenting richer image layers in scenes with sharp light-dark contrast.

- Built-in three core algorithms including Automatic Exposure Control (AEC), Automatic White Balance (AWB) and Automatic Gain Control (AGC), which can adaptively adjust image parameters in real time according to ambient light changes. Meanwhile, it supports manual adjustment of more than ten parameters such as brightness, contrast, saturation and gamma value, satisfying both automatic operation and precise fine-tuning demands.

- JX-H62 Camera Module: Compatible with standard modules equipped with lenses of different viewing angles such as 85° to fulfill diverse customer requirements.

3. Application Fields:

It is applied in biometric recognition, unmanned aerial vehicles, smart home, IoT devices, machine vision, barcode scanning, factory automation and other fields.

4. Personalized Customization Services:

Custom modules can be produced tailor-made in accordance with customers' requirements to create exclusive products matching their specific demands.
