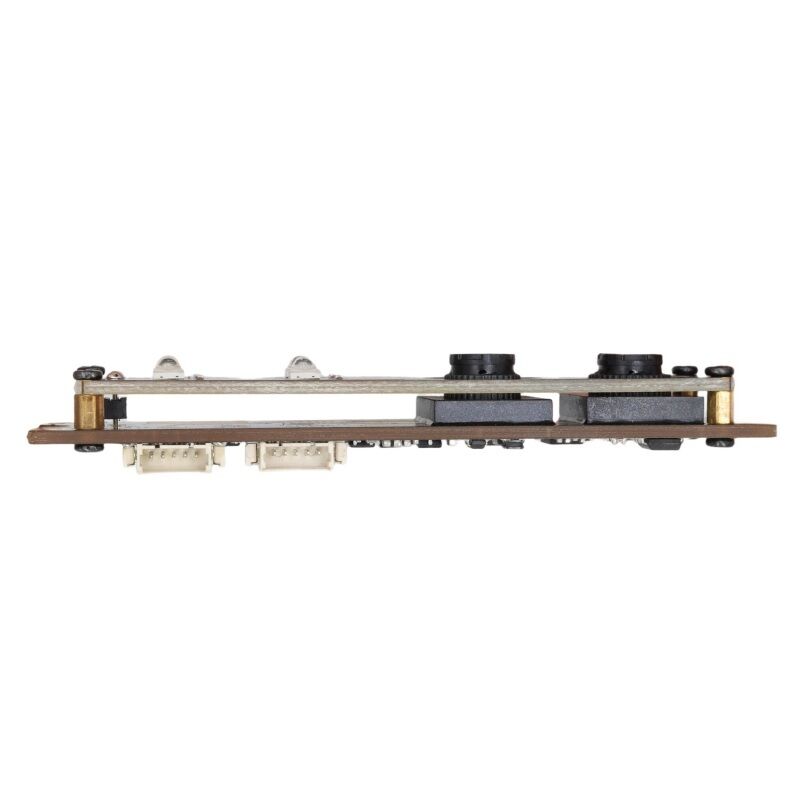

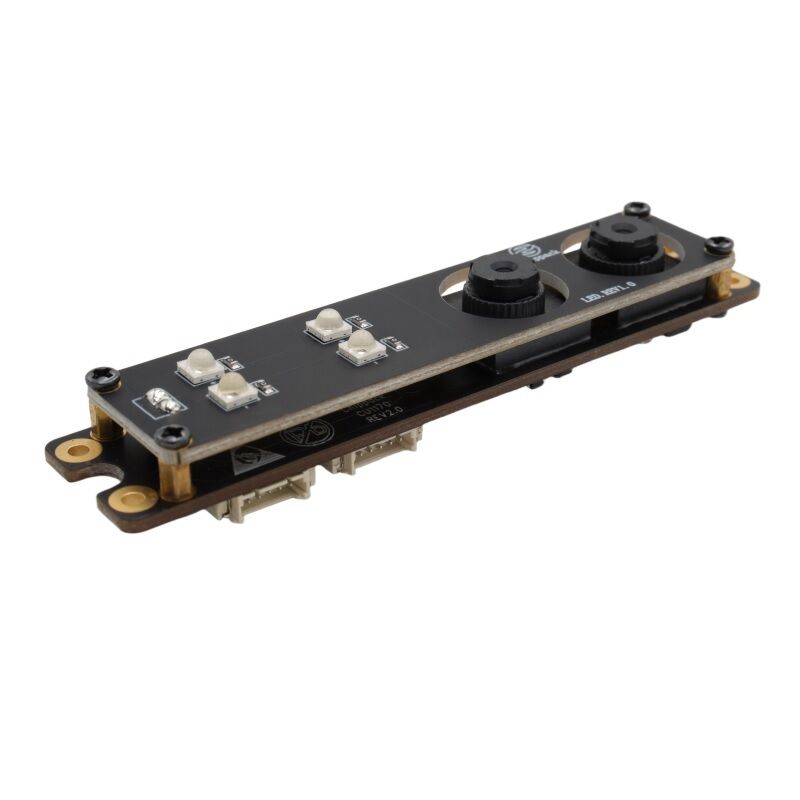

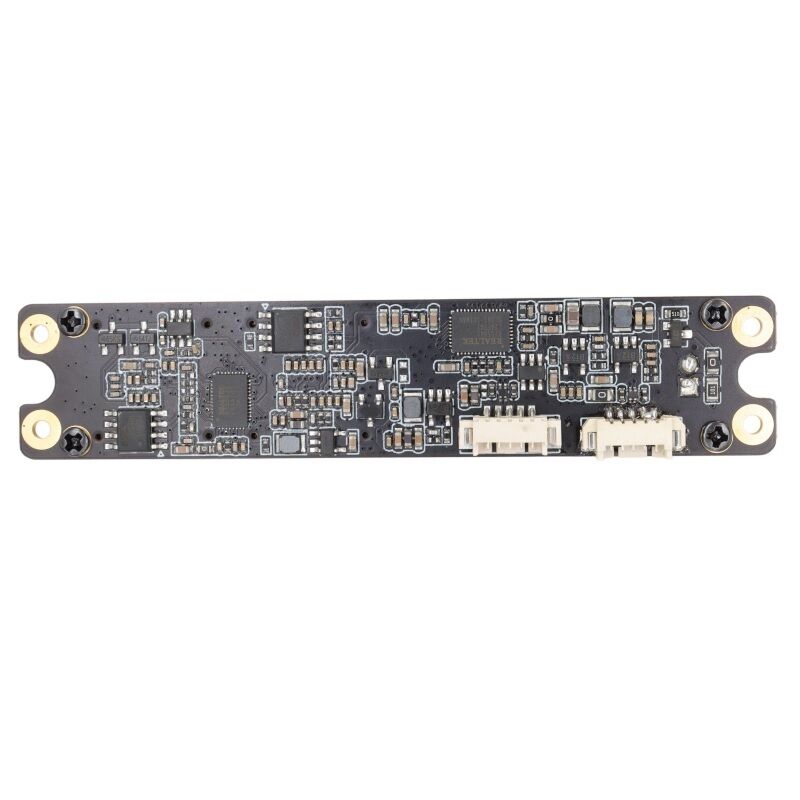

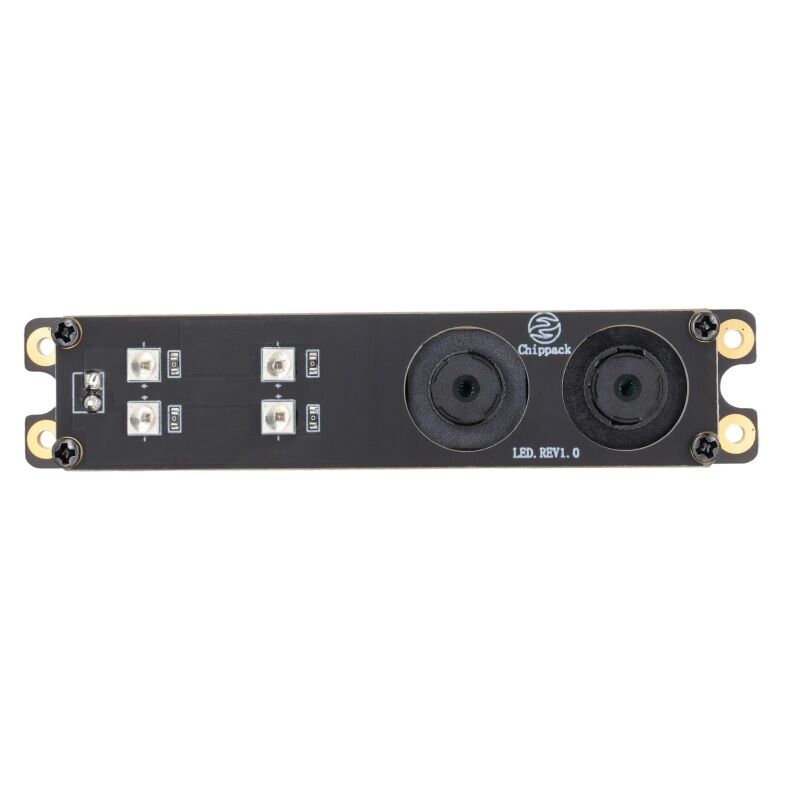

OV2735 MONO - IR And PS5268 RGB Rolling Shutter Camera Module , Biometrics , Customization Services Available

OV2735 MONO - IR And PS5268 RGB Rolling Shutter Camera Module , Biometrics , Customization Services Available

1. Basic Parameters:

- Resolution: 1920 (H) × 1080 (V), 2MP. Supports Full HD resolution output with smooth and stable image transmission.

- Pixel Size: 3.0μm (H) × 3.0μm (V). High pixel photosensitive utilization rate and excellent imaging fineness.

- Optical Format: 1/2.7 inch. Compatible with standard high-definition lenses, delivering balanced field of view without obvious distortion. The captured images maintain consistent viewing range with no image offset.

- Supply Voltage: Operating voltage is 5V. It can operate stably under appropriate voltage conditions to guarantee sensor reliability.

- Temperature Range: Operating temperature ranges from -30℃ to 85℃. It features a wide operating temperature range and can adapt to diverse working environments.

2. Technical Features:

- Rolling Shutter Technology: Adopts progressive exposure rolling shutter design with low imaging noise and exquisite detail restoration. It boasts high circuit integration, lower power consumption and cost, suitable for high-definition imaging in static and low-speed scenarios.

- Integrated color imaging and infrared night vision chips to build a dual imaging system of "RGB high-definition imaging in daytime + IR night vision imaging at night". In daytime, the PS5268 sensor outputs color images with high color reproduction and high dynamic range. It supports an 85dB wide dynamic range, which effectively resolves overexposure and loss of shadow details under strong backlight and scenes with extreme light-dark contrast. At night or in low-light environments, imaging switches to the OV2735 infrared sensor. Supporting common infrared bands, it delivers outstanding low-light photosensitivity.

- The PS5268 is equipped with new-generation HDR and LTM Local Tone Mapping technology, achieving authentic color reproduction and strong image hierarchy. Its signal-to-noise ratio reaches 41dB to effectively suppress image noise and satisfy the requirements of high-definition visual recognition and image capture. Leveraging PureCel®-Plus pixel technology, the OV2735 carries out special optimization for noise in infrared imaging, producing clean, transparent night vision images with clear outlines.

- OV2735 and PS5268 camera modules: Compatible with standard modules equipped with various lenses such as 73°, to meet diversified customer demands.

3. Application Fields:

Applied in biometrics, unmanned aerial vehicles, smart home, IoT devices, machine vision, barcode scanning, factory automation and other fields.

4. Personalized Customization Service:

Custom modules can be produced on demand to develop tailor-made products matching customers’ requirements.
