Brand Name:
Chippack
System - in - package , applied in the Internet of Things , automotive electronics and other fields .

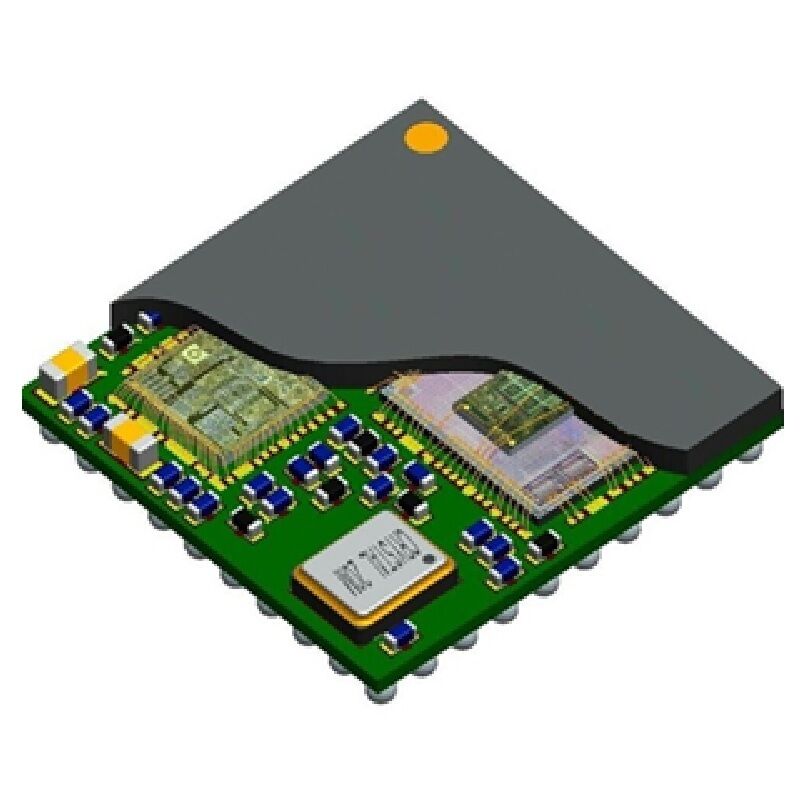

- System-in-Package (SIP) is an advanced packaging technology that integrates multiple functional components into a single package. Its core logic lies in achieving miniaturization and high efficiency of system functions through compact integrated design. In the SIP packaging process, the chip or COB (Chip on Board) wafer, as the core functional carrier, is integrated with key components such as power modules, resistors, capacitors, crystal oscillators, and antennas to ultimately form an IC (integrated circuit) with complete system functionality.
- Specifically, the packaging process first requires positioning and fixing the chip/COB wafer. Then, through precise wiring technology, a stable power supply connection is established between the power module and the wafer to ensure the energy supply to the core components. Resistors and capacitors, as basic passive components, are integrated into the signal transmission path, respectively undertaking the functions of current limiting, voltage division and filtering, and energy storage, optimizing signal integrity. The crystal oscillator, as a clock signal source, provides a precise reference for the timing control of the wafer, ensuring the coordinated operation of all functional modules. The antenna is responsible for signal transmission and reception, enabling the integrated IC to have wireless communication capabilities.
- As a core innovative technology in the semiconductor industry in the post-Moore era, System in Package (SiP) has completely transformed the positioning of traditional packaging, which only serves for protection and pin extension, and achieved a leap-forward upgrade from "chip packaging" to "system integration". Featuring heterogeneous compatibility, high density, high performance, low cost and short cycle, it effectively breaks through the technical bottlenecks of traditional monolithic integration and board-level integration, and serves as the key pillar for the miniaturization, higher performance and lower power consumption of various high-end electronic devices.
- This integrated packaging method combines previously scattered components into one, which not only significantly reduces product size and signal interference between components, but also improves system reliability and assembly efficiency. It is widely used in consumer electronics, IoT, automotive electronics and other fields that require miniaturization and high performance.
