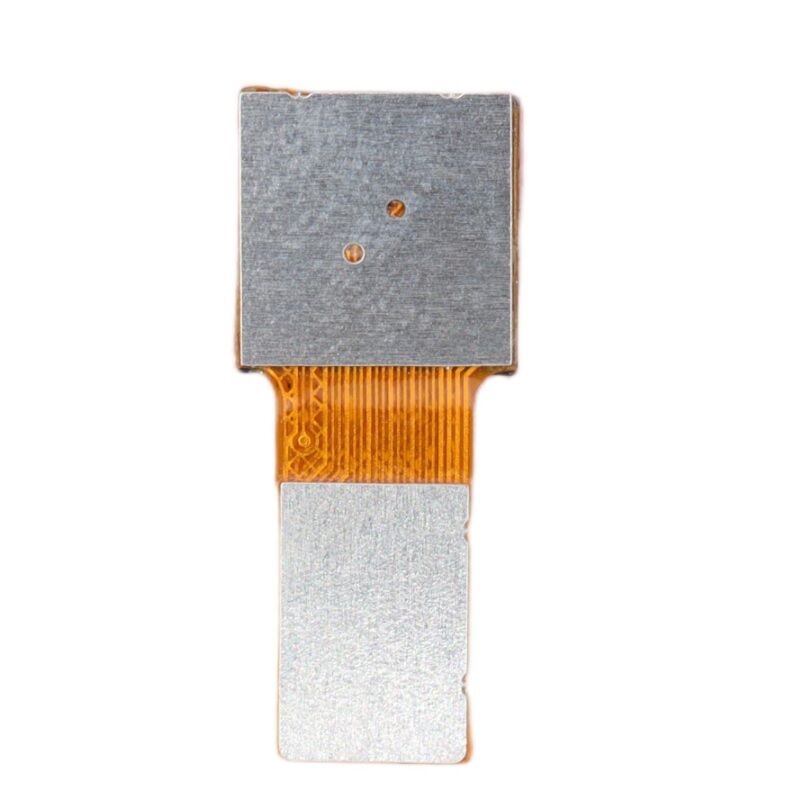

SONY IMX166 MIPI Camera Module RGB Rolling Shutter 3568x2464 8MP for Biometrics QR Code Scanning

SONY IMX166 RGB Rolling Shutter Camera Module , Machine Vision , Biometrics , QR Code , Customization Services Available .

1. Basic Parameters:

- Resolution: 3568 (H) × 2464 (V), 8MP. Adopting Sony's advanced CMOS sensing technology with a rolling shutter mode, it enables ultra-high-definition image capture to meet the demands of various high-definition imaging scenarios.

- Pixel Size: 1.4μm (H) × 1.4μm (V). Featuring a highly integrated pixel design, it effectively improves light sensitivity and delivers outstanding light-sensing performance and image quality.

- Optical Format: 1/3.2 inch. Equipped with Sony's third-generation back-illuminated technology and a highly integrated packaging design, it balances image quality and compactness, achieving stable imaging without complex external components.

- Supply Voltage: Core voltage at 1.2V, interface voltage at 1.8V, and analog voltage at 2.8V. It operates stably under different voltage conditions, ensuring sensor reliability.

- Temperature Range: Operating temperature from 0℃ to 60℃. With a wide operating temperature range, it adapts to diverse working environments.

2. Technical Features:

- Rolling Shutter Technology: Adopting a progressive-exposure rolling shutter design, it features low imaging noise, fine detail restoration, high circuit integration, and optimized power consumption and cost, making it suitable for high-definition imaging in static and low-speed scenarios.

- Adopting Sony's third-generation back-illuminated pixel technology, it greatly enhances the sensor's light sensitivity and image sharpness. It can still capture high-definition, detailed images in low-light or high-contrast backlight environments, effectively reducing noise and delivering accurate color reproduction to meet imaging needs in various complex lighting scenarios.

- Supports on-chip HDR functionality, which significantly improves the clarity of image brightness and dark details, effectively avoiding overexposure in bright areas and underexposure in dark areas. It enables full-scene clear imaging in complex environments with strong and weak light interweaving, satisfying high-precision visual capture requirements.

- Adopting a highly integrated packaging process with optimized die and package dimensions, the supporting camera module can be made into a compact size of 32mm×32mm. Featuring high pixel utilization and a compact structure, it can be easily integrated into space-constrained embedded vision systems and small smart devices without performance degradation, adapting to the R&D needs of miniaturized equipment.

- IMX166 Camera Module: Compatible with standard modules equipped with different lenses such as 83°; meets diverse customer requirements.

3. Application Fields:

Applied in biometric identification, drones, smart home, IoT devices,machine vision, barcode scanning, factory automation, and other fields.

4. Personalized Customization Service:

Custom modules can be produced on a customized basis according to customer needs, providing tailor-made products that meet their specific requirements.
