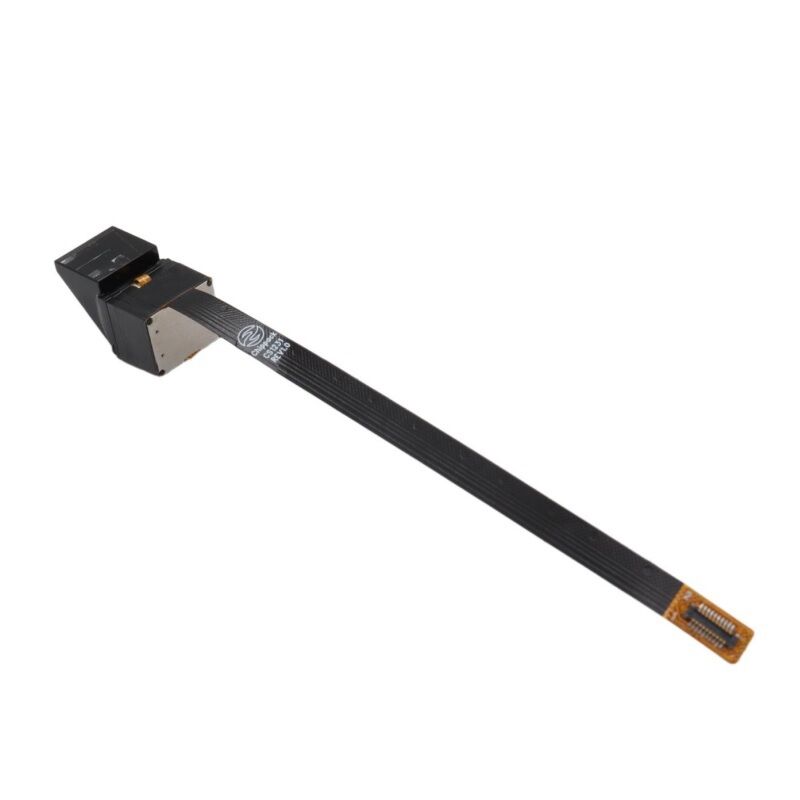

OV OV9732 Rolling Shutter RGB Camera Module 1280x720 For Factory Automation

OV OV9732 Rolling Shutter RGB Camera Module 1280x720 For Factory Automation

RGB Camera Module 1280x720

OV9732 Camera Module

Factory Automation RGB Camera Sensor

Brand Name:

Chippack

Model Number:

OV9732

Chat Now
Request A Quote
Product Details
Sensor Type:
OV9732
Sensor Brand:
OmniVision
Active Array Size:
1280*720
Pixel Size:
3.0μm*3.0μm
Optical Format:
1/4''
Power:
3.3V/1.8V/1.8V
Shutter:
Rolling Shutter
Color:
RGB
Focus Mode:
Fixed Focus
Max Frame Rates:
30fps
Data Interface:
MIPI 1 Or 2 Lane/DVP
Camera Size:
Supports Rapid Sample Customization
FOV:
DFOV:20°-180°(Optional Or Customized)
IR Filter:
Clear/650nm/850nm/940nm(Optional Or Customized)
Highlight:

RGB Camera Module 1280x720

,

OV9732 Camera Module

,

Factory Automation RGB Camera Sensor

Payment & Shipping Terms
Product Description

OV OV9732 RGB Rolling Shutter Camera Module , Machine Vision , Biometrics , QR Code , Customization Services Available .



1. Basic Parameters:

- Resolution: 1280 (H) × 720 (V), 0.92MP. It supports high-definition video capture, stably outputs clear images, and meets mainstream high-definition imaging requirements.

- Pixel Size: 3.0µm (H) × 3.0µm (V). Adopting OmniPixel®3-HS high-sensitivity pixel technology, it effectively enhances light capture capability and optimizes imaging performance in high and low light environments.

- Optical Format: 1/4 inch. Featuring a miniaturized optical design, it is suitable for installation in compact devices and easy to integrate into space-limited products.

- Supply Voltage: Core voltage 1.8V, interface voltage 1.8V, analog voltage 3.3V. It can operate stably under various voltage conditions and ensure sensor reliability.

- Temperature Range: Operating temperature ranges from -30℃ to 70℃. With a wide operating temperature range, it can adapt to diverse working environments.



2. Technical Features:

- Rolling Shutter Technology: Adopts a progressive exposure rolling shutter design with low imaging noise and delicate detail restoration. It features high circuit integration, lower power consumption and cost, making it ideal for high-definition imaging in static and low-speed scenarios.

- Equipped with OmniPixel®3-HS high-sensitivity 3μm pixel technology and backside illumination process, it achieves a sensitivity of 2.066V/lux-sec, a dynamic range of 72dB and a signal-to-noise ratio of 39dB. It delivers excellent scene restoration in extremely low light and strong light conditions, effectively reduces noise, improves image purity, and satisfies clear imaging demands in low-light scenarios.

- The low-power and highly integrated design enables easy integration into wireless battery-powered devices and miniature smart terminals, greatly improving device battery life and portability. Meanwhile, it features a chief ray angle (CRA) of 9°, compatible with consumer-grade optical lens systems to reduce image artifacts and improve image quality. It supports a clock frequency of 6 to 27MHz, which can be flexibly adjusted according to application needs to meet different transmission rate requirements.

- OV9732 Camera Module: Compatible with standard modules with different lens specifications such as 45° to meet diverse customer needs.



3. Application Fields:

It is widely applied in biometric recognition, drones, smart home, IoT devices, machine vision, barcode scanning, factory automation and other fields.



4. Personalized Customization Services:

Custom modules can be produced on demand to tailor exclusive products that fully meet customers' personalized requirements.
