ST Sensor Camera Module For Virtual Reality / Augmented Reality 3D Imaging

ST Sensor Camera Module is applicable to virtual reality / augmented reality , 3D imaging and other fields .

1.Basic parameters:

- Resolution: 1124 (H) x 1364 (V), 1.53MP uses excellent 3D stacking and STMicroelectronics patented process, and performs well in the visible light and near-infrared regions (850 nm or 940 nm).

- Pixel size: 2.61μm (H) × 2.61μm (V), combining the three advantages of low parasitic sensitivity (PLS), high quantum efficiency (QE) and low crosstalk.

- Optical format: 1/4 inch, this size of optical format ensures a certain light collection capacity while also making the sensor suitable for a variety of miniaturized devices.

- Power supply voltage: The core voltage is 1.15V, the interface voltage is 1.8V, and the analog voltage is 2.8V. It can work stably under different voltage conditions, ensuring the reliability of the sensor.

- Temperature range: The operating temperature is -30℃ to 85℃, with a wide temperature operating range, which can adapt to different working environments.

2.Technical features:

- Global shutter technology: The global shutter design effectively eliminates motion blur and lighting artifacts, while reducing lighting power consumption requirements.

- Equipped with STMicroelectronics' self-developed BSI backside illumination technology as well as full CDTI and DTI pixel isolation technologies, it greatly improves the quantum efficiency, modulation transfer function and angular response performance of the sensor, effectively reduces crosstalk between pixels, and delivers clear, sharp images with high detail reproduction.

- Full pixel packaging technology is used to provide excellent photosensitivity and image sharpness in the visible to near-infrared spectrum range (such as 850 nm or 940 nm), and the ability to capture details is unparalleled.

- The VD56G3 monochrome image sensor has three versions: 1.5 million pixel RGB version (VD66GY), 1.5 million pixel RGB-IR version (VD16GZ).

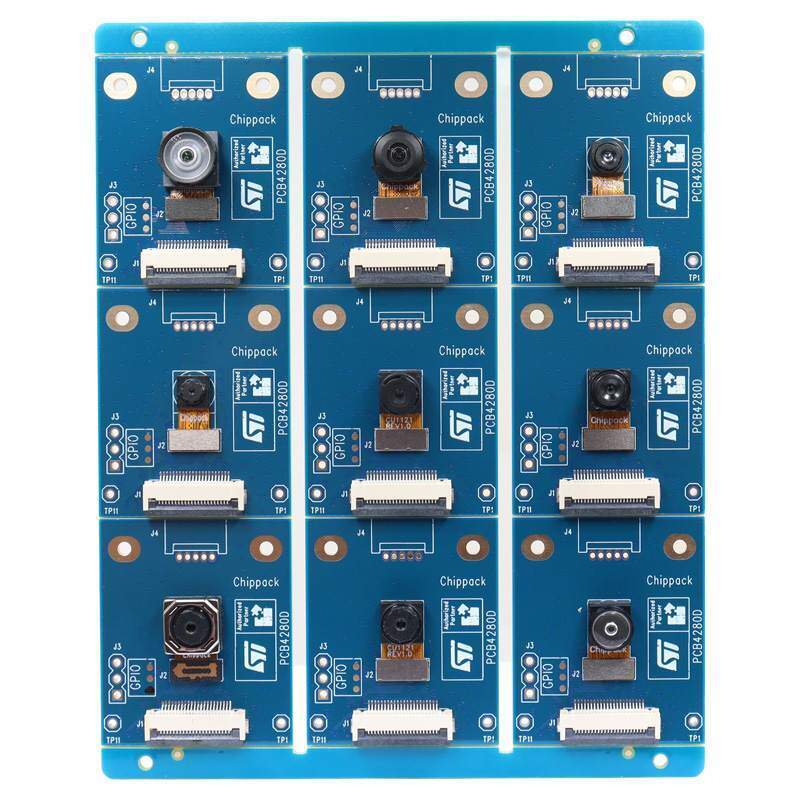

- VD56G3 camera module: compatible with standard modules with different lens configurations such as 152°, 120°, 73°, 49°, etc.; meet different customer needs.

3.Application areas: used in virtual reality/augmented reality, biometrics, drones, smart homes, IoT devices, 3D imaging, machine vision, barcode scanning, factory automation and other fields.

4.Personalized customization service: Customized modules can be customized according to customer needs, and tailor-made products that meet customers' needs.
