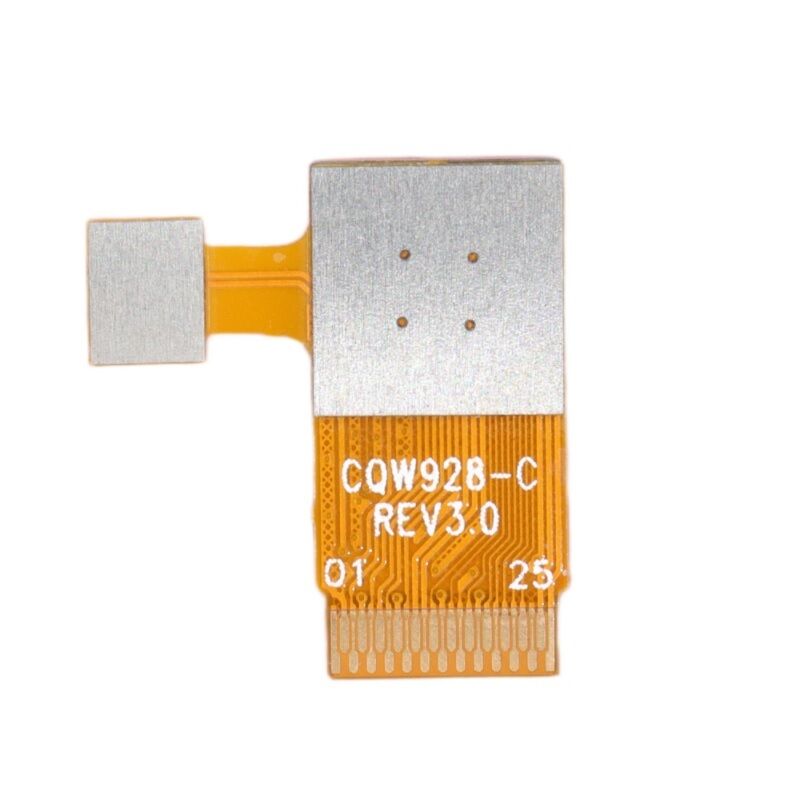

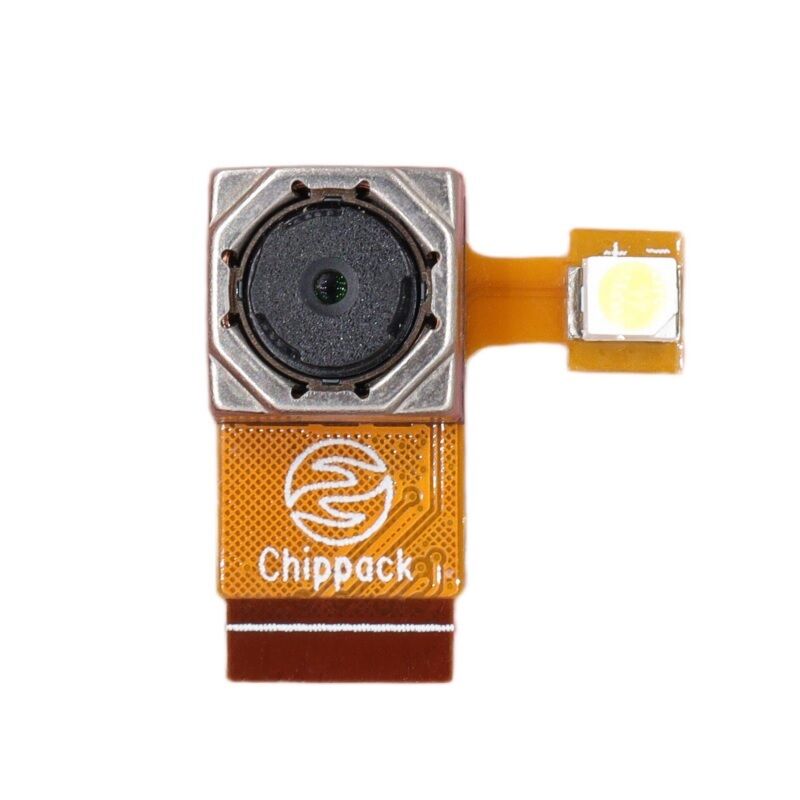

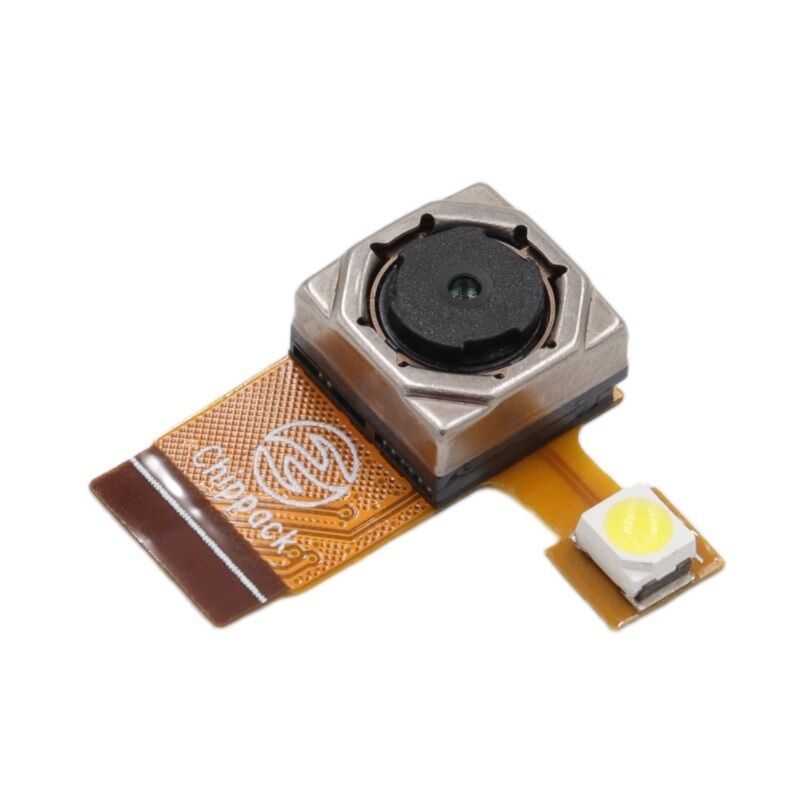

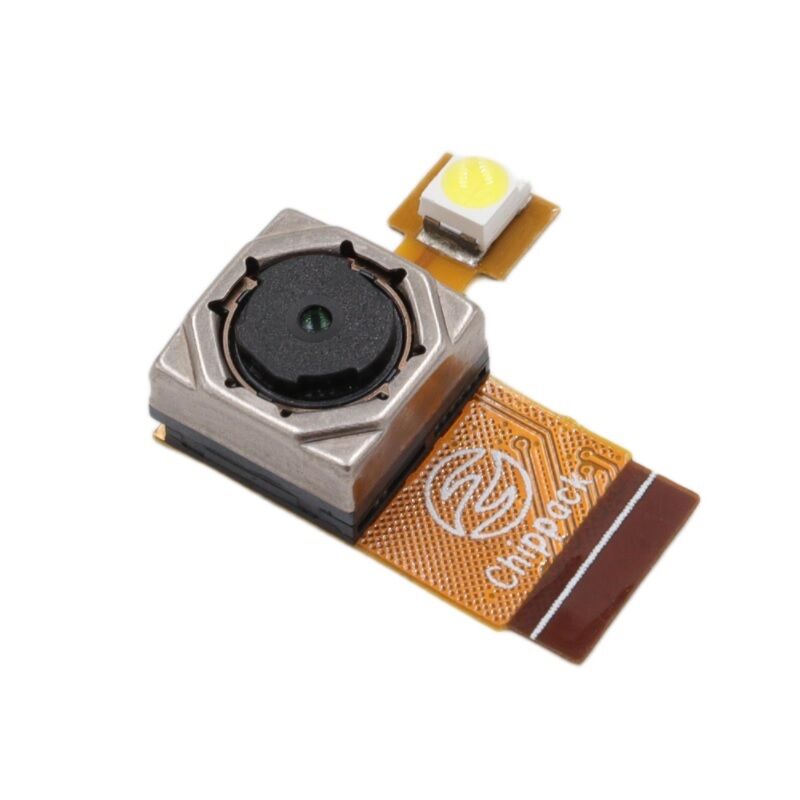

S5K4EC RGB Rolling Shutter Camera Sensor Module 2592x1944 For Drones

S5K4EC RGB Rolling Shutter Camera Module , Machine Vision , Biometrics , QR Code , Customization Services Available .

1. Basic Parameters:

- Resolution: 2592 (H) × 1944 (V), 5MP. It can meet daily image capture and basic high-definition image requirements, and is suitable for various imaging scenarios.

- Pixel Size: 1.4µm (H) × 1.4µm (V). Equipped with an RGB Bayer pattern color filter, it effectively increases light intake, optimizes image color reproduction and detail performance, and reduces noise interference in low-light conditions.

- Optical Format: 1/4 inch. Featuring a compact size, it is easy to integrate into various small devices, balancing imaging performance and miniaturized equipment design, and compatible with multiple module packaging forms.

- Supply Voltage: Core voltage 1.2V, interface voltage 1.8V, analog voltage 2.8V. It can operate stably under different voltage conditions to ensure the reliability of the sensor.

- Temperature Range: Operating temperature ranges from -20℃ to 60℃. With a wide operating temperature range, it can adapt to diverse working environments.

2. Technical Features:

- Rolling Shutter Technology: Adopting a progressive exposure rolling shutter design, it delivers low imaging noise and delicate detail restoration. It boasts high circuit integration, lower power consumption and cost, making it ideal for high-definition imaging in static and low-speed scenarios.

- It integrates a CMOS image sensor and Image Signal Processor (ISP) as a whole, focusing on high efficiency and low power consumption. It simplifies the module integration process and reduces the overall equipment design complexity. The built-in 10-bit ADC array and Correlated Double Sampling (CDS) technology can significantly reduce Fixed Pattern Noise (FPN). The ISP supports multiple complex image processing functions including color restoration and correction, false color suppression, lens shading correction, noise reduction and edge enhancement to improve overall image quality.

- It is equipped with functions such as Automatic Exposure (AE), Automatic White Balance (AWB), Auto Focus (AF), automatic defect correction, automatic dark level compensation and automatic flicker correction (50/60Hz). All automatic functions are executed by firmware on the embedded RISC processor without additional complicated operations, adapting to automated imaging scenarios.

- S5K4EC Camera Module: Compatible with standard modules with different lens configurations such as 73° to meet diverse customer demands.

3. Application Fields:

It is widely applied in biometric recognition, drones, smart home, IoT devices, machine vision, barcode scanning, factory automation and other fields.

4. Personalized Customization Services:

Custom modules can be produced tailor-made according to customer requirements, delivering customized products that fully meet personalized demands.
