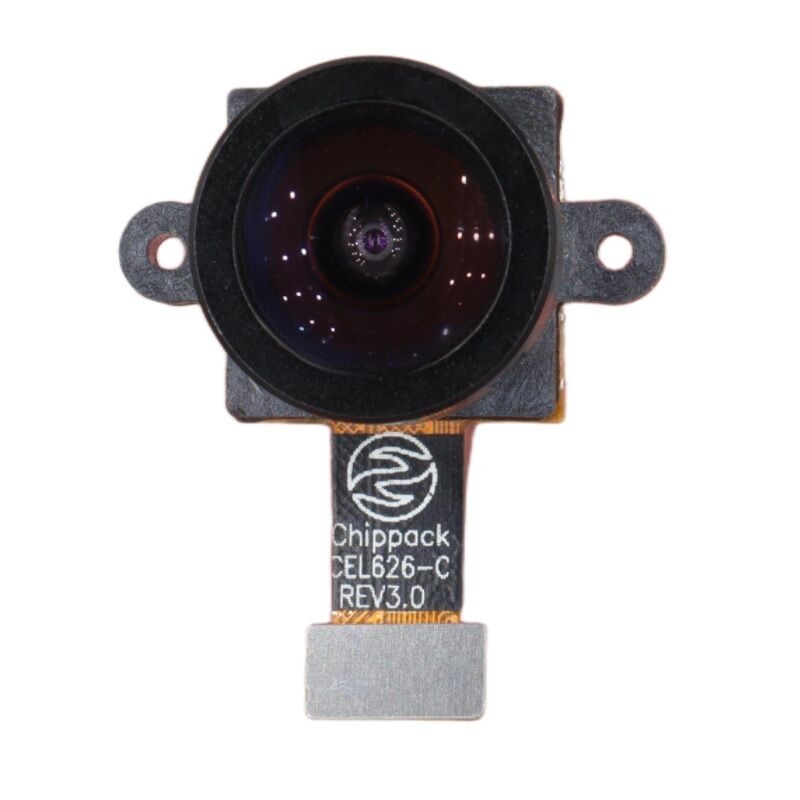

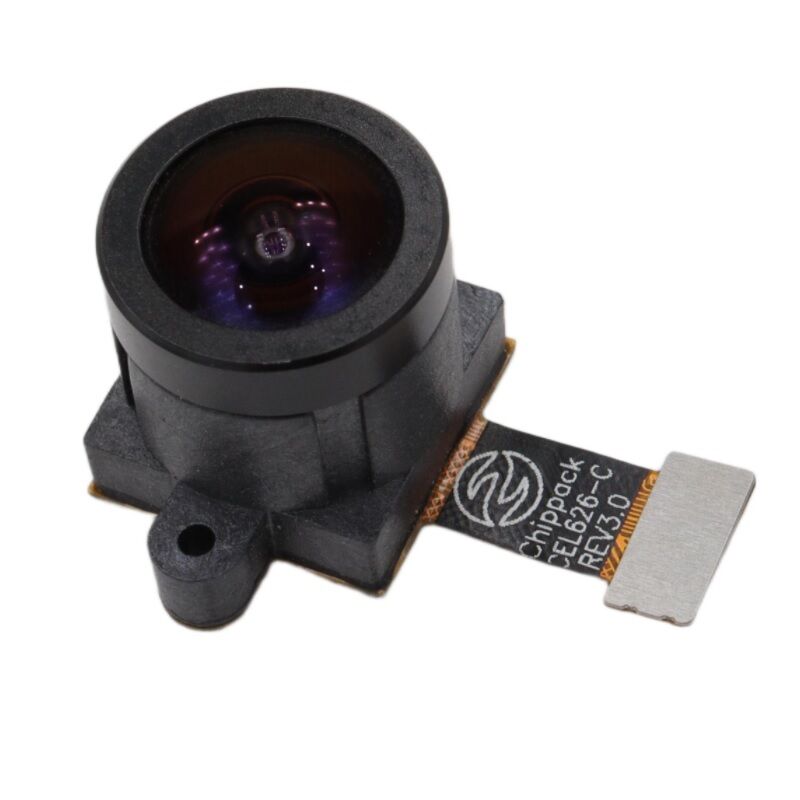

S5K3P3 RGB Rolling Shutter MIPI Camera Module 4632x3480 16MP for Machine Vision

S5K3P3 RGB Rolling Shutter Camera Module , Machine Vision , Biometrics , QR Code , Customization Services Available .

1. Basic Parameters:

- Resolution: 4632 (H) × 3480 (V), 16MP. It supports output at multiple frame rates to meet imaging requirements of various scenarios.

- Pixel Size: 1.0µm(H) × 1.0µm(V). Adopting ISOCELL technology with a unique physical barrier design, it effectively reduces color crosstalk between adjacent pixels, enhances light sensitivity and photon collection capability, and ensures superior image quality.

- Optical Format: 1/3.1 inch. Paired with optical design of this specification, it maintains high resolution while effectively reducing the overall sensor size, facilitating the slim and lightweight design of devices.

- Supply Voltage: Core voltage 1.2V, interface voltage 1.8V, analog voltage 2.95V. It can operate stably under different voltage conditions and guarantee sensor reliability.

- Temperature Range: Operating temperature ranges from -30℃ to 70℃. With a wide operating temperature range, it adapts to diverse working environments.

2. Technical Features:

- Rolling Shutter Technology: Adopts progressive exposure rolling shutter design with low imaging noise and delicate detail restoration. It features high circuit integration, optimized power consumption and cost, suitable for high-definition imaging in static and low-speed scenarios.

- Built with Samsung 65nm Back-Side Illuminated (BSI) CMOS image sensor process. It highly integrates CMOS Image Sensor (CIS), image correction functions and 4-lane MIPI serial transmission module, delivering efficient and low-power operation with a balanced performance and energy consumption. It supports Phase Detection Autofocus (PDAF) for fast autofocus and improved response speed. Equipped with electronic rolling shutter and global reset function, it also supports vertical and horizontal flip modes to adapt to from different angles and application scenarios.

- Integrated with on-chip 10-bit ADC array and Correlated Double Sampling (CDS) circuit, it efficiently reduces Fixed Pattern Noise (FPN) and improves image purity. It integrates functions including defect correction, exposure configuration, white balance adjustment, image scaling and data compression to realize multi-dimensional image optimization, ensuring imaging sharpness and color fidelity, and delivering excellent picture quality even in low-light conditions.

- S5K3P3 Camera Module: Compatible with standard modules with different lens configurations such as 145°, to meet diversified customer demands.

3. Application Fields:

Applied in biometric recognition, drones, smart home, IoT devices, machine vision, barcode scanning, factory automation and other fields.

4. Personalized Customization Services:

Custom modules can be produced tailored to customers' specific requirements, providing customized products that perfectly match individual application needs.
