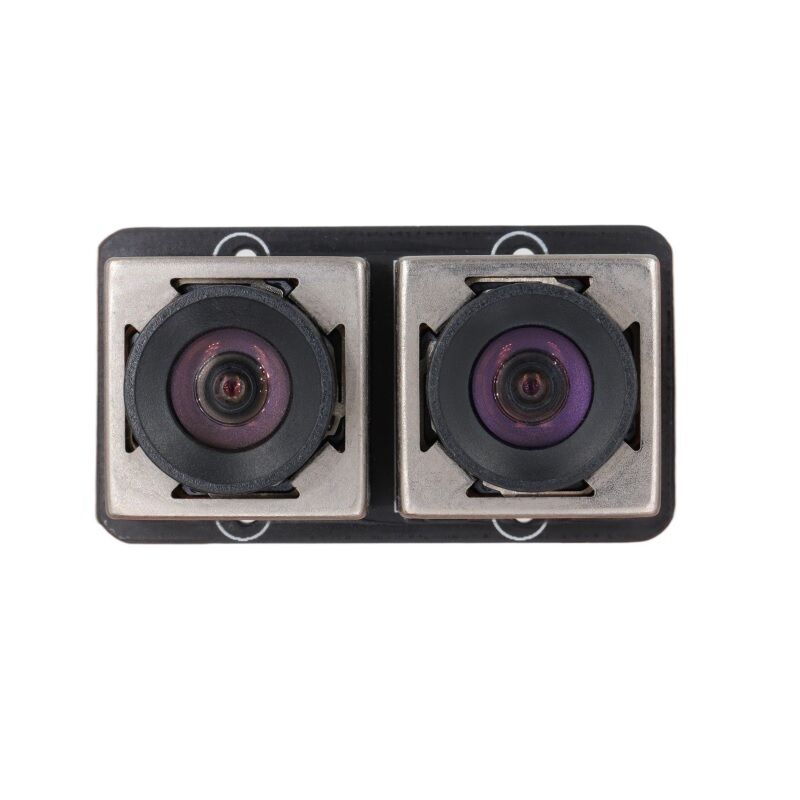

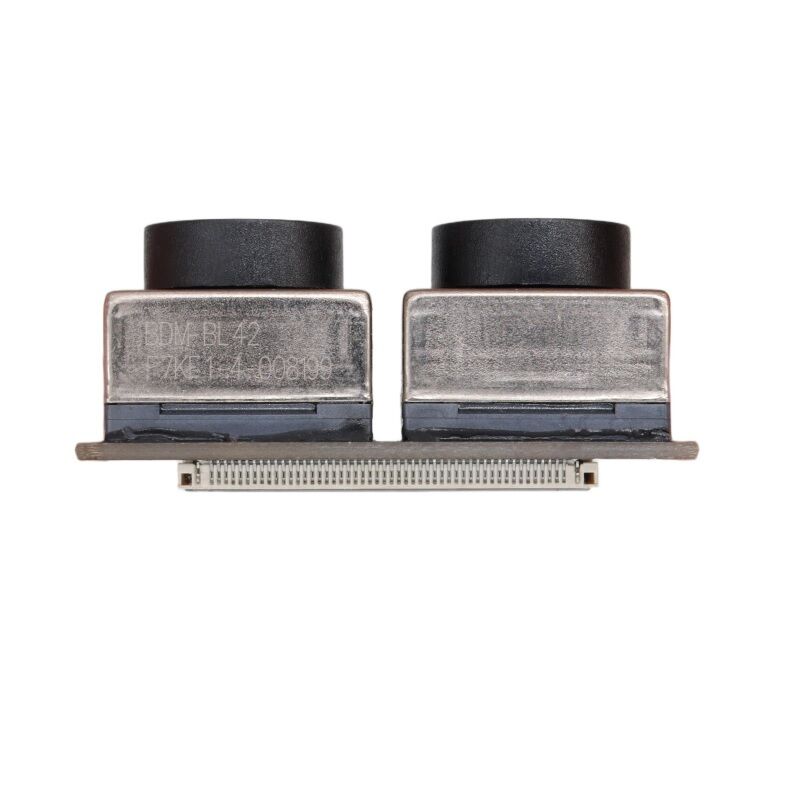

OV2710 OV2735 Rolling Shutter RGB Camera Module For Barcode Scanning

OV2710 And OV2735 RGB Rolling Shutter Camera Module , Machine Vision , Biometrics , QR Code , Customization Services Available .

1. Basic Parameters:

- Resolution: All are 1920(H)×1080(V) with 2MP. Resolution and frame rate modes can be switched according to scenario requirements to balance high-definition image quality and fluency.

- Pixel Size: All are 3.0μm(H)×3.0μm(V). The large pixel size helps improve light absorption efficiency and optimize imaging performance in low-light environments.

- Optical Format: All adopt 1/2.7-inch format, which balances compact design and imaging field of view and fits installation requirements of various scenarios.

- Supply Voltage: The core voltage is 1.5V, interface voltage is 1.8V and analog voltage is 3.3V. It can operate stably under different voltage conditions and ensure sensor reliability.

- Temperature Range: The operating temperature ranges from -30℃ to 85℃. It features a wide operating temperature range and can adapt to diverse working environments.

2. Technical Features:

- Rolling Shutter Technology: Adopting line-by-line exposure rolling shutter design, it delivers low imaging noise and exquisite detail restoration. It also boasts high circuit integration, lower power consumption and cost, making it ideal for high-definition imaging in static and low-speed scenarios.

- Equipped with OmniVision exclusive OmniPixel®3-HS high-sensitivity pixel technology to jointly enhance imaging quality. Among them, OV2710 achieves a low-light sensitivity of 3700mV/lux-sec, a signal-to-noise ratio of 40dB and a peak dynamic range of 69dB. OV2735 inherits the advantages of this pixel technology to realize high-definition and high-fidelity image capture. When working together, they can switch automatically based on lighting conditions, capturing clear images from bright daylight to low-light environments below 15 lux, effectively reducing noise interference and enhancing image detail presentation.

- It supports abundant programmable control functions, and integrates automatic exposure control (AEC), automatic gain control (AGC), automatic white balance (AWB), defective pixel correction (DPC) and other automatic image control functions. Image optimization can be realized via a unified control module to meet imaging demands under different lighting conditions and scenarios. It also supports black sun cancellation function to further improve imaging quality.

- OV2710 and OV2735 camera modules are compatible with standard modules equipped with different lenses such as 78° to meet diverse customer demands.

3. Application Fields:

It is applied in biometric recognition, drones, smart home, IoT devices, machine vision, barcode scanning, factory automation and other fields.

4. Personalized Customization Services:

Custom modules can be produced in a tailored manner according to customer demands to create exclusive products that fully match clients' actual needs.
