Rolling Shutter RGB Camera Module OV08D10 GA5A 3264x2448 For Machine Vision

OV OV08D10 - GA5A RGB Rolling Shutter Camera Module , Machine Vision , Biometrics , QR Code , Customization Services Available .

1.Basic Parameters:

- Resolution: 3264 (H) × 2448 (V), 8 MP; supports 4K ultra-high-definition image output and is compatible with various standard resolution modes, meeting diverse visual quality requirements.
- Pixel dimensions: 1.12 µm (H) × 1.12 µm (V), featuring the PureCel® pixel architecture with compact pixel design that balances high resolution and superior light sensitivity.
- Optical format: 1/4 inch, offering moderate field of view and strong optical compatibility, balancing imaging clarity with compact module design.
- Power supply voltage: The core voltage is 1.2 V, the interface voltage is 1.8 V, and the analog voltage is 2.8 V, enabling stable operation under various voltage conditions and ensuring sensor reliability.

- Temperature range: The operating temperature spans from-30°C to 85°C, offering a wide temperature range suitable for diverse operating environments.

2.Technical Features:

- Curtain shutter technology: Utilizes a line-by-line exposure curtain shutter design, delivering low imaging noise and fine detail reproduction, along with high circuit integration, optimized power consumption, and cost efficiency—ideal for high-definition imaging in static or low-speed scenarios.

- PureCel® back-illuminated pixel technology allows light to directly enter the photosensitive area, significantly enhancing light intake and sensitivity; combined with a trench isolation structure to suppress inter-pixel photoelectric crosstalk and optimize microlens optical path convergence, while leveraging mature manufacturing processes to control dark current and imaging noise, effectively expanding the dynamic range while maintaining accurate color reproduction and excellent low-light performance.
- Featuring an optimized architecture and low-power circuit design, the system minimizes internal circuit losses. Combined with a multi-level dynamic power regulation mechanism that automatically switches power modes based on imaging resolution, frame rate, and scene lighting conditions, it further optimizes MIPI data transmission power consumption and implements power domain partition management. By separating analog and digital power supply circuits to reduce leakage losses, the device delivers excellent power efficiency during imaging operations while significantly lowering energy consumption in sleep/standby states, meeting the long-lasting battery life requirements of portable mobile devices.

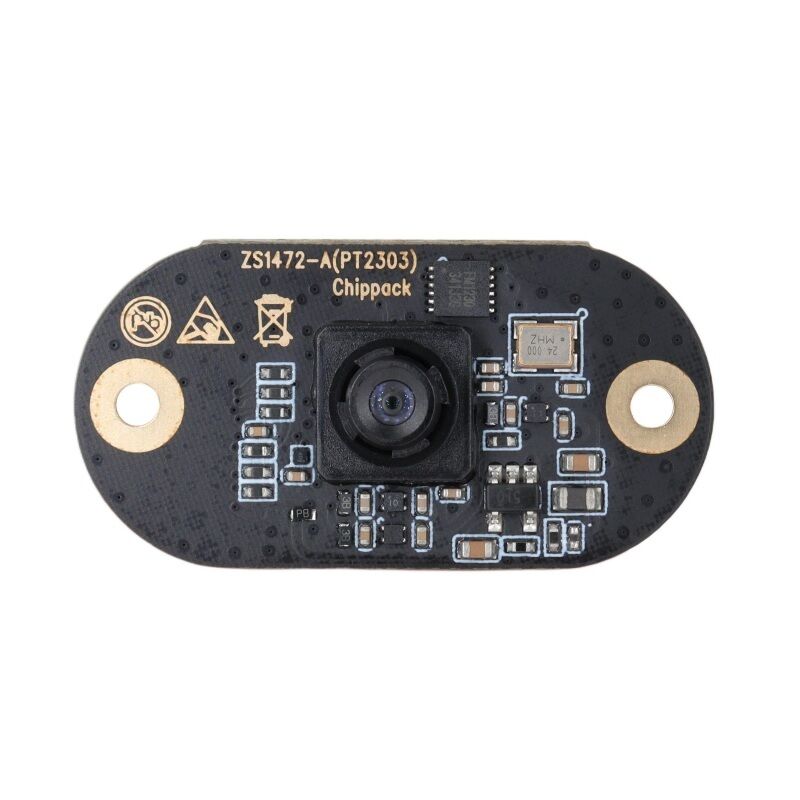

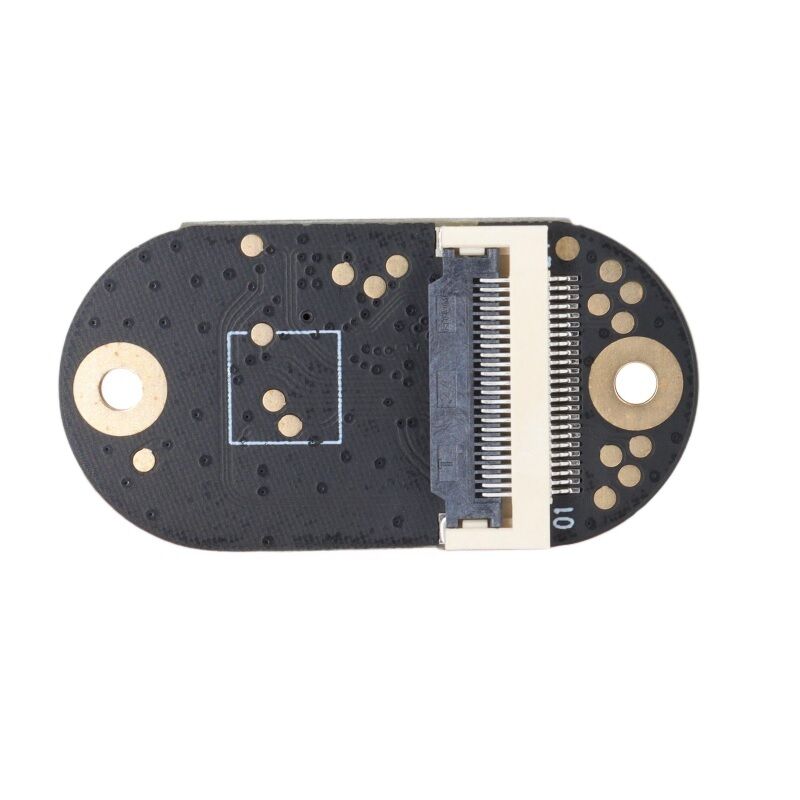

- OV08D10-GA5A Camera Module: Compatible with standard modules for various lens configurations such as 123, meeting diverse customer requirements.

3. Application Fields:

Used in biometrics, drones, smart homes, IoT devices, machine vision, barcode scanning, factory automation, and other applications.

4. Personalized Customization Services:

The modular design enables tailored production based on customer specifications, delivering products precisely tailored to their needs.
