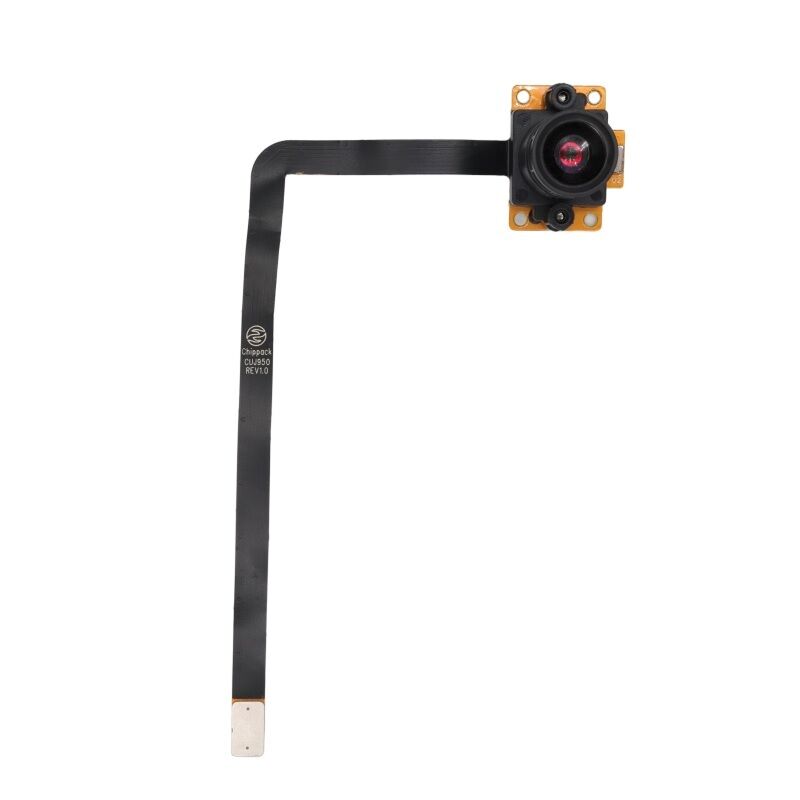

IMX291 RGB Rolling Shutter MIPI Camera Module 99 Degree View 2.07MP for Machine Vision

2.07 MP RGB Rolling 99 - Degree View Shutter Camera Module IMX291 Sensor For Machine Vision , Customization Services Available .

1.Basic Parameters:

- Resolution: 1920 (H) × 1080 (V), 2.07 MP, delivering both high-definition image quality and high-speed video recording performance.

- Pixel dimensions: 2.9 μm (H) × 2.9 μm (V), featuring a square pixel design that significantly increases the light-sensitive area per pixel, enhancing light intake in low-light conditions and improving night vision performance at the hardware level while effectively reducing image noise.

- Optical format: 1/2.8 inch, compact and space-efficient design suitable for various miniaturized module configurations, compatible with mainstream lenses, offering high flexibility in lens selection.

- Power Supply Voltage: The core voltage is 1.2 V, interface voltage is 1.8 V, and analog voltage is 2.9 V, ensuring stable operation under various voltage conditions and guaranteeing sensor reliability.

- Temperature Range: Operating temperature ranges from-10°C to 60°C, offering a wide operational temperature range suitable for diverse environments.

2.Technical Features:

- Roll shutter technology: Featuring a row-by-row exposure roll shutter design, it delivers low imaging noise and fine detail reproduction, high circuit integration, optimized power consumption and cost efficiency, making it ideal for high-definition imaging in static or low-speed scenarios.

- Equipped with STARVIS back-illuminated CMOS technology and Exmor R imaging technology, achieving a sensitivity of up to 0.0005 lux in low-light conditions and producing clear color images without significant blur or noise even under near-zero illumination; the built-in low dark current circuit effectively reduces dark current noise caused by long exposures, delivering image purity that far surpasses competing sensors of similar specifications during nighttime capture.

- Equipped with an integrated hardware dual-exposure wide dynamic range algorithm, it achieves a dynamic range of up to 120 dB and enables robust bright-light suppression and backlight compensation without requiring additional external ISP chips. In complex lighting conditions—including window backlighting, indoor/outdoor contrast variations, and direct streetlight illumination—it simultaneously captures detailed highlights and shadows with clarity, preventing overexposure or black spots, while delivering excellent imaging consistency around the clock.

- IMX291 Camera Module: Compatible with standard modules for various lens configurations including 99mm, meeting diverse customer requirements.

3. Application Fields:

Used in biometrics, drones, smart homes, IoT devices, machine vision, barcode scanning, factory automation, and other applications.

4. Personalized Customization Service:

All customized modules can be manufactured according to specific client needs, delivering tailored solutions that meet unique requirements.
