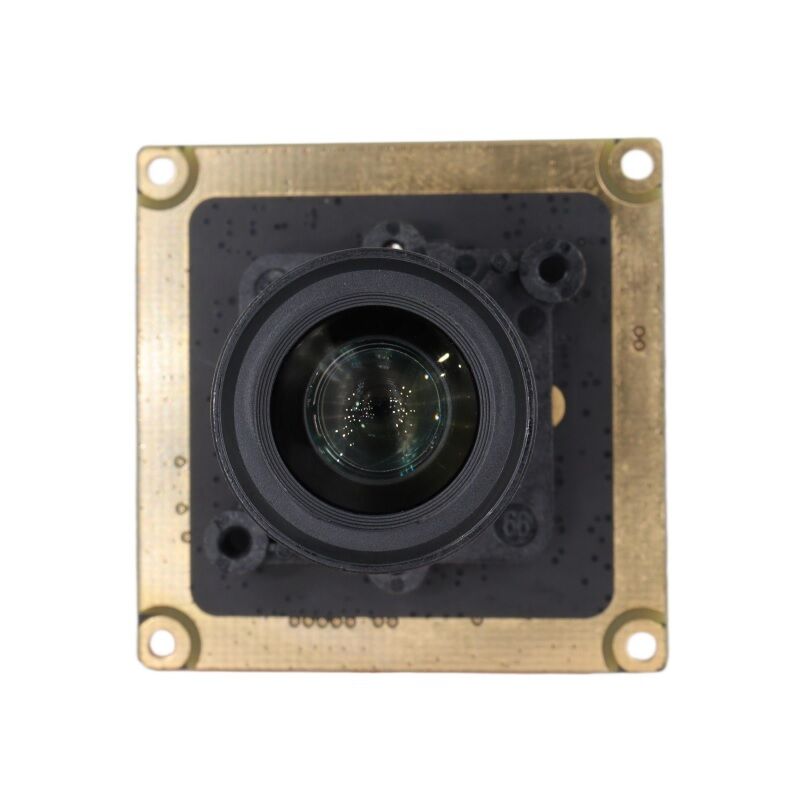

SONY IMX385 Rolling Shutter RGB Camera Module 1945x1097 For Factory Automation

SONY IMX385 RGB Rolling Shutter Camera Module , Machine Vision , Biometrics , QR Code , Customization Services Available .

1.Basic Parameters:

- Resolution: 1945 (H) × 1097 (V), 2.13 MP; delivers smooth, blur-free imaging that meets high-definition real-time requirements.
- Pixel dimensions: 3.75 μm (H) × 3.75 μm (V), offering a larger light-sensitive area that significantly enhances sensitivity in low-light conditions while maintaining image clarity and preventing excessive graininess.
- Optical format: 1/2 inch – a standard industrial optical specification compatible with most conventional optical lenses. Its compact design facilitates easy integration into embedded devices.
- Power Supply Voltage: The core voltage is 1.2 V, the interface voltage is 1.8 V, and the analog voltage is 3.3 V, ensuring stable operation under various voltage conditions and guaranteeing sensor reliability.

- Temperature Range: Operating temperature ranges from-10°C to 60°C, offering a wide operational temperature range suitable for diverse working environments.

2.Technical Features:

- Rolling shutter technology: Utilizes a rolling shutter design with sequential exposure, delivering low imaging noise and fine detail reproduction, along with high circuit integration, optimized power consumption, and cost efficiency, making it ideal for high-definition imaging in static or low-speed scenarios. - Built on the Exmor R back-illuminated CMOS architecture, featuring a front-mounted photosensitive layer that significantly enhances light utilization compared to traditional front-illuminated sensors; capable of producing clear color images even under extremely low light conditions (down to 0.001 lux) without requiring infrared fill lights, effectively addressing issues of black-and-white contrast, blurriness, and excessive noise in nighttime surveillance footage. Equipped with an ultra-low dark current process, it provides excellent dark noise control in still images, ensuring no bright spots or snow-like noise during prolonged imaging, making it suitable for continuous recording and industrial inspection applications.
- Equipped with an integrated hardware-based wide dynamic range algorithm that supports backlit and strong-light suppression, it effectively preserves both bright details and dark textures in scenes with extreme contrast between light and shadow, preventing issues such as overexposure of highlights or loss of detail in dark areas, while delivering optimal imaging performance under complex lighting conditions.
- IMX385 Camera Module: Compatible with standard modules for various lens configurations including 120mm, meeting diverse customer requirements.

3. Application Fields:

Used in biometrics, drones, smart homes, IoT devices, machine vision, barcode scanning, factory automation, and other applications.

4. Personalized Customization Service:

All customized modules can be manufactured according to specific client needs, delivering tailored solutions that meet individual requirements.
