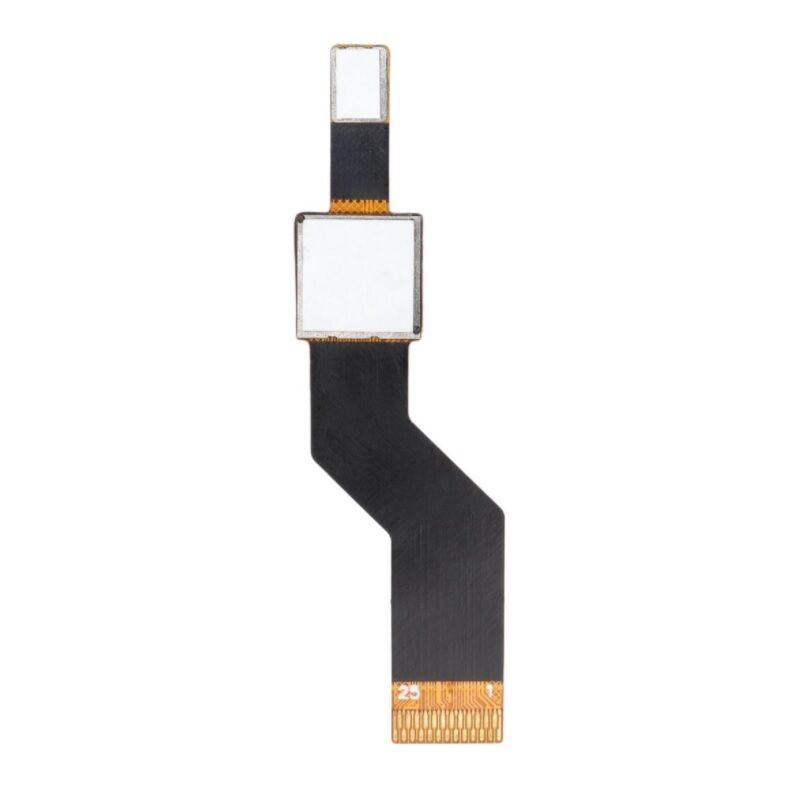

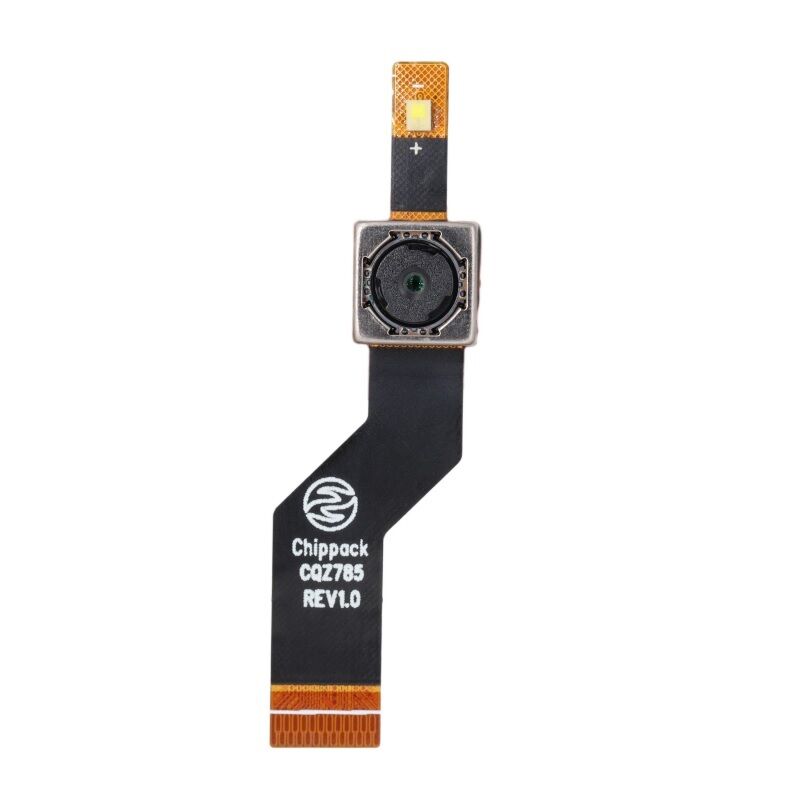

RGB Rolling Shutter GC5025 Camera Module 2592x1944 for Biometrics

GC GC5025 RGB Rolling Shutter Camera Module , Machine Vision , Biometrics , QR Code , Customization Services Available .

1. Basic Parameters:

- Resolution: 2592 (H) × 1944 (V), 5 MP, compatible with various backend control chips for image reception, delivering excellent detail reproduction.
- Pixel dimensions: 1.12 μm (H) × 1.12 μm (V). This compact pixel design addresses both the requirements for miniaturized sensor packaging and optimal light sensitivity, ensuring sufficient light intake in low-light conditions while minimizing chip size and balancing physical dimensions with image quality.
- Optical format: 1/5 inch, compact in size, ideal for integration into various slim and portable terminal devices, compatible with miniaturized hardware design solutions.
- Power Supply Voltage: The core voltage is 1.2 V, the interface voltage is 1.8 V, and the analog voltage is 2.8 V, ensuring stable operation under various voltage conditions and guaranteeing sensor reliability.

- Temperature Range: Operating temperature ranges from-20°C to 70°C, providing a wide operational temperature range suitable for diverse working environments.

2. Technical Features:

- Rolling shutter technology: Utilizes a rolling shutter design with sequential exposure, delivering low image noise and fine detail reproduction, along with high circuit integration, optimized power consumption, and cost efficiency, making it ideal for high-definition imaging in static or low-speed scenarios. - Built-in 10-bit high-precision ADC and lightweight on-chip ISP image processing unit enable basic image optimization without requiring additional external chips, simplifying the overall hardware design; coupled with excellent power management, it significantly extends battery life in portable devices. Supports PLL (Phase-Locked Loop) clock control for flexible sensor frame rate adjustment, supporting both standard 30 fps operation and low-frame-rate power-saving modes, balancing imaging smoothness with energy efficiency.
- Supports horizontal/vertical image mirroring and window cropping functions, enabling targeted image extraction for specific needs. Equipped with a built-in 2K-bit OTP (One-Time Programmable) memory that stores module distortion parameters, white balance settings, and device-specific information permanently, eliminating repeated calibration requirements and ensuring consistent imaging quality.
- GC5025 Camera Module: Compatible with standard modules for various lens configurations including 58mm, meeting diverse customer requirements.

3. Application Fields:

Used in biometrics, drones, smart homes, IoT devices, machine vision, barcode scanning, factory automation, and other applications.

4. Personalized Customization Service:

All customized modules can be manufactured according to specific client needs, delivering tailored solutions that meet unique requirements.
