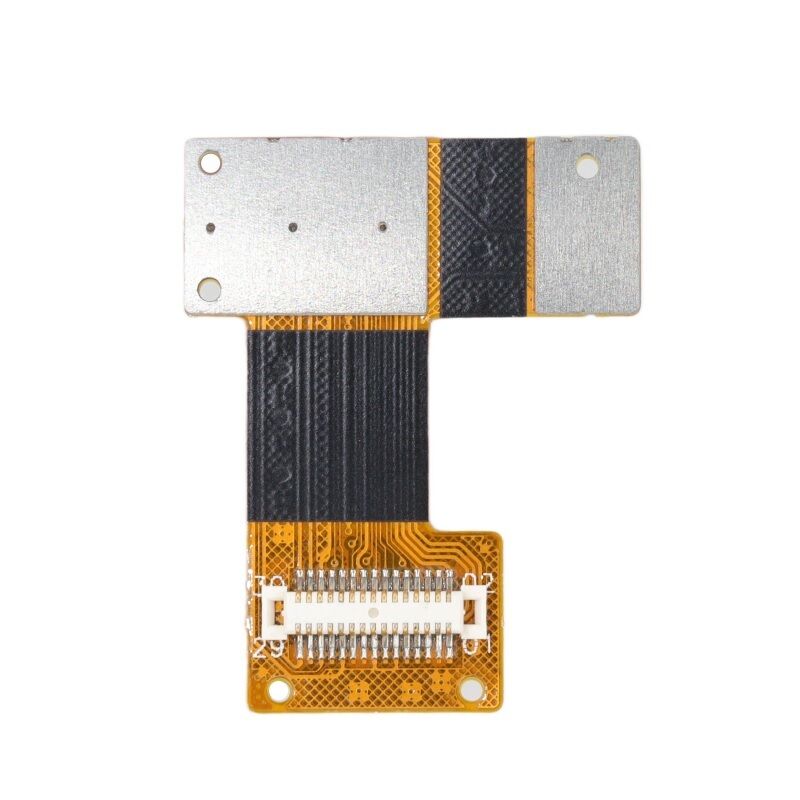

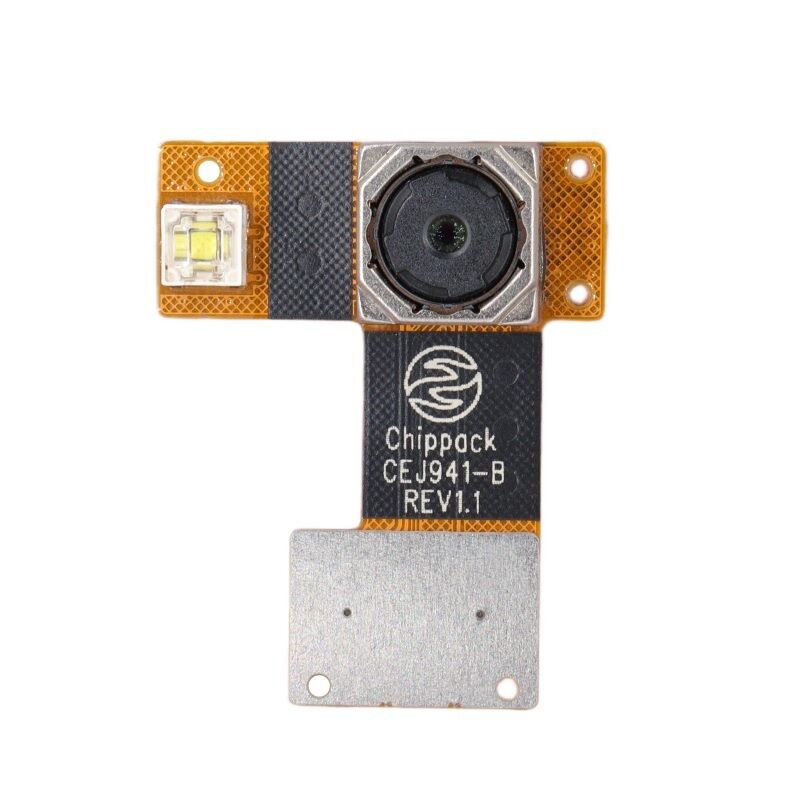

QR Code OV8865 Camera Module RGB Rolling Shutter 3264x2488 Customized

OV OV8865 RGB Rolling Shutter Camera Module , Machine Vision , Biometrics , QR Code , Customization Services Available .

1.Basic Parameters:

- Resolution: 3264 (H) × 2488 (V), 8 MP; supports multi-level cropping resolution output, enabling 30 fps HD image output at full resolution.
- Pixel dimensions: 1.4 µm (H) × 1.4 µm (V), featuring OmniBSI-2 back-illuminated pixels with optimized light-sensitive structures that significantly increase the photosensitive area and markedly enhance light transmission in low-light conditions.
- Optical format: 1/3.2 inches; the compact chip size facilitates miniaturized module design and is compatible with various compact terminal devices.
- Power Supply Voltage: The core voltage is 1.2 V, the interface voltage is 1.8 V, and the analog voltage is 2.8 V, ensuring stable operation under various voltage conditions and guaranteeing sensor reliability.

- Temperature Range: Operating temperature ranges from-30°C to 85°C, offering a wide operational temperature range suitable for diverse working environments.

2.Technical Features:

- Rolling shutter technology: Utilizes a rolling shutter design with sequential exposure, delivering low image noise and fine detail reproduction, high circuit integration, optimized power consumption and cost efficiency, making it ideal for high-definition imaging in static or low-speed scenarios.

- Features OmniBSI-2 back-illuminated pixel technology, reducing dark current by 50% compared to previous-generation sensors and significantly decreasing native image noise; the dynamic range is increased by 5%, ensuring better detail retention in both bright and dark scenes, while producing clear, sharp images under backlighting, night conditions, or low indoor lighting.
- Features an integrated built-in temperature sensor for real-time monitoring of the chip's operating temperature, working in conjunction with the system's thermal control strategy to prevent damage caused by overheating; supports two low-power modes—hardware power-off sleep and software standby—and is compatible with device standby and wake-up operation logic. Includes built-in automatic black level calibration and a static bad pixel elimination algorithm that automatically corrects image artifacts and compensates for background color deviations without requiring additional backend image processing, thereby simplifying overall development complexity.
- OV8865 Camera Module: Compatible with standard modules for various lens configurations including 77mm, meeting diverse customer requirements.

3. Application Fields:

Used in biometrics, drones, smart homes, IoT devices, machine vision, barcode scanning, factory automation, and related applications.

4. Personalized Customization Service:

All customized modules can be manufactured according to specific client needs, delivering tailored solutions that meet unique requirements.
