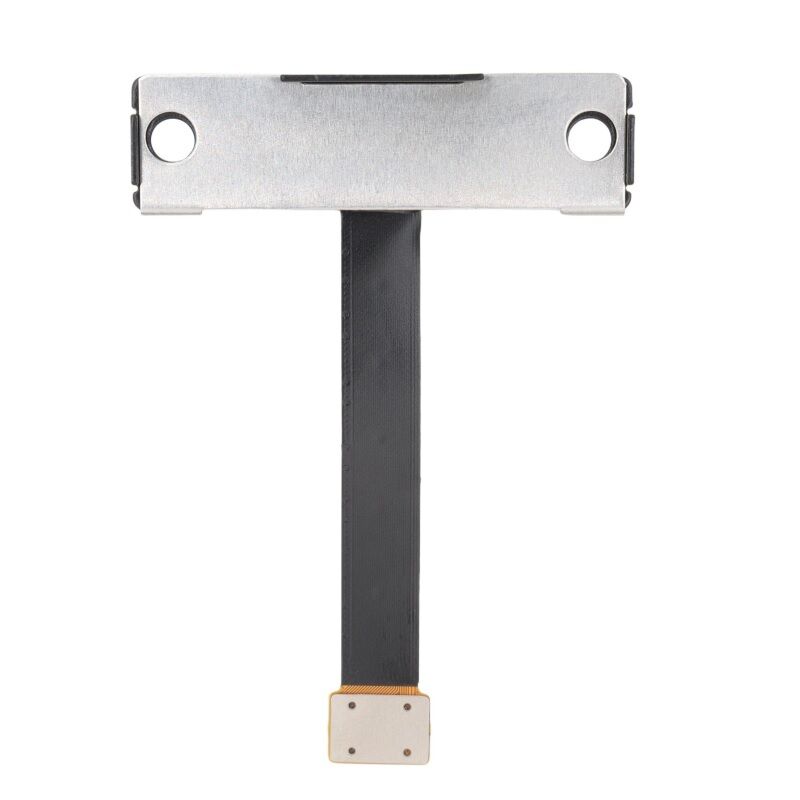

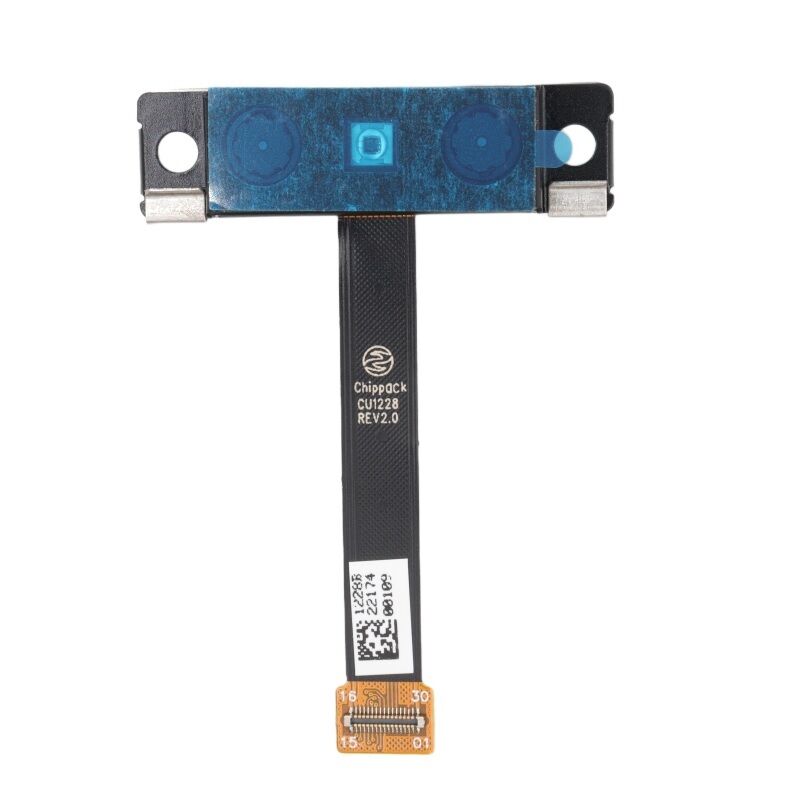

RGB 850 IR Rolling Shutter MIPI Camera Module 90 Perspective 2 MP With BF2253L Sensor

2 MP RGB - 850 IR Rolling Shutter 90 Perspective MIPI Camera Module With BF2253L Sensor , Customization Services Available .

1.Basic Parameters:

- Resolution: 1600 (H) × 1200 (V), 2 MP; dual video streams operate with perfectly synchronized frame rates and no delay difference.

- Pixel dimensions: 1.75 μm (H) × 1.75 μm (V), paired with high-quality RGB Bayer filters for precise color reproduction in daylight conditions, delivering exceptional image clarity and consistent binocular imaging performance.

- Optical format: 1/5 inch, featuring a module-integrated dual-optical path with an integrated IR850 infrared cut-off switching filter, designed for round-the-clock imaging capabilities.

- Power Supply Voltage: The core voltage is 2.8 V, the interface voltage is 1.8 V, and the analog voltage is 2.8 V, ensuring stable operation under various voltage conditions and guaranteeing sensor reliability.

- Temperature Range: Operating temperature ranges from-20°C to 70°C, providing a wide operational temperature range suitable for diverse working environments.

2.Technical Features:

- Rolling shutter technology: Utilizes a rolling shutter design with sequential exposure, delivering low imaging noise and fine detail reproduction, along with high circuit integration, optimized power consumption, and cost efficiency, making it ideal for high-definition imaging in static or low-speed scenarios. - Integrated binocular design eliminates the need for external stitching, resulting in a more compact overall structure and enhanced installation compatibility; both sensors feature identical hardware specifications, with optical paths pre-calibrated at factory production ensuring high baseline accuracy, while achieving natural color, brightness, and exposure parameter alignment between the two camera views, eliminating the need for subsequent software registration and calibration. Equipped with an IR850 infrared illumination system that supports infrared night vision imaging and delivers high-fidelity RGB color images during daylight; at night, it utilizes 850 nm infrared illumination to produce clear black-and-white images even under zero-light conditions.

- Equipped with an on-chip CDS-based dual sampling noise reduction circuit combined with the chip's native ultra-low dark noise technology, it effectively suppresses dark current noise even under high-temperature operating conditions, addressing issues of image graying and noise accumulation during prolonged use. It supports automatic black level compensation and black sun elimination, preventing overexposure and harsh light spots in bright backlight scenarios.

- BF2253L Camera Module: Compatible with standard modules for various lens configurations (including 90mm), meeting diverse customer requirements.

3. Application Areas:

Used in biometrics, drones, smart homes, IoT devices, machine vision, barcode scanning, factory automation, and related fields.

4. Personalized Customization Services:

All customized modules can be manufactured according to specific client specifications, delivering tailored solutions that meet individual needs.
