Brand Name:
Chippack
Model Number:
OV5648

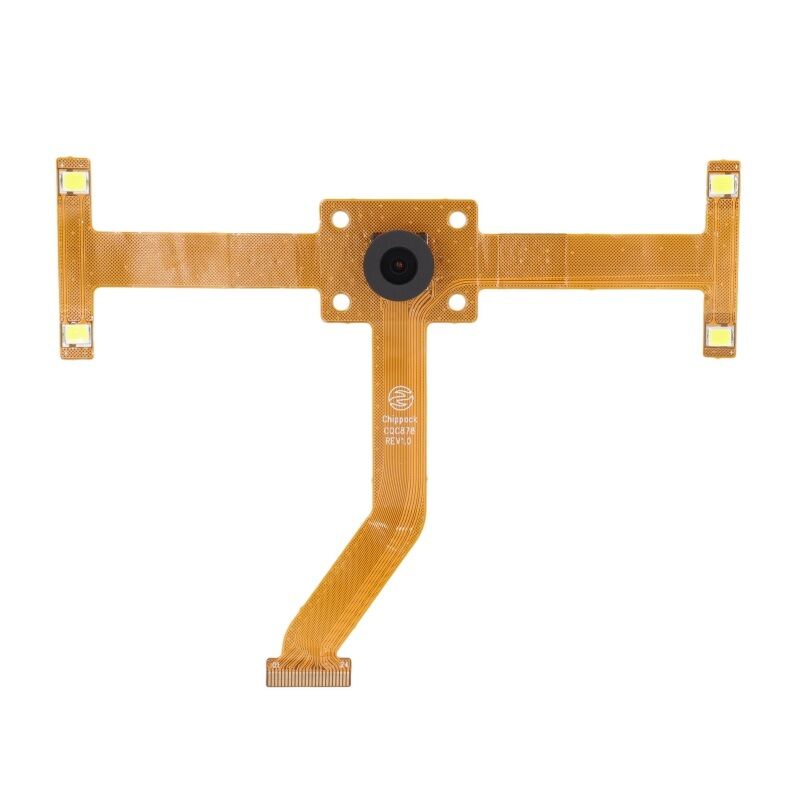

5 MP RGB Rolling 130 - Degree View Shutter Camera Module OV5648 Sensor For Machine Vision , Customization Services Available .
1.Basic Parameters:
- Resolution: 2592 (H) × 1944 (V), 5 MP, suitable for both high-definition still photography and high-speed video recording.
- Pixel dimensions: 1.4 µm (H) × 1.4 µm (V), featuring a back-illuminated pixel design that reduces module volume while maintaining high sensitivity per pixel, achieving optimal balance between compact packaging and low-light imaging performance.
- Optical format: 1/4 inch, compatible with mainstream compact lens architectures and supporting various lens extensions to meet diverse framing requirements.
- Power Supply Voltage: The core voltage is 1.5 V, the interface voltage is 1.8 V, and the analog voltage is 2.8 V, ensuring stable operation under various voltage conditions and guaranteeing sensor reliability.
- Temperature Range: Operating temperature ranges from-30°C to 70°C, offering a wide operational temperature range suitable for diverse working environments.
2.Technical Features:
- Rolling shutter technology: Utilizes a rolling shutter design with sequential exposure, delivering low image noise and fine detail reproduction, high circuit integration, optimized power consumption and cost efficiency, making it ideal for high-definition imaging in static or low-speed scenarios.
- Equipped with the upgraded OmniBSI+ back-illuminated imaging technology, which significantly enhances light intake compared to traditional front-illuminated sensors, effectively reduces pixel crosstalk and image noise; even in low-light conditions without additional lighting, it produces clean images with accurate color reproduction, addressing issues of grayish images and excessive noise at night.
- It integrates four core image processing functions: AEC (Automatic Exposure Control), AGC (Automatic Gain Control), AWB (Automatic White Balance), and ABLC (Backlight Compensation), enabling automatic adaptation to complex lighting conditions such as bright light, backlighting, or low-light environments. The system dynamically adjusts image brightness, color, and contrast in real time, eliminating the need for manual image calibration on the backend control chip and simplifying software development.
- OV5648 Camera Module: Compatible with standard modules for various lens configurations including 130mm, meeting diverse customer requirements.
3. Application Fields:
Used in biometrics, drones, smart homes, IoT devices, machine vision, barcode scanning, factory automation, and related applications.
4. Personalized Customization Services:
All customized modules can be manufactured according to specific client needs, delivering tailored solutions that meet individual requirements.
