Brand Name:
Chippack
Model Number:
GC5035

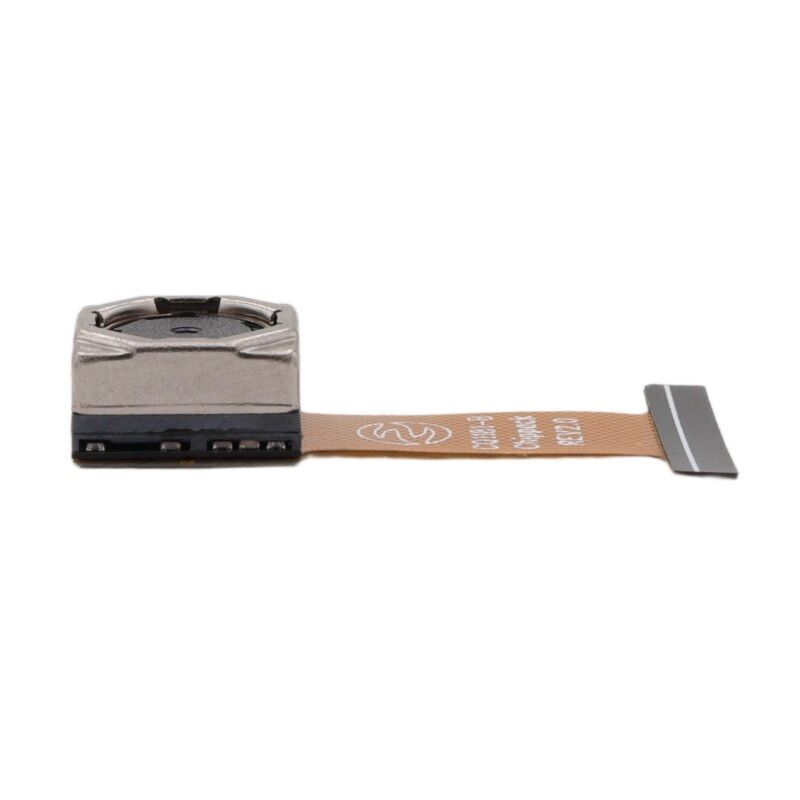

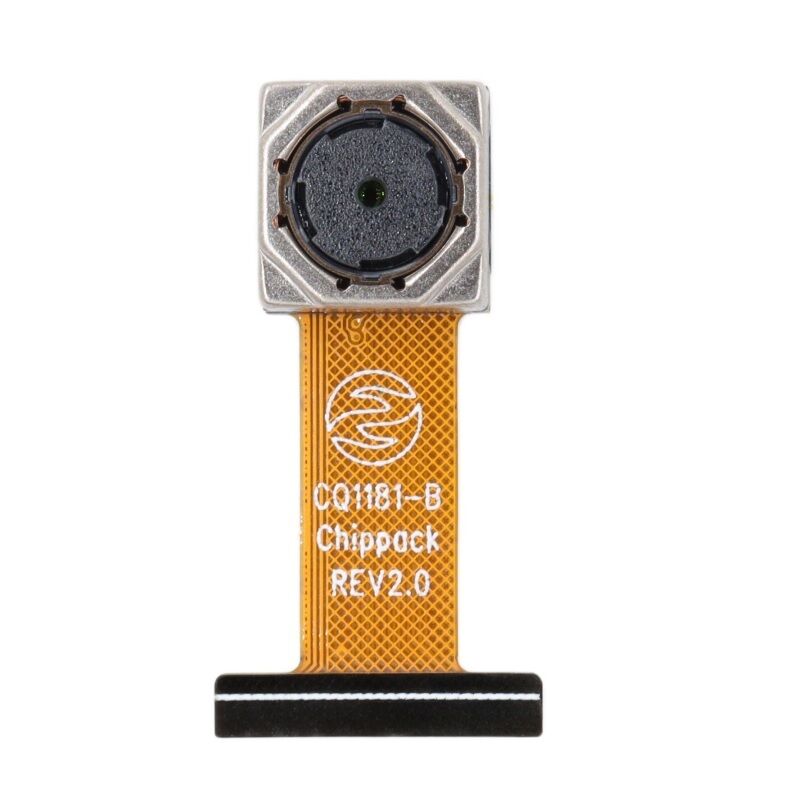

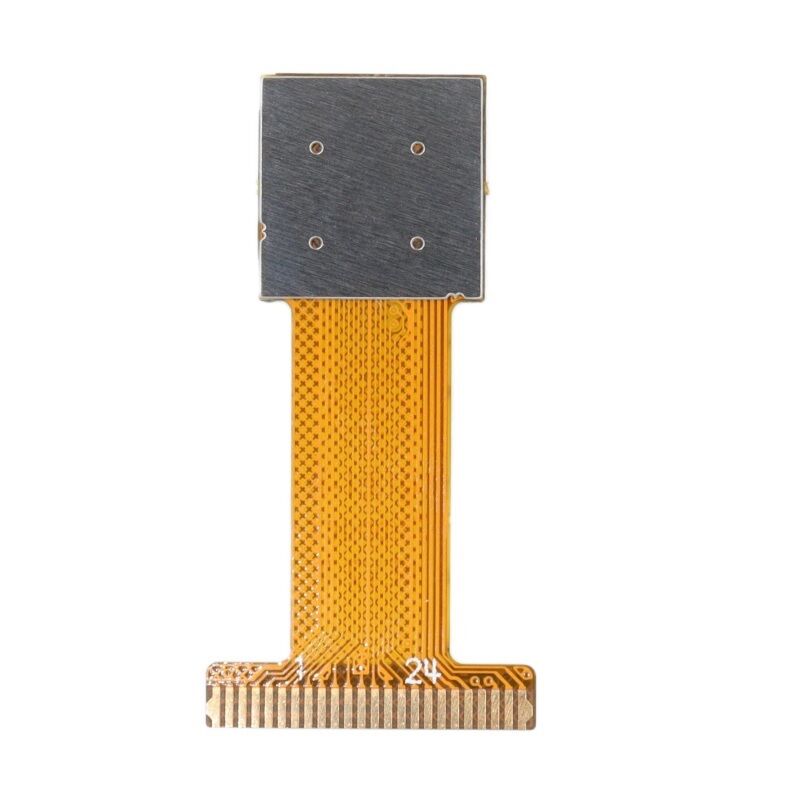

GC GC5035 RGB Rolling Shutter Camera Module , Machine Vision , Biometrics , QR Code , Customization Services Available .
1. Basic Parameters:
- Resolution: 2592 (H) × 1944 (V), 5 MP; delivers clear and smooth image quality, meeting daily basic imaging needs.
- Pixel dimensions: 1.12 μm (H) × 1.12 μm (V), featuring a back-side illumination (BSI) pixel design with an optimized light-sensitive area that significantly enhances light sensitivity and imaging detail, achieving both compact size and high-definition performance.
- Optical format: 1/5 inch, compatible with various compact lens modules, offering strong adaptability to meet the lens installation requirements of slim and lightweight devices.
- Power Supply Voltage: The core voltage is 1.2 V, the interface voltage is 1.8 V, and the analog voltage is 2.8 V, ensuring stable operation under various voltage conditions and guaranteeing sensor reliability.
- Temperature Range: Operating temperature ranges from-30°C to 70°C, providing a wide operational temperature range suitable for diverse working environments.
2. Technical Features:
- Rolling shutter technology: Utilizes a rolling shutter design with sequential exposure, delivering low image noise and fine detail reproduction, along with high circuit integration, optimized power consumption, and cost efficiency, making it ideal for high-definition imaging in static or low-speed scenarios. - Built-in 10-bit high-precision on-chip ADC paired with an optimized image processing module, offering a high dynamic range of 64.7 dB and a signal-to-noise ratio of 37 dB, with dark current as low as 3 μA/s (at 60°C), effectively suppressing image noise and enhancing depth perception. The sensor employs an RGB Bayer color array for precise color reproduction, supports horizontal and vertical mirror imaging, accommodates various installation configurations and viewing angles, and delivers clear, detailed images under diverse lighting conditions.
- Supports multiple packaging formats including COB, CSP, and COM, featuring compact size that accommodates thin-and-light, miniaturized module designs. It flexibly adapts to equipment structures of various dimensions, balancing product miniaturization with performance stability while meeting diverse hardware integration requirements.
- GC5035 Camera Module: Compatible with standard modules for various lens configurations (including 74mm), meeting diverse customer requirements.
3. Application Fields:
Used in biometrics, drones, smart homes, IoT devices, machine vision, barcode scanning, factory automation, and related applications.
4. Personalized Customization Service:
All customized modules can be manufactured according to specific client specifications, delivering tailored solutions that meet unique needs.
