MONO IR / RGB Rolling 73 Degree View Shutter OV2710 Camera Module 2MP For Biometrics

MONO IR / RGB Rolling 73 Degree View Shutter OV2710 Camera Module 2MP For Biometrics

73 Degree View Shutter Camera Module

Biometrics OV2710 Sensor

RGB OV2710 Camera Module

Brand Name:

Chippack

Model Number:

OV2710

Chat Now
Request A Quote
Product Details
Sensor Type:
OV2710
Sensor Brand:
OV
Active Array Size:
1920* 1080
Pixel Size:
3μm*3μm
Optical Format:
1/2.7 Inches
Power:
3.3V/2.8V/1.5V
Operating Temperature:
-30℃ To 70℃
Shutter:
RS
Color:
MONO-IR/RGB
Focus Mode:
FF
Max Frame Rates:
30fps
Data Interface:
1 Lane MIPI Interface/DVP
Camera Size:
Supports Rapid Sample Customization
FOV:
DFOV:20°-180°(Optional Or Customized)
IR Filter:
Clear/650nm/850nm/940nm(Optional Or Customized)
Highlight:

73 Degree View Shutter Camera Module

,

Biometrics OV2710 Sensor

,

RGB OV2710 Camera Module

Payment & Shipping Terms
Product Description

2 MP MONO - IR/RGB Rolling 73 - Degree View Shutter Camera Module OV2710 Sensor For Biometrics , Customization Services Available .



1.Basic Parameters:

- Resolution: 1920 (H) × 1080 (V), 2 MP; no frame rate lag or image delay, meeting high-definition imaging requirements.

- Pixel dimensions: 3 μm (H) × 3 μm (V), featuring OmniPixel3-HS™ high-definition imaging technology that offers large per-pixel sensitivity and exceptional light responsiveness, significantly enhancing image clarity in low-light conditions while minimizing noise generation.

- Optical format: 1/2.7 inches, compatible with the standard M12 lens mount; the module supports both conventional visible-light and infrared-specific lenses, featuring clear spectral division and exceptional compatibility.

- Power Supply Voltage: The core voltage is 1.5 V, the interface voltage is 2.8 V, and the analog voltage is 3.3 V, ensuring stable operation under various voltage conditions and guaranteeing sensor reliability.

- Temperature Range: Operating temperature ranges from –30°C to 70°C, offering a wide operational temperature range suitable for diverse working environments.



2.Technical Features:

- Rolling shutter technology: Utilizes a rolling shutter design with row-by-row exposure, delivering low imaging noise and fine detail reproduction, along with high circuit integration, optimized power consumption, and reduced cost, making it ideal for high-definition imaging in static or low-speed scenarios.

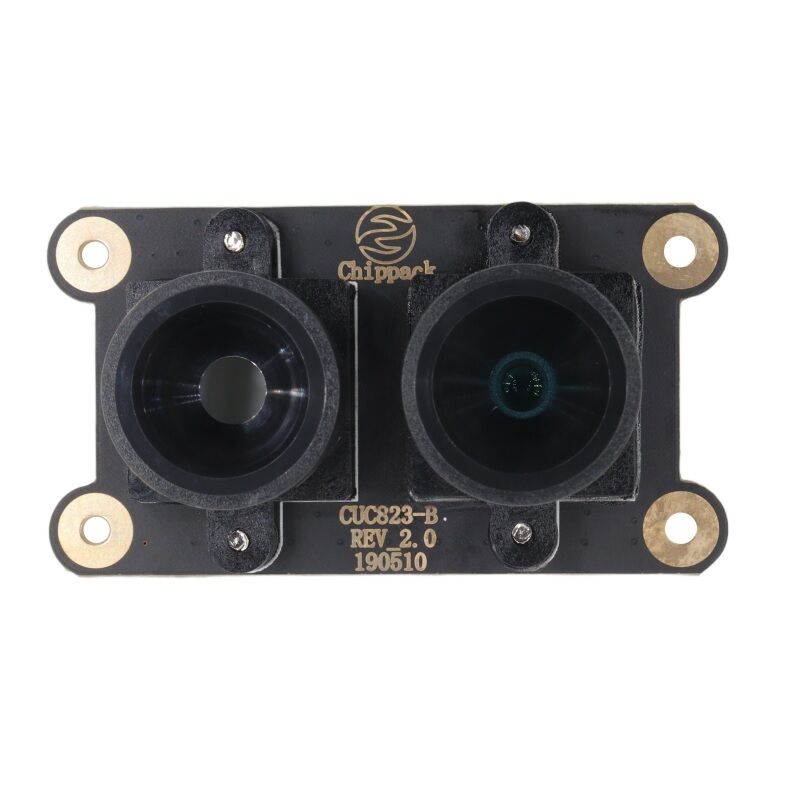

- Integrated PCB layout design combines the IR650 visible light chip and the IR850 infrared night vision chip within a single module, resulting in a more compact structure and easier installation. The two chips operate independently without interference, enabling simultaneous execution of visible light color imaging and infrared black-and-white night vision imaging for seamless day-night image switching, thereby addressing issues such as image quality degradation and limited spectral adaptability associated with traditional single-chip modules.

- Equipped with self-developed high-sensitivity imaging technology, it achieves a minimum illumination level of 0.05 Lux, ensuring clear image quality even in ultra-low-light conditions while effectively suppressing issues such as noise, blur, and ghosting. The dual-chip design synchronously optimizes dynamic range, enabling adaptation to diverse lighting scenarios—from bright backlit environments to dim low-light conditions—while preventing overexposure or underexposure, delivering exceptional imaging stability across all ambient light levels.

- OV2710 Camera Module: Compatible with standard modules for various lens configurations (including 73mm), meeting diverse customer requirements.



3. Application Areas:

Used in biometrics, drones, smart homes, IoT devices, machine vision, barcode scanning, factory automation, and related fields.



4. Personalized Customization Service:

All customized modules can be manufactured according to specific client needs, delivering tailored solutions that meet unique requirements.
