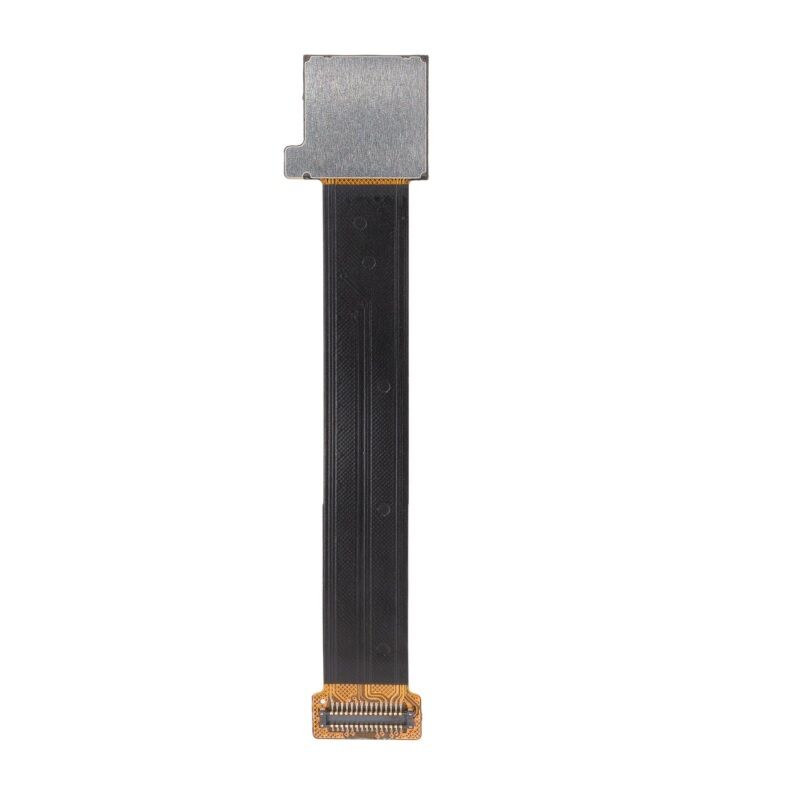

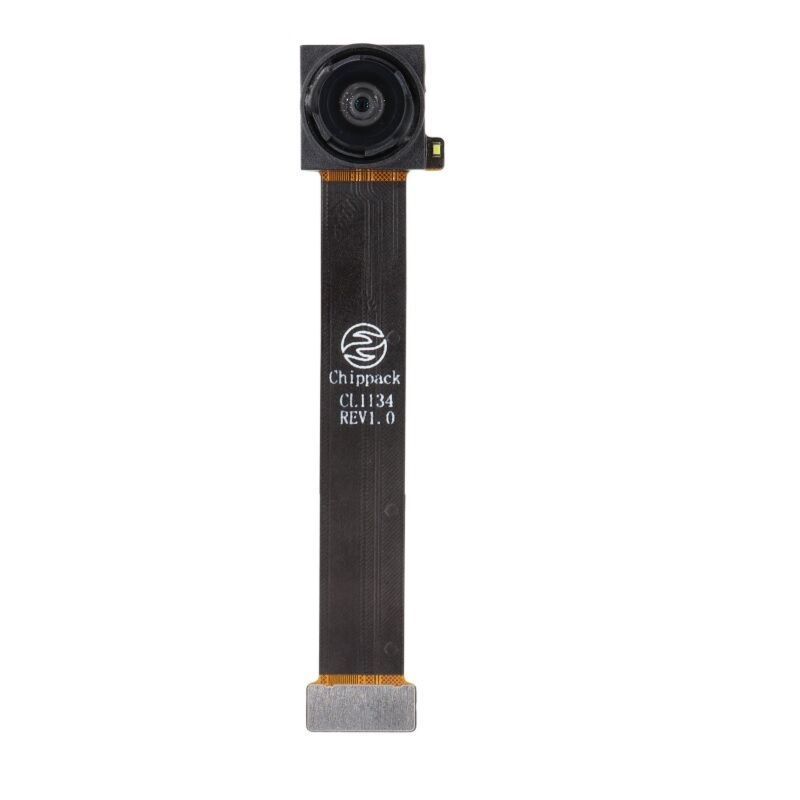

S5K2L7SA Rolling Shutter RGB Camera Module 1.4μmx1.4μm Pixel for Biometrics

S5K2L7SA RGB Rolling Shutter Camera Module , Machine Vision , Biometrics , QR Code , Customization Services Available .

1.Basic Parameters:

- Resolution: 4032 (H) × 3024 (V), 12 MP, offering high image clarity that meets basic imaging requirements such as static image capture with excellent detail reproduction.
- Pixel dimensions: 1.4 µm (H) × 1.4 µm (W). The larger pixel size significantly increases light intake per pixel, effectively enhances imaging performance in low-light conditions, reduces image noise, and improves image clarity and dynamic range.
- Optical format: 1/2.56 inches, compatible with various slim camera device architectures, balancing imaging performance and portability.
- Power Supply Voltage: The core voltage is 1.05 V, interface voltage is 1.8 V, and analog voltage is 2.8 V, ensuring stable operation under various voltage conditions and guaranteeing sensor reliability.

- Temperature Range: Operating temperature ranges from-30°C to 85°C, providing a wide operational temperature range suitable for diverse working environments.

2.Technical Features:

- Roll shutter technology: Utilizes a roll shutter design with sequential exposure, delivering low image noise and fine detail reproduction, high circuit integration, optimized power consumption and cost efficiency, making it ideal for high-definition imaging in static or low-speed scenarios.

- Dual Pixel dual-core autofocus technology: Each pixel possesses independent focusing and imaging capabilities, achieving nearly 100% pixel coverage. Compared to traditional autofocus systems, this technology significantly enhances focusing speed, enabling millisecond-level rapid focus and supporting continuous tracking to accurately capture moving subjects, effectively preventing image blur and delivering clear, stable imaging results.
- Utilizing ISOCELL pixel isolation technology, it effectively suppresses inter-pixel light crosstalk through a physical isolation structure, significantly reducing color artifacts and false colors. This substantially enhances color accuracy and image contrast, delivering true-to-life, naturally rendered images with clear depth. It also improves imaging performance in low-light conditions, ensuring high-definition, clean images even under dim lighting.
- S5K2L7SA Camera Module: Compatible with standard modules for various lens configurations including 128mm, meeting diverse customer requirements.

3. Application Fields:

Used in biometrics, drones, smart homes, IoT devices, machine vision, barcode scanning, factory automation, and other applications.

4. Personalized Customization Service:

All customized modules can be manufactured according to specific client needs, delivering tailored solutions that meet individual requirements.
