SONY IMX214 13MP MIPI Camera Sensor 4208x3120 Rolling Shutter for Machine Vision

SONY IMX214 RGB Rolling Shutter Camera Module , Machine Vision , Biometrics , QR Code , Customization Services Available .

1. Basic Parameters:

- Resolution: 4208 (H) x 3120 (V), 13.13MP. It supports full-frame high-definition imaging and is compatible with multiple resolutions for diverse scenarios, delivering excellent performance in presenting imaging details.

- Pixel Size: 1.12μm(H)×1.12μm(V). Equipped with an optimized pixel architecture, it maintains high pixel density for high-definition imaging while effectively enhancing the light sensitivity of individual pixels, striking a balance between image resolution and light intake.

- Optical Format: 1/3.06 inch. Featuring a compact and lightweight overall size, it adapts to miniaturized module designs and can be flexibly installed on various portable devices.

- Supply Voltage: Core voltage 1.0V, interface voltage 1.8V, analog voltage 2.7V. It operates stably under various voltage conditions and ensures reliable performance of the sensor.

- Temperature Range: Operating temperature ranges from -30℃ to 85℃. With a wide operating temperature range, it can adapt to various working environments.

2. Technical Features:

- Rolling Shutter Technology: Adopting a line-by-line exposure rolling shutter design, it produces low image noise and restores fine details. It also features high circuit integration, lower power consumption and cost, making it ideal for high-definition imaging in static and low-speed scenarios.

- This is a stacked CMOS image sensor. The optimized pixel stacking structure shortens the distance between on-chip microlenses and photosensitive elements, greatly improving light collection efficiency. It also effectively reduces crosstalk between pixels, suppresses color artifacts and noise in images, and significantly enhances color reproduction. The imaging quality in low-light environments is specially optimized, delivering purer images and clearer details in dim conditions.

- It boasts high integration and a compact structure. Complete imaging functions can be realized without additional complex auxiliary circuits, which greatly simplifies the module structure, reduces module size and power consumption, and meets the design requirements of slim and low-power devices. Meanwhile, it offers excellent compatibility with stable data transmission and low latency.

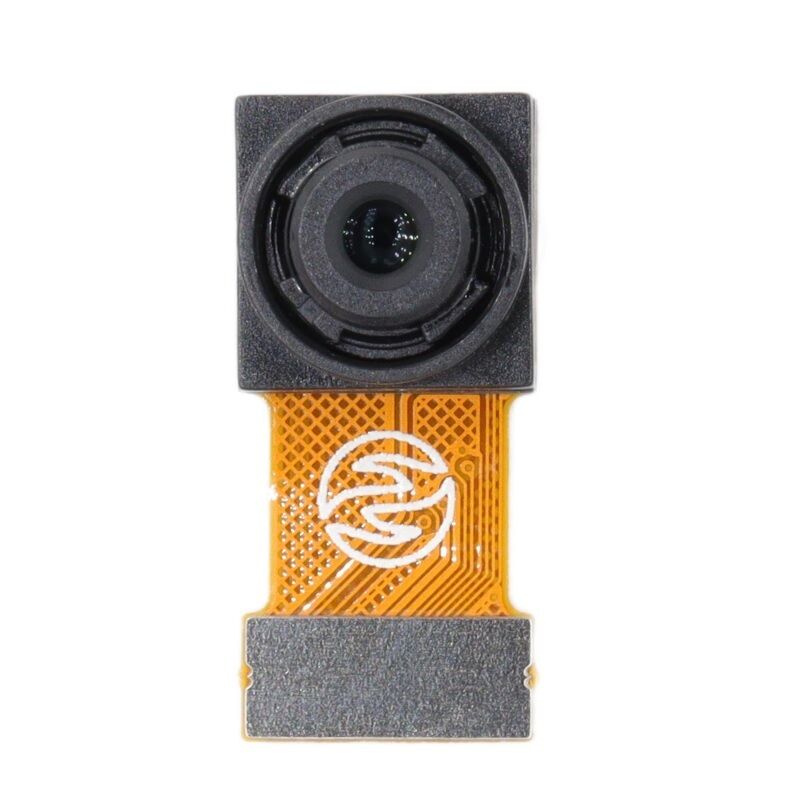

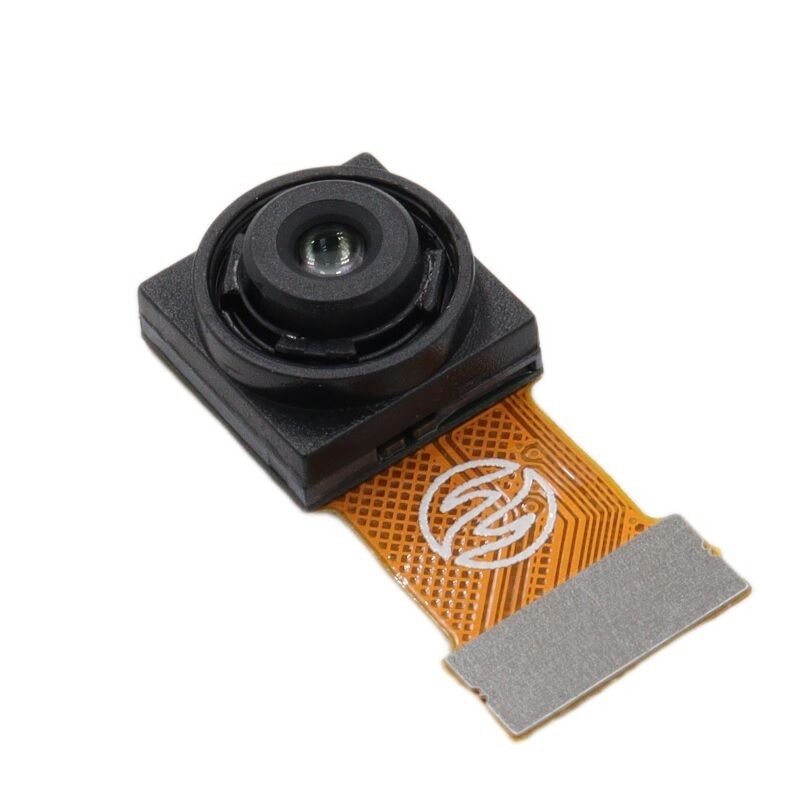

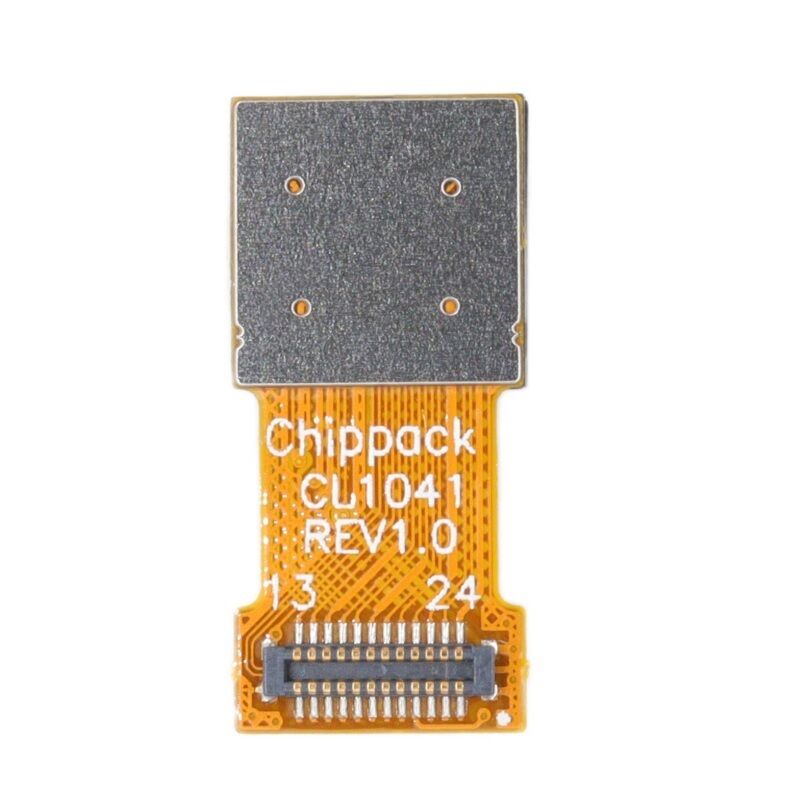

- IMX214 Camera Module: Compatible with standard modules equipped with lenses of different viewing angles such as 77°, to meet diverse customer demands.

3. Application Fields:

It is applied in biometric recognition, drones, smart home, IoT devices, machine vision, barcode scanning, factory automation and other fields.

4. Personalized Customization Service:

Custom modules can be produced according to customer requirements to deliver tailor-made products.
