GC5035 5MP MIPI Camera Sensor 2592x1944 74 Perspective Rolling Shutter for Biometrics QR Code Scanning

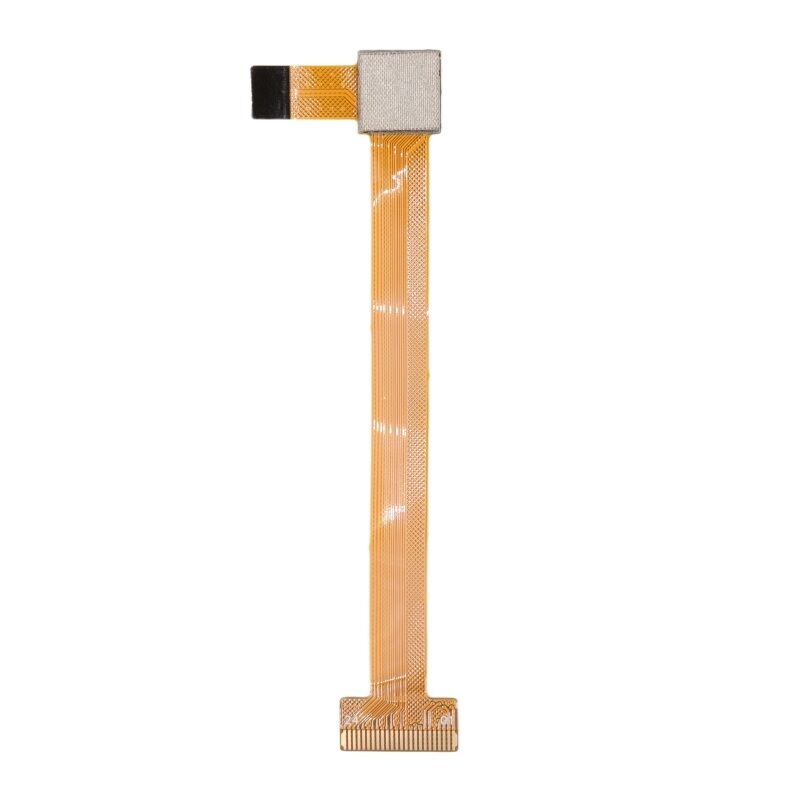

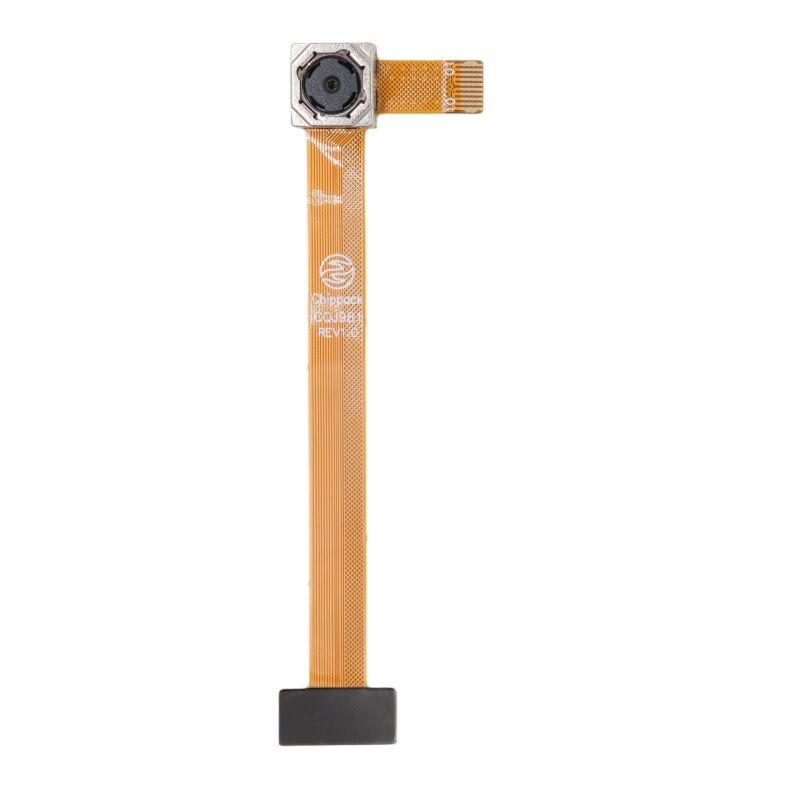

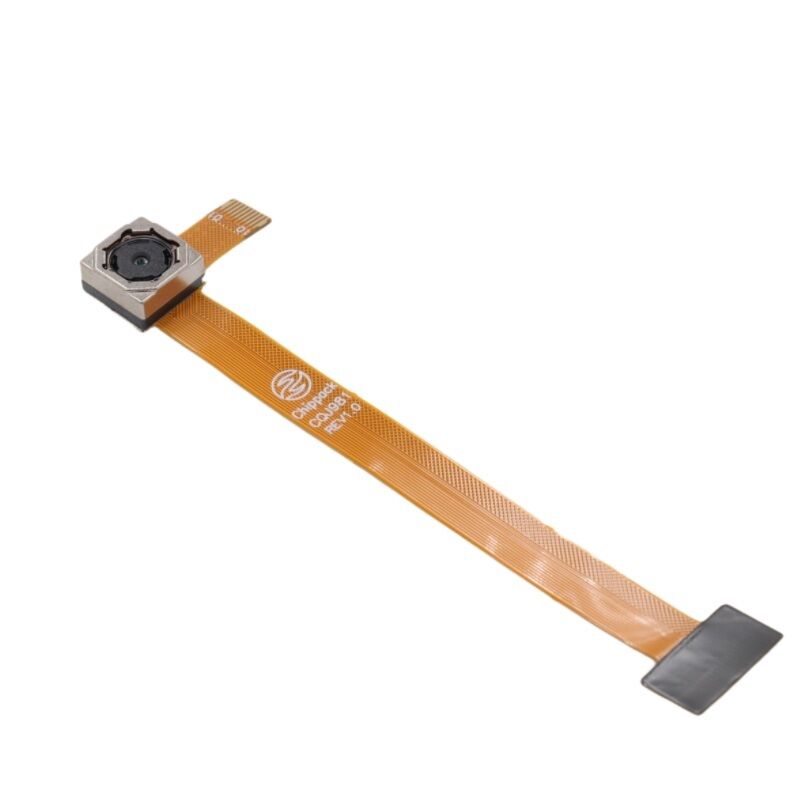

5 MP RGB Rolling Shutter 74 Perspective MIPI Camera Module With GC5035 Sensor , Customization Services Available .

1. Basic Parameters:

- Resolution: 2592(H)×1944(V), 5MP. It supports high-definition video output at 30fps under full resolution, and is compatible with two data output formats including RAW8 and RAW10, meeting the decoding requirements of various back-end image processing chips.

- Pixel Size: 1.12μm(H)×1.12μm(V). Adopting Back Side Illumination (BSI) technology, the compact pixel design effectively reduces the overall package size of the sensor while ensuring sufficient light intake, striking a balance between miniaturization and basic low-light imaging performance.

- Optical Format: 1/5 inch. It is compatible with mainstream compact lens solutions with great lens matching flexibility, and can be flexibly assembled with lenses to fit the design of various slim camera modules.

- Supply Voltage: The core voltage is 1.2V, the interface voltage is 2.8V, and the analog voltage is 2.8V. The sensor can operate stably under various voltage conditions to ensure high reliability.

- Temperature Range: The operating temperature ranges from -20℃ to 70℃. The wide operating temperature range enables it to adapt to diverse working environments.

2. Technical Features:

- Rolling Shutter Technology: Featuring a line-by-line exposure rolling shutter design, it delivers low imaging noise and exquisite detail restoration. With high circuit integration, it achieves better power consumption and cost performance, making it ideal for high-definition imaging in static and low-speed scenarios.

- It is equipped with a built-in 10-bit high-precision on-chip ADC (Analog-to-Digital Converter), with a dynamic range of 64.7dB and a signal-to-noise ratio of 37dB. It can clearly restore light and dark details of images and prevent overexposure under strong light and total darkness in low-light areas. Combined with a dedicated image processing module, it natively optimizes image color and contrast, and can output high-quality raw images without an external ISP.

- It supports horizontal/vertical image flipping and pixel binning mode, which can lower the resolution to increase the frame rate as required. It also features 4K OTP (One-Time Programmable) memory, where calibration parameters and white balance parameters can be pre-written to simplify complex operation procedures.

- GC5035 Camera Module: Compatible with standard modules equipped with lenses of different specifications such as 74°, to satisfy diverse customer demands.

3. Application Fields:

It is widely applied in biometric recognition, drones, smart home devices, IoT devices, machine vision, barcode scanning, factory automation and other fields.

4. Personalized Customization Service:

Custom modules can be produced in a tailored manner according to customer requirements to create exclusive products that fully meet personalized demands.
