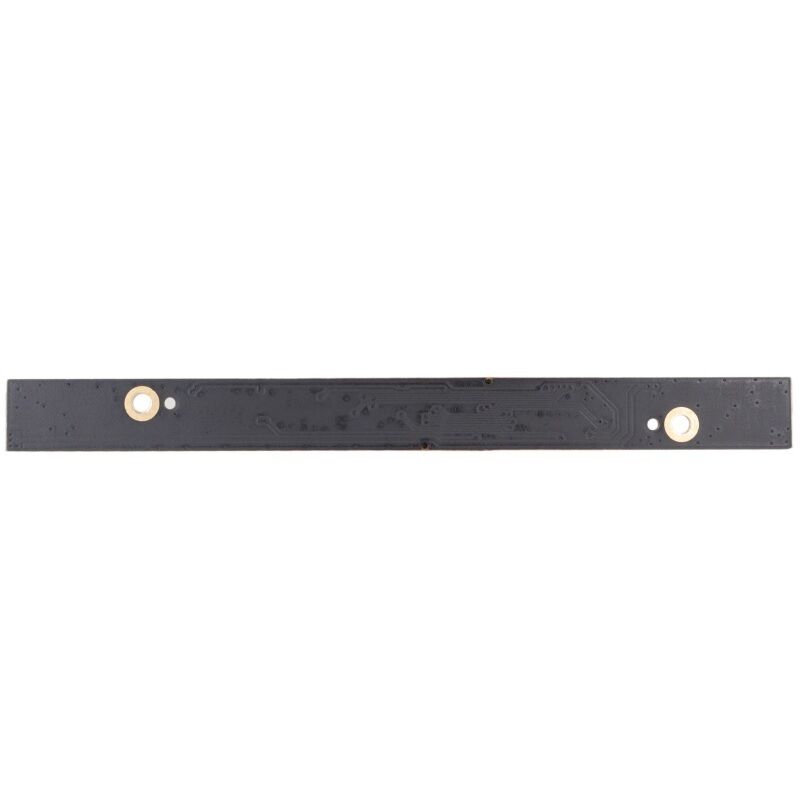

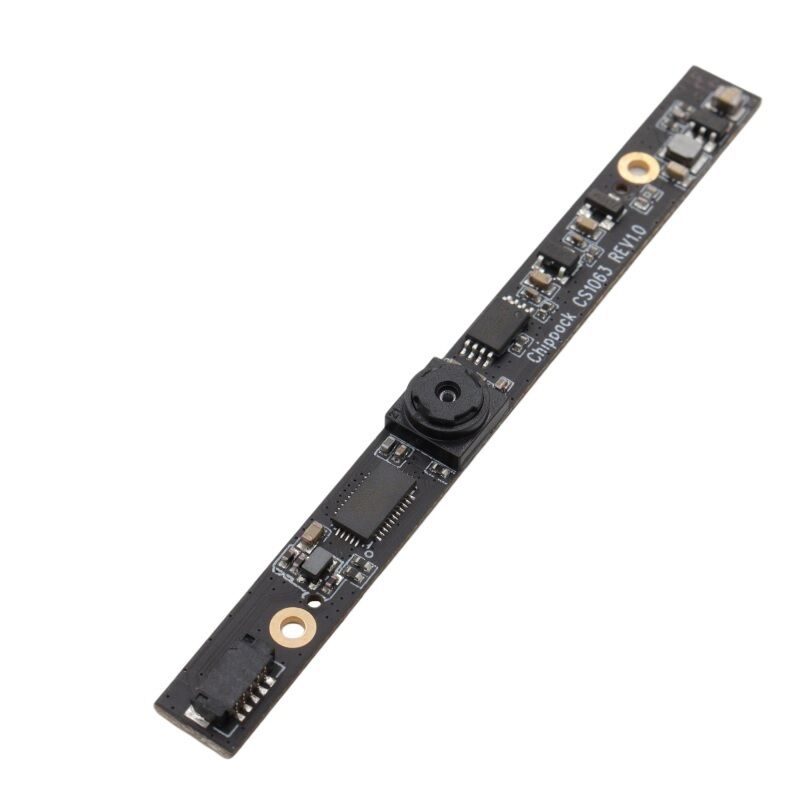

64 Perspective USB 2.0 Camera Module 1MP RGB Rolling Shutter With OV9726 Sensor

1 MP RGB Rolling Shutter 64 Perspective USB 2.0 Camera Module With OV9726 Sensor , Customization Services Available .

1. Basic Parameters:

- Resolution: 1296 (H) × 808 (V), 1MP. It is compatible with multiple low-resolution sub-modes, suitable for device scenarios with different frame rate and bandwidth requirements.

- Pixel Size: 1.75µm (H) × 1.75µm (V). The compact pixel size reduces the overall volume of the sensor while ensuring the light intake of each pixel, striking a balance between module miniaturization and imaging quality.

- Optical Format: 1/6.5 inch. This ultra-small optical format enables an extremely slim module design when paired with ultra-thin lenses, fitting the limited installation space of various miniature embedded devices.

- Supply Voltage: The operating voltage is 5V. It operates stably under proper voltage conditions to guarantee the reliability of the sensor.

- Temperature Range: The operating temperature ranges from -10℃ to 60℃. With a wide operating temperature range, it can adapt to diverse working environments.

2. Technical Features:

- Rolling Shutter Technology: Adopting a line-by-line exposure rolling shutter design, it delivers low imaging noise and exquisite detail restoration. Featuring high circuit integration, it boasts lower power consumption and cost, ideal for high-definition imaging in static and low-speed scenarios.

- Equipped with OmniBSI™ Backside Illumination pixel technology, it eliminates the light-blocking issue caused by metal circuits in traditional front-illuminated sensors. Light directly reaches the photosensitive layer, achieving a low-light sensitivity of 1300mV/lux-sec. It produces bright images with excellent noise reduction in dim environments and can capture clear video without additional fill lights. This technology effectively reduces crosstalk between pixels and ensures high color reproduction. The captured images present authentic and vivid colors without color deviation or artifacts, meeting the image quality requirements for daily high-definition video recording and barcode recognition.

- Designed for low power consumption, it greatly cuts down the overall power consumption of devices and extends the battery life of portable equipment. Built-in hardware automatic sleep and wake-up mechanisms support dynamic power adjustment. It automatically reduces power consumption during idle periods, optimizing both user experience and energy efficiency.

- OV9726 Camera Module: Compatible with standard modules equipped with lenses of different angles such as 64° to meet diverse customer demands.

3. Application Fields:

It is widely applied in biometric recognition, drones, smart home devices, IoT devices, machine vision, barcode scanning, factory automation and other fields.

4. Personalized Customization Services:

Custom modules can be produced according to customer requirements to deliver tailor-made products.
