OV9281 1MP MONO Global Shutter MIPI Camera Sensor 49 Perspective 1296x816 for Machine Vision

1 MP MONO Global Shutter 49 Perspective MIPI Camera Module With OV9281 Sensor , Customization Services Available .

1. Basic Parameters:

- Resolution: 1296 (H) × 816 (V), 1MP. It supports multiple cropping resolutions and delivers outstanding high-speed capture performance.

- Pixel Size: 3.0μm (H) × 3.0μm (V). Equipped with self-developed photosensitive technology, it significantly boosts photosensitivity, especially enhancing near-infrared light sensing capability. It produces images with less noise and purer picture quality in low-light environments.

- Optical Format: 1/4 inch. It features strong lens compatibility and a compact overall module size, facilitating integration into embedded devices.

- Supply Voltage: Core voltage 1.2V, interface voltage 1.8V, analog voltage 2.8V. It can operate stably under various voltage conditions to ensure sensor reliability.

- Temperature Range: Operating temperature ranges from -30℃ to 85℃. The wide operating temperature range enables it to adapt to diverse working environments.

2. Technical Features:

- Global Shutter Technology: The global shutter design effectively eliminates motion blur and lighting artifacts while lowering power consumption requirements for illumination.

- Adopts exclusive OmniPixel®3-GS global shutter pixel technology. All pixels perform synchronous exposure and readout, enabling perfect capture of fast-moving objects without rolling shutter distortion or motion blur. Featuring a native monochrome imaging design without Bayer color filters, it further improves light sensitivity and near-infrared response, greatly enhancing image clarity in night scenarios with no supplementary light or infrared fill light.

- Integrated Automatic Black Level Calibration (ABLC) and dynamic dead pixel correction functions to automatically repair dead pixels and ensure uniform and consistent imaging. It supports programmable functions including image mirroring, flipping, window cropping and pixel binning. Fast inter-frame mode switching and Region of Interest (ROI) capture are available, allowing dynamic adjustment of frame rate and imaging frame size to balance high-speed capture and low-power operation, suitable for scenarios requiring dynamic switching between multiple working conditions.

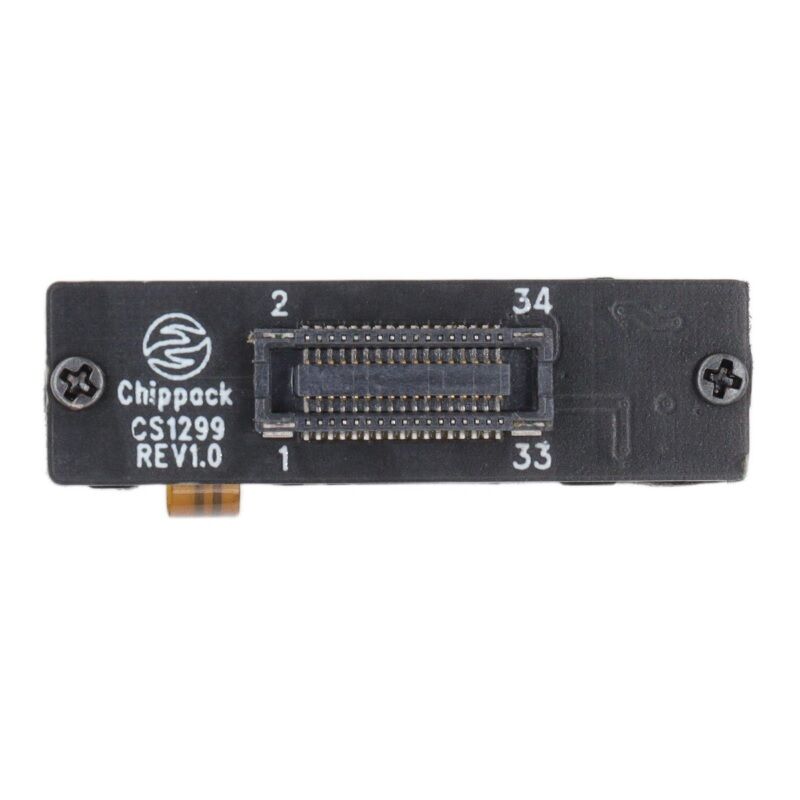

- OV9281 Camera Module: Compatible with standard modules equipped with various lenses such as 49° field-of-view lenses to meet diverse customer requirements.

3. Application Fields:

It is applied in virtual reality/augmented reality, biometric identification, drones, smart home, IoT devices, 3D imaging, machine vision, barcode scanning, factory automation and other fields.

4. Personalized Customization Services:

Custom modules can be produced on demand according to customer requirements, delivering tailor-made products that match clients' specific needs.
