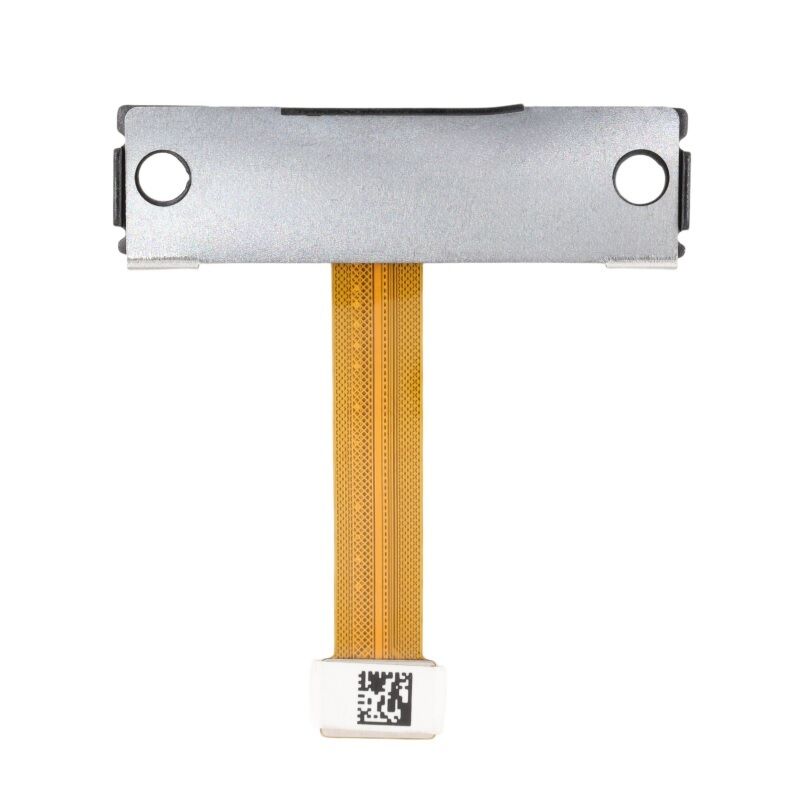

MONO Global Shutter Camera Module 81 Degree View SC031GS 0.3 MP For Machine Vision

MONO Global Shutter Camera Module 81 Degree View SC031GS 0.3 MP For Machine Vision

SC031GS Camera Module

Global Shutter Camera Module 0.3 MP

81 Degree View Camera Module

Brand Name:

Chippack

Model Number:

SC031GS

Chat Now
Request A Quote
Product Details
Sensor Type:
SC031GS
Sensor Brand:
SmartSens
Active Array Size:
640*480
Pixel Size:
3.744 Micron*3.744 Micron
Optical Format:
1/6 Inches
Power:
Power Supply Voltage:2.8V/1.8V/1.5V
Operating Temperature:
-40℃ To 85℃
Shutter:
GS
Color:
MONO
Focus Mode:
Fixed Focus
Max Frame Rates:
240fps
Data Interface:
MIPI 1/2 Lane/DVP/LVDS
Camera Size:
Supports Rapid Sample Customization
FOV:
DFOV:20°-180°(Optional Or Customized)
IR Filter:
Clear/650nm/850nm/940nm(Optional Or Customized)
Highlight:

SC031GS Camera Module

,

Global Shutter Camera Module 0.3 MP

,

81 Degree View Camera Module

Payment & Shipping Terms
Product Description

0.3 MP MONO Global 81 - Degree View Shutter Camera Module SC031GS Sensor For Machine Vision , Customization Services Available .



1. Basic Parameters:

- Resolution: 640(H)×480(V), 0.3MP. The image aspect ratio matches the framing specifications of mainstream machine vision equipment.

- Pixel Size: 3.744μm(H)×3.744μm(V). Adopting backside illuminated (BSI) pixel technology to boost light sensitivity and signal-to-noise ratio, balancing compact pixel size and low-light imaging performance.

- Optical Format: 1/6 inch. Its tiny target surface fits miniature lens structures, facilitating miniaturized module integration for compact embedded devices.

- Supply Voltage: Core voltage 1.5V, interface voltage 1.8V, analog voltage 2.8V. It operates stably under various voltage conditions to guarantee sensor reliability.

- Temperature Range: Operating temperature ranges from -40℃ to 85℃. The wide operating temperature range enables adaptation to diverse working environments.



2. Technical Features:

- Global Shutter Technology: The global shutter design effectively eliminates motion blur and illumination artifacts while cutting power consumption for lighting.

- Equipped with a BSI global shutter architecture that enables simultaneous exposure and readout of the entire frame, differing from the row-by-row scanning mode of rolling shutters. It produces no jelly effect or image stretching distortion when capturing fast-moving objects, making it ideal for snapshot scenarios of high-speed moving targets. It features a native monochrome imaging design without Bayer color filters, drastically increasing light intake. It delivers far clearer low-light images than color image sensors of the same specification and reduces computing power consumption for image processing.

- Built-in hardware HDR wide dynamic range algorithm. When HDR mode is activated, it delivers stable imaging by balancing overexposed bright areas and underexposed dark shadows, suitable for complex lighting scenes with stark light-dark contrast. Optimized pixel readout circuits reduce inherent image noise, delivering clean raw high-quality images without complex post-processing noise reduction algorithms.

- SC031GS Camera Module: Compatible with standard modules fitted with various lenses including the 81° lens to meet diverse customer requirements.



3. Application Fields:

Applicable to virtual reality/augmented reality, biometric identification, unmanned aerial vehicles, smart home appliances, IoT devices, 3D imaging, machine vision, barcode scanning, factory automation and other fields.



4. Personalized Customization Service:

Custom modules can be produced on demand to create tailor-made products that satisfy customers’ specific requirements.
