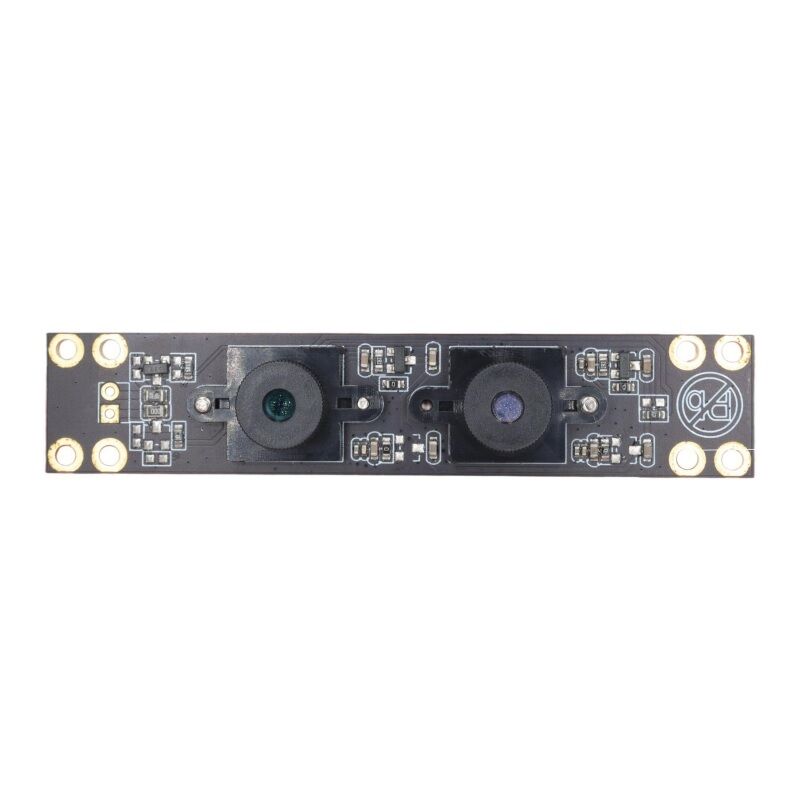

SOI JX - H63 Rolling Shutter RGB Camera Module 1288x728 For Biometric Identification

SOI JX-H63 RGB Rolling Shutter Camera Module , Machine Vision , Biometrics , QR Code , Customization Services Available .

1. Basic Parameters:

- Resolution: 1288(H)×728(V), 1MP, balancing high-definition display and fluency to meet image acquisition requirements in different scenarios.

- Pixel Size: 2.8μm(H)×2.8μm(V), equipped with a color filter array, which can effectively increase light intake, optimize imaging effects, and enhance the detail expression of images.

- Optical Format: 1/2.7 inch, adopting an electronic rolling shutter design, compatible with various optical lenses to improve product compatibility.

- Supply Voltage: Core voltage 1.5V, interface voltage 1.8V, analog voltage 2.8V, enabling stable operation under different voltage conditions and ensuring sensor reliability.

- Temperature Range: Operating temperature from -30℃ to 85℃, featuring a wide operating temperature range to adapt to diverse working environments.

2. Technical Features:

- Rolling Shutter Technology: Adopting a progressive-exposure rolling shutter design with low imaging noise, delicate detail restoration, high circuit integration, and optimized power consumption and cost, suitable for high-definition imaging in static and low-speed scenarios.

- Built-in on-chip 10-bit ADC (Analog-to-Digital Converter), programmable gain control (PGA), and correlated double sampling (CDS) technology, which can significantly reduce fixed pattern noise (FPN) and improve image purity; meanwhile, it boasts a raw data sensitivity of 3300mv/ux·sec and a dynamic range of 79dB@8x, with high low-light sensitivity and low dark current, delivering clear and delicate images even in weak-light environments.

- Adopting a high-quality chip architecture with stable power supply and controllable power consumption; the wide-temperature operation design adapts to complex environments, while featuring strong anti-interference capability, enabling long-term stable operation, reducing equipment failure probability, and extending product service life. Equipped with various standard programmable and automatic functions, it can flexibly adjust frame rate, image parameters, etc., according to actual application scenarios, meeting personalized imaging needs in different scenarios and enhancing product adaptability and practicality.

- JX-H63 Camera Module: Compatible with standard modules configured with different lenses such as 73° to meet diverse customer needs.

3. Application Fields:

Applied in biometric identification, unmanned aerial vehicles, smart home, Internet of Things devices, machine vision, barcode scanning, factory automation, and other fields.

4. Personalized Customization Services:

Custom modules can be produced in a customized manner according to customer needs, providing tailor-made products that meet their requirements.
